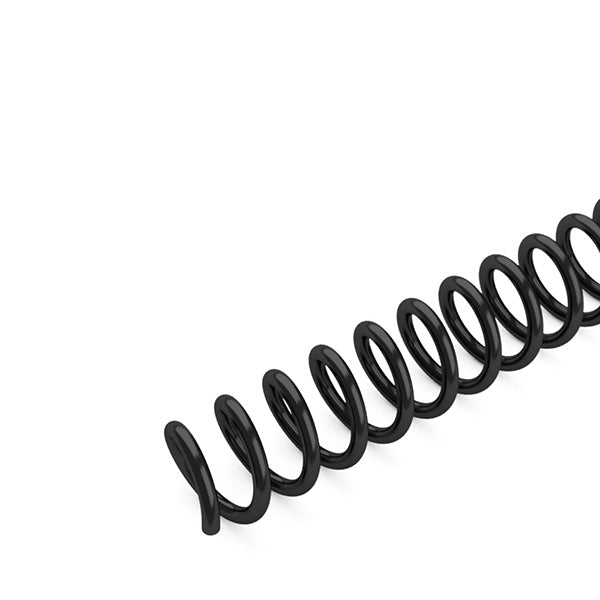

10mm Spiral Binding Coils

A 10 mm coil commonly holds around 75 sheets of standard 20-pound paper, but the finished thickness should guide the decision. Covers, tabs, coated sheets, photographs, and heavier paper reduce the number of sheets that will fit. Measure the complete stack without compressing it, then choose a coil that provides enough clearance for easy turning. A coil that is too small can make the document difficult to open and may pull at the punched holes. A coil that is too large can look loose and allow the contents to shift. Leave a practical margin rather than filling the coil to its absolute limit. Produce one finished sample using the actual covers and inserts before ordering a large quantity.

Pitch determines how closely the holes are spaced along the binding edge. Four-to-one pitch uses four holes per inch and is a common standard for plastic spiral coil binding. The punch, coil, and any pre-punched materials must all use the same pitch. Diameter controls document thickness, while pitch controls hole spacing, so both specifications are required. Related 4:1 spiral coil binding supplies help keep coils, covers, and equipment within the same system. Never assume that a coil fits because its diameter appears correct. Count the holes over a measured inch or confirm the machine specification. A mismatch can damage the punched edge and make insertion impossible.

A 12-inch coil is commonly used for an 11-inch binding edge because the extra length provides room for insertion and final crimping. After the coil is threaded through the document, each end is trimmed so a small amount remains beyond the first and last hole. The ends are then crimped inward to prevent the coil from unwinding. Do not cut the coil exactly flush before crimping, because there may not be enough material to form a secure stop. For shorter or longer formats, coil length can be cut to suit the binding edge, provided the pitch and diameter remain correct. Consistent trimming improves appearance and reduces sharp or protruding ends.

Coil crimping pliers are the key finishing tool because they cut the excess coil and bend each end inward in one action. This keeps the coil from rotating out of the punched holes. Fine-tip crimpers can be easier to position on smaller diameters such as 10 mm. An electric inserter may speed repeated work, while a manual roller or careful hand insertion can suit occasional use. The available coil binding accessories include crimpers and other tools that support a consistent finish. Practice on a spare coil to learn the correct tool orientation, since crimping in the wrong direction can leave the end pointing outward or fail to lock the coil.
