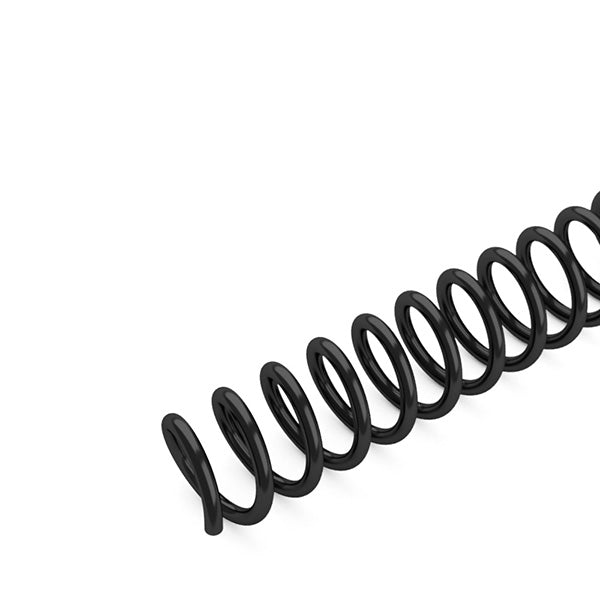

11mm Spiral Binding Coils

Pitch describes how closely the coil turns and punched holes are spaced. An 11mm coil with 4:1 pitch is designed for a pattern of four holes per inch. It will not align with a 5:1 pattern, even though the coil diameter is correct. Confirm pitch from the machine label, manual, or a test-punched sheet before ordering. You can also measure the distance between hole centers or count the holes along a known edge length. Hole shape alone is not enough because round and oval holes can both be used in coil binding. There is no reliable way to force mismatched coil through the document without damaging the holes. Diameter controls capacity, while pitch controls compatibility, and both decisions must be correct.

A machine must first punch the matching pitch. For frequent work, an electric roller can help feed the coil through the punched stack more quickly than fully manual insertion. The options among coil binding machines vary in punch capacity, electric insertion support, disengageable dies, and document width. Choose according to the typical workload and sheet size rather than coil diameter alone. Good hole alignment is essential because even a properly sized coil can bind during insertion when punching shifts between batches. Keep the paper guide fixed, jog the stack evenly, and avoid overloading the punch. For occasional thin documents, hand insertion may be adequate, but repeated production benefits from a stable roller and consistent setup.

Yes. A coil is normally supplied slightly longer than the punched binding edge so both ends can be trimmed and crimped after insertion. That extra length gives the operator room to finish each end without leaving the coil short. Center the coil so a similar amount extends beyond the top and bottom, then trim and crimp both ends according to the tool instructions. Do not cut it flush before crimping because the bent ends help prevent the coil from rotating out of the document. For custom edge lengths, confirm the supplied coil provides enough finishing allowance. Coil length and coil diameter solve different problems: length must cover the binding edge, while diameter must accommodate the document thickness.

Crimpers cut the excess plastic and bend each coil end inward. This finished shape prevents the spiral from turning its way out of the punched holes during use. Ordinary scissors may cut the plastic, but they do not form the inward bend consistently and can leave a sharp or loose end. Hand tools suit occasional work, while powered options can improve consistency on repeated jobs. The range of coil binding crimpers supports secure finishing after the coil has been centered. Use the correct hand orientation for each end so both crimps turn inward toward the document. A clean crimp improves safety, appearance, and binding durability without changing the coil’s capacity.
