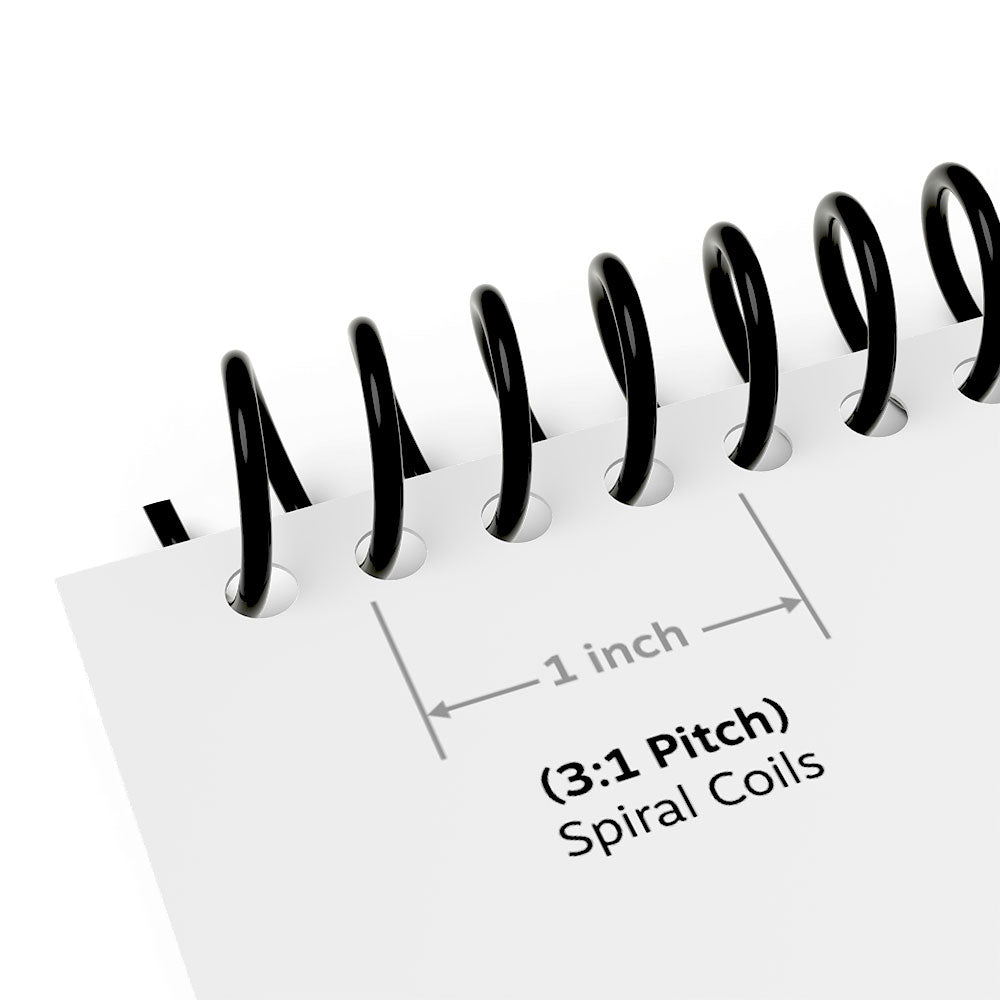

3:1 Spiral Coil Binding Supplies

Measure the complete document at the binding edge with covers, tabs, and inserts included. The coil diameter should be slightly larger than the finished stack so the sheets turn smoothly without excessive space around the spine. Sheet count charts are only estimates because paper weight, coatings, dividers, and cover material change the actual thickness. A sample bind using the thickest intended document gives the most dependable fit. If the holes pull toward the coil or the document resists opening, the diameter is too small. If the contents shift noticeably and the spine looks oversized, a smaller diameter may be better. Keep pitch and diameter as separate decisions because the right diameter cannot correct an incompatible punch pattern.

The punch must support the exact 3:1 coil pattern and create holes shaped for smooth coil insertion. Suitable coil binding machines may include interchangeable dies, disengageable pins, open punching throats, or powered inserters, but the precise die specification remains the first requirement. An open throat is useful for longer documents, while disengageable pins help prevent partial holes near unusual sheet edges. An inserter can speed production, though it does not replace accurate punching or end crimping. Confirm the punching capacity separately for paper and heavy covers, since covers may need smaller batches. Produce one complete sample to verify hole alignment, edge margin, insertion speed, and finished movement before processing a large run.

Coil length follows the punched binding edge rather than the document thickness. A supply intended for an 11 inch edge normally includes a little extra material so both ends can be trimmed and crimped. Shorter documents may use a coil cut to length, while legal or oversized work requires a longer coil that passes through every hole. Place the uncut coil beside a punched sample and allow enough extension beyond the first and last holes for secure finishing. Excessive overhang wastes material and can leave rough ends, while insufficient length may leave holes unsupported. Confirm the document orientation before punching because changing from a long-edge to a short-edge bind changes the required coil length even when the paper size stays the same.

After threading the coil, both ends must be trimmed and crimped so the supply cannot rotate out of the holes. The tools grouped with spiral coil accessories support insertion, cutting, and end finishing. Because wider pitch coils can require a longer finished bend than common 4:1 supplies, use crimpers designed for the pitch and diameter being processed. Leave enough material beyond the final hole to form a full stop, then bend each flattened end toward the document. Test the result by gently rotating the coil backward from both sides. Secure crimps should resist movement without catching on the covers. An electric inserter speeds threading but does not eliminate the need to finish both ends correctly.
