3/8" Wire-O Binding Supplies

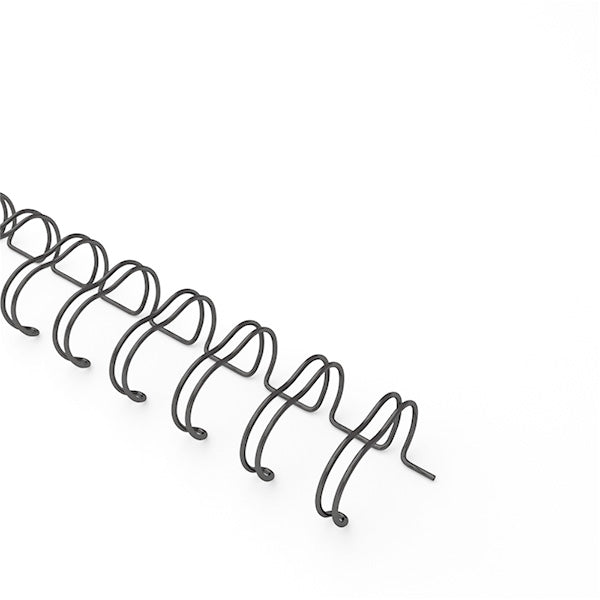

The 3/8 inch measurement describes the wire diameter, not the hole spacing. Binding wire can be made in different pitches, including 3:1 and 2:1, and those formats are not interchangeable. A 3:1 wire requires three holes per inch, while a 2:1 wire requires two. Confirm the pitch from the punch label, die, manual, or a test sheet before ordering. Count the holes across a measured inch and examine the hole shape if the equipment information is unavailable. The correct diameter with the wrong pitch will not fit the document. Establish pitch first, then select the diameter from the finished stack thickness and the length from the binding edge.

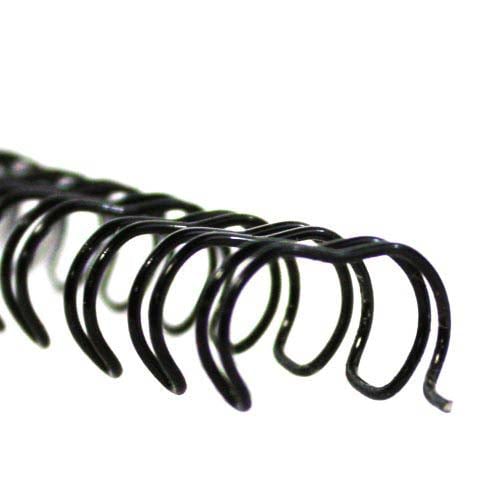

The 3:1 wire pre-punched paper can reduce production time when repeated documents use the same sheet size, hole pattern, and binding edge. It must match the intended 3:1 Wire-O supply, including hole count and shape. Printing equipment also needs to feed the punched stock consistently without catching or changing orientation during duplex work. Run a small test to confirm registration, inner margins, and feed direction before committing to a large print run. Covers, tabs, or specialty inserts may still need separate punching. Pre-punched stock is less practical when documents frequently change size or orientation, but it can provide consistent alignment in a stable recurring workflow.

Set the closer for the exact 3/8 inch diameter, then close a short sample before binding the full document. The loops should form even circles with the seam nearly touching but not overlapping or flattening. An under-closed wire can allow sheets to escape, while excessive pressure distorts the spine and makes turning difficult. Keep the document centered so the closer applies equal pressure across the binding edge. When moving from another diameter, reset the machine rather than relying on the previous adjustment. Place the back cover over the front cover before inserting the wire so the finished seam can be hidden inside after closing. Inspect both ends and the middle of the spine because uneven closure can indicate misalignment or an incorrect setting.

Choose covers that provide the needed protection without consuming too much of the wire capacity. A clear plastic front with a flexible paper or poly back often works well for reports, manuals, and presentation materials. The range of binding covers includes different materials and weights that can be matched to the document’s handling needs. Rigid or unusually thick covers may reduce the number of internal sheets and can require separate punching. Assemble the covers with the complete contents before selecting the wire diameter. After closing, the covers should turn freely without pulling against the loops. If the document feels compressed, a larger wire may be needed even when the sheet count appears to fit.
