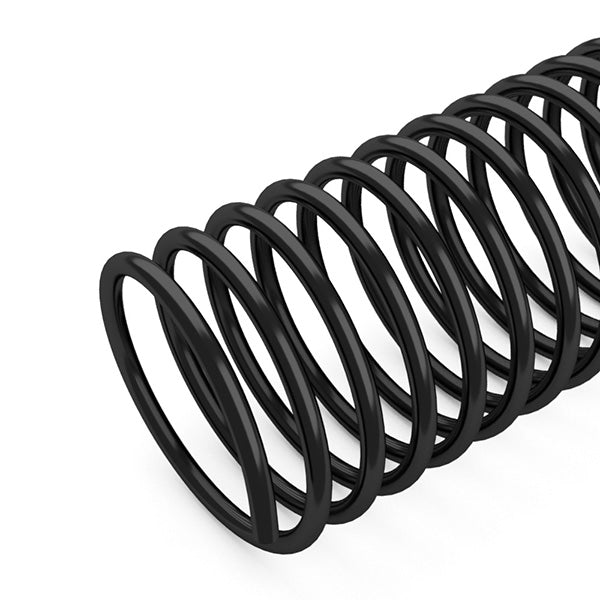

30mm Spiral Binding Coils

Yes. Thick covers, divider stock, folded inserts, and heavier interior paper can move a document beyond the comfortable capacity of a 30mm coil even when the interior sheet count seems suitable. Assemble the exact materials planned for the finished job and measure them together at the binding edge. A coil that is too tight can make the document hard to open, strain the punched holes, and prevent full rotation. A coil that is too loose can let the contents shift and make the spine look oversized. When the stack falls close to the limit, test the next diameter as well. The better fit is the one that gives controlled movement without compressing the document.

Large coil-bound documents benefit from equipment that keeps punching and insertion consistent across a heavy stack. Electric coil binding machines can reduce operator effort by providing powered punching, an insertion roller, or both, depending on the design. Confirm that the machine produces the required 4:1 pattern, accepts the document width, and can handle the materials being punched. Thick covers should usually be processed separately from interior sheets. Even with a powered roller, feed the first few coil turns by hand so the spiral enters the holes correctly. Support the document during insertion so its weight does not pull the punched edge out of alignment or cause the coil to bind halfway through.

Diameter, pitch, and length must all match different parts of the job. The 30mm diameter controls how much document thickness the coil can accommodate. A 4:1 pitch means the coil turns must align with a four-holes-per-inch punch pattern. The standard 12-inch length is intended to cover an 11-inch binding edge while leaving material at both ends for trimming and crimping. A correct diameter cannot make up for a mismatched pitch, and the right pitch will not solve a coil that is too short for the binding edge. Confirm all three measurements before ordering, especially when using custom sheet sizes or equipment with an unfamiliar punch pattern.

After insertion, both ends must be trimmed and bent inward so the coil cannot rotate out of the document. Coil binding crimpers perform both steps in one motion and create a safer, cleaner finish than scissors. Center the coil first so a similar amount extends beyond the top and bottom. Use the crimper in the correct orientation at each end, since the bend should face inward toward the document. Leave enough space between the crimp and the first punched hole for free movement. For repeated production, powered crimping equipment may improve speed and consistency, while hand crimpers are practical for occasional jobs. Practice on spare coil before finishing the full run.
