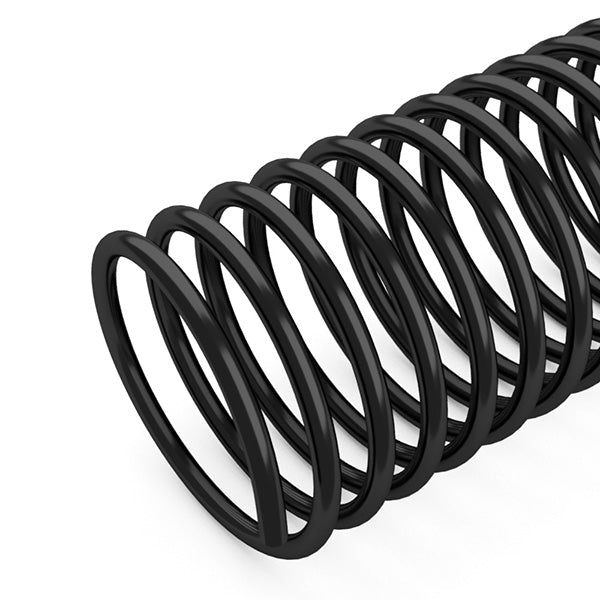

32mm Spiral Binding Coils

Move to 32mm when a 30mm coil leaves the document compressed, makes turning difficult, or places visible tension around the punched edge. The difference in stated capacity is modest, so the decision should come from the assembled document rather than a rough sheet estimate. Include both covers, all dividers, and the heaviest version of any insert. Test the document upright and fully folded back if that movement is part of normal use. The larger diameter should improve movement without making the contents feel loose. When both sizes appear workable, choose the one that maintains clean turning and a proportionate spine after the document has been handled several times.

The main requirements are a matching punch pattern, enough working width, and reliable handling of thick stacks. Coil binding machines vary in punch capacity, electric insertion support, disengageable dies, and edge-depth controls. A powered roller can help feed a 32mm coil, but it will not correct holes that shift between punching lifts. Lock the paper guide, process consistent quantities, and punch rigid covers separately. Insert the first turns manually, then support the weight of the document as the roller advances the coil. For custom lengths, disengageable dies can prevent half holes near the edge. Equipment should be chosen around the full production routine, not the coil diameter alone.

A standard 12-inch coil is generally suitable for an 11-inch binding edge because the extra length is needed for finishing. Center the spiral so both ends extend beyond the document, then trim and crimp them after insertion. The length does not indicate capacity; the 32mm diameter handles thickness, while the 12-inch measurement handles the binding edge. If the document is bound along an edge longer than 11 inches, a longer coil or a different production method may be required. Confirm the actual punched edge after trimming and orientation decisions are complete. Using a coil that is too short leaves insufficient material for secure crimps and may expose the outer holes.

Thick documents are easier to finish when the stack stays aligned and the coil ends are secured consistently. Spiral coil accessories include crimpers, sleeves, binding sticks, and other tools that support insertion and finishing. A sleeve or spine-forming aid can help organize the punched edge before the coil is fed through it. Crimpers remain essential because both ends must be cut and bent inward after centering. Binding sticks can keep repeated jobs separated and reduce handling errors. Select accessories according to document thickness, daily volume, and whether insertion is manual or powered. These tools improve control, but they cannot correct the wrong pitch, poor punching alignment, or an unsuitable coil diameter.
