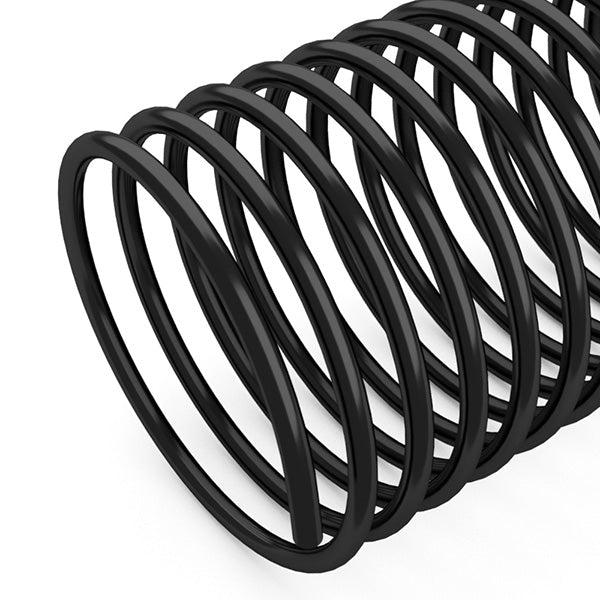

42mm Spiral Binding Coils

The machine must match the coil pitch, punch the required sheet width, and provide enough depth control for a thick document. Punch capacity refers to the number of sheets that can be processed in one lift, not the total document size, so a large manual will usually require several consistent lifts. An inserter must also have enough clearance and roller control for a wide diameter coil. If covers are thicker than ordinary paper, punch them separately and stay within the stated cover capacity. Disengageable dies are helpful for nonstandard sheet lengths because they prevent partial holes near the edge. A machine that punches cleanly and keeps every lift aligned is more important than one that simply claims a high sheet capacity.

The coil should be slightly larger than the compressed document thickness so sheets can rotate without rubbing against the spine. Too little clearance makes the document stiff, increases stress around the holes, and can make insertion difficult. Too much clearance allows the text block to move loosely and can make the finished work feel oversized. The spiral coil supplies by size group diameters for different stack thicknesses, but a physical measurement is more reliable than sheet count. Compress the complete stack gently with the final covers included, measure the binding edge, and choose a diameter that provides modest breathing room. Test the thickest version of the document if several editions will use the same supplies.

Manual insertion is possible, but it becomes slower and harder to control as coil diameter and document weight increase. Begin by turning the first few loops through the punched holes by hand, then support the document so the binding edge remains straight. If the coil catches, do not force it, because stretching the spine can create uneven spacing and make the final crimp unreliable. A powered inserter is more practical for recurring thick manuals, especially when several copies must be completed in one session. Regardless of the method, the punched holes need to be clean and aligned across every lift. For recurring work, prepunched paper for binding can provide consistent spacing when its pattern matches the coil pitch. Leave enough coil beyond both ends for crimping, then secure each end so the spine cannot unwind during use.

Prepunched stock can remove the most repetitive step from a large binding job and keep hole placement consistent across hundreds of sheets. It is especially useful when the same paper size, weight, and pitch are used for recurring manuals. The paper's hole pattern must match the 42mm coil and the covers, so confirm the hole count and spacing before ordering. Printing orientation also matters because the punched edge must enter the printer correctly and remain on the intended binding side. Run a small test through the printer to confirm feeding, image position, and duplex orientation. Covers, divider tabs, and special inserts may still need separate punching with the same alignment.
