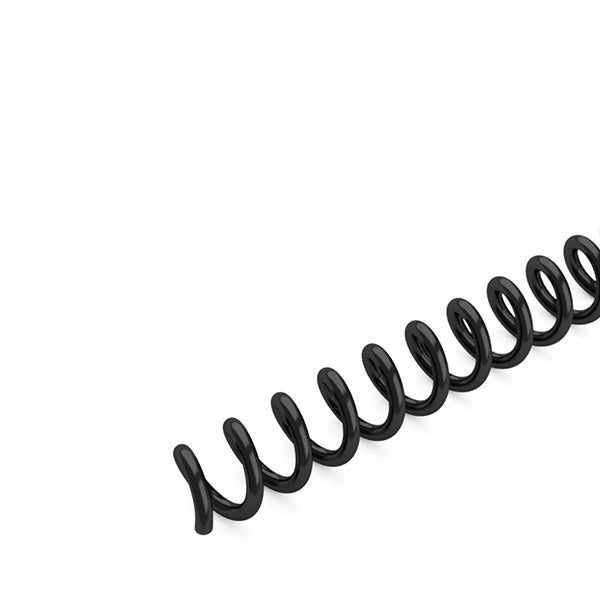

7mm Spiral Binding Coils

The 7mm coils in this category use a 4:1 pitch, meaning the punched pattern has four holes per inch. The document and coil must use the same pitch because 4:1 and 5:1 spacing are not interchangeable. Additional diameters and colors must still use the required 4:1 hole pattern. Confirm the pitch in the machine manual or count the holes on a correctly punched sample. Letter size 4:1 documents normally have roughly 43 or 44 holes, though machine configuration can affect the exact count. Diameter determines capacity, while pitch determines hole compatibility. Both details must be correct for smooth insertion and reliable page movement.

The machine must punch a 4:1 pattern and provide accurate guides so each lift of paper aligns consistently. A depth margin control is helpful because small diameter coils need enough paper around the holes to resist tearing without making turning difficult. An electric inserter can speed repeated work, although 7mm coil can also be inserted by hand when volume is low. Manual and electric coil binding machines suit different production levels. Confirm the punch capacity and process thick documents in manageable lifts rather than forcing the full stack. A sample made with the actual covers and paper will reveal alignment, margin, and insertion issues before the main run is completed.

Color is mainly a presentation choice and does not change capacity or pitch. Select a color that works with the covers, branding, or intended use while keeping the required 7mm diameter and 4:1 pattern unchanged. Length must suit the binding edge. Standard coil is often supplied slightly longer than letter size paper so it can be trimmed after insertion, but nonstandard documents require enough length to pass through every punched hole. Avoid cutting the coil too short before it is installed. Insert it fully, leave material at both ends for crimping, and then trim. For recurring jobs, record the diameter, pitch, length, and color together so future orders match both the mechanical requirements and the established appearance.

Crimping bends the trimmed coil ends inward so the spine cannot unwind from the document during use. After insertion, leave a small amount of coil beyond the first and last holes, remove the excess, and crimp both ends in opposite directions. The cut should be clean, and the bent tip should face inward without catching the cover or pages. Finishing tools among coil binding accessories include crimpers and insertion aids for this step. Ordinary scissors may cut plastic coil, but they do not create the inward bend needed for a secure finish. Practice on a spare length to learn the tool orientation before completing an important document.
