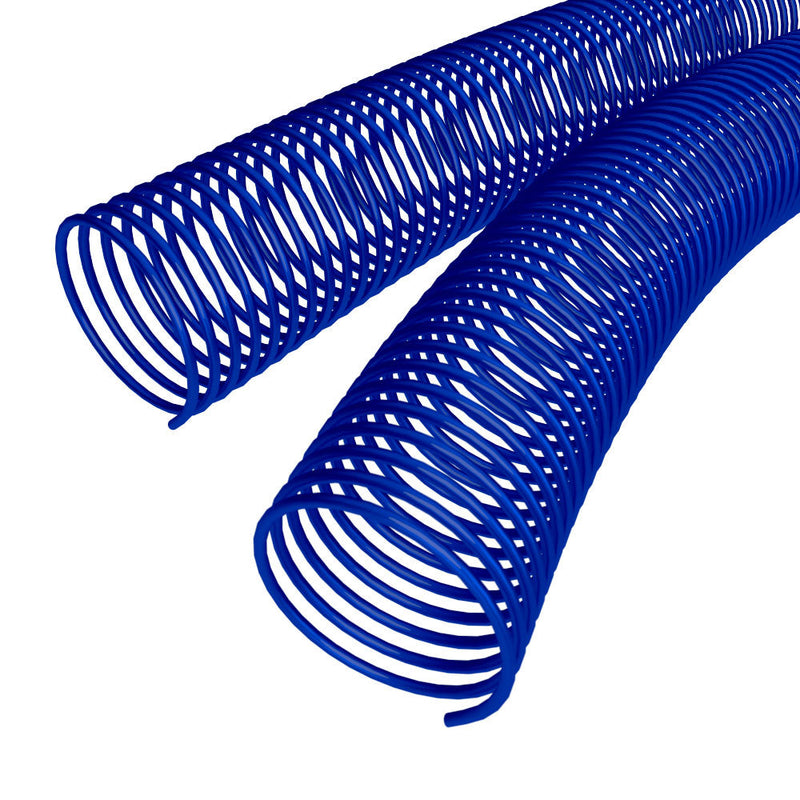

Blue Spiral Binding Coils

The coil should be slightly larger than the measured document thickness so the sheets turn freely without excessive movement. Measure the completed stack at the punched edge, including front and back covers, tabs, and inserts. A tight coil can pinch the sheets and make the document difficult to open, while a much larger diameter can look loose and allow the sheets to shift. Sheet count alone can be misleading because paper weight and cover thickness vary. Use a sizing guide as a reference, then test a representative document with the chosen diameter. The sheets should turn smoothly, the covers should not pull against the holes, and the spine should keep a balanced shape when the document lies flat.

Manual insertion can work well for short documents and occasional jobs, especially when the holes are aligned and the coil diameter is modest. Higher volume, longer binding edges, or thicker documents can make repeated hand insertion slow and tiring. Coil inserters rotate the spine through the punched holes and can improve consistency once the first few loops are threaded correctly. The inserter must support the coil size and work with the document format. It does not replace accurate punching or proper coil sizing, so poorly aligned holes will still cause feeding problems. Test the full workflow, including starting the coil, guiding the document, cutting the ends, and crimping them securely.

Measure the edge that will actually be punched and bound. A portrait letter document normally uses the long edge, while horizontal format, legal, half size, and ledger documents may use a different length. The coil should extend slightly beyond both outer holes before trimming so there is enough material to form secure end crimps. If long coils will be cut into custom lengths, plan for waste and consistent measurement. Do not choose length only from the sheet dimensions because trimming or a short edge binding layout changes the required spine. Confirm that the pitch remains correct across the entire punched edge and that the coil has enough loops to support every hole without leaving unsupported sections.

Crimping cuts the excess coil and bends each end inward, preventing the spine from rotating out through the first or last hole. Simply cutting the coil leaves sharp ends and does not create the stopping bend needed for secure handling. Coil binding crimpers are made to complete this finishing step by cutting and forming the end in one action. Leave a small amount of coil beyond the outer hole, position the tool in the correct direction, and inspect the result for sharp points. Both ends should be secure while allowing the first and last sheets to turn freely. Consistent crimping is especially important for documents that are carried, mailed, or opened frequently.
