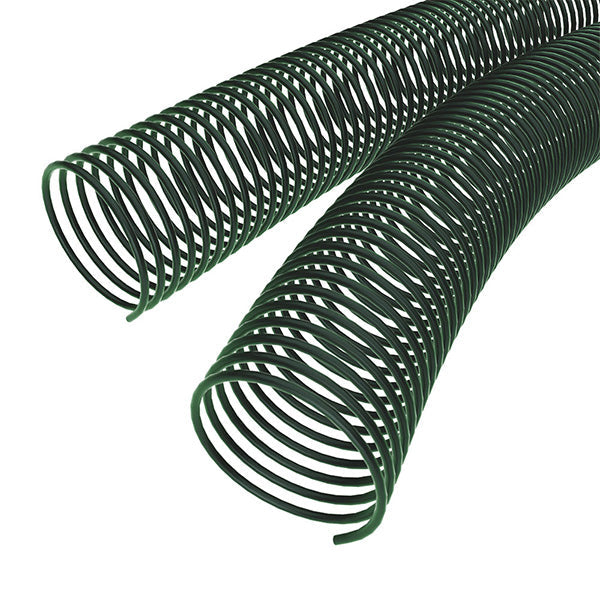

Metallic Forest Spiral Binding Coils

Measure the complete document after adding every printed sheet, divider, insert, front cover, and back cover. Select a coil slightly larger than the measured thickness so the pages can turn freely without pressing against the spine. A coil that is too small can make pages difficult to turn and place stress on the punched holes. A coil that is much too large may feel loose and reduce the finished appearance. Sheet-capacity estimates are useful, but paper weight and cover thickness can change the actual fit. Produce one finished sample when the document sits close to a stated capacity limit, especially when using heavy paper, laminated sheets, or plastic covers.

Choose the coil length according to the edge being bound rather than the paper name alone. A 12-inch coil is normally used for a letter-size document bound along its 11-inch edge, leaving enough material for trimming and crimping. Other lengths support half-size, legal, ledger, and nonstandard formats. Long coils can also be cut for custom work when the production process permits it. The available spiral coil supplies by length provide options for several document formats. Confirm the finished orientation before ordering because portrait and landscape documents made from the same paper size may need different coil lengths.

They can work with an electric inserter when the coil pitch, diameter, and material fall within the machine’s supported range. Smaller coils usually feed more easily, while large-diameter coils may require slower insertion and additional hand guidance. The roller should grip the coil without flattening, stretching, or marking its metallic finish. Begin the coil through several holes manually before using the roller, then support the document so its weight does not pull the spine out of alignment. An inserter does not replace the need for crimping. Once the coil is fully inserted, both ends must be trimmed and bent inward to prevent the spine from rotating out during use.

You need a compatible punch, correctly sized coil, and coil crimping pliers or an automatic crimper. The punch must create the same pitch as the coil, while the crimper cuts away excess length and bends each end inward. This final step keeps the spine from unwinding as the document is opened and closed. An electric inserter can make repeated production faster, but it is optional for light work. The broader range of coil-binding accessories includes inserters, crimpers, measuring tools, and other finishing equipment. Keep a completed sample with repeat-job instructions so operators can reproduce the correct diameter, length, and finishing method. # Metallic Laminating Foil Supplies
