Coverbind Perfect Binder with Side Gluing, Cover Feeder and Creaser - CPB3SGCFC
33725.00 NewCondition InStock

Coverbind Perfect Binder with Side Gluing, Cover Feeder and Creaser - CPB3SGCFC

Part #: 04TPTC5700C
Brand: Coverbind
  • Automated binding efficiency
  • Bind up to 360 books per hour
  • Bind books up to 1.75" thick
  • Ideal for in-plant and on-demand print shops
  • Price Match Guarantee
  • Oversize / Truck shipping

$33,725.00

Buy Now, Pay Later
Starting at $3,120/month
Learn More >

This Item Ships Via Truck

SWIPE FOR MORE IMAGES
  • 0
  • 1

Product Description

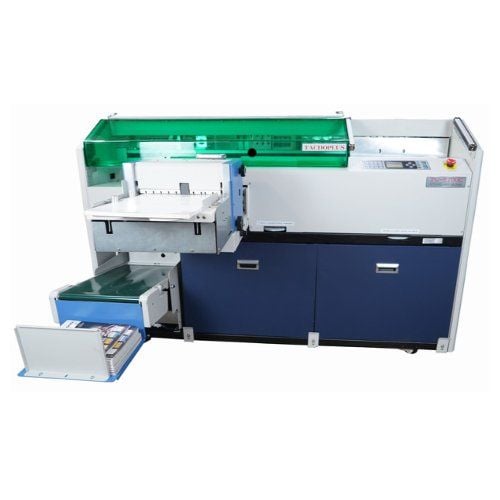

Coverbind CPB3SGCFC Perfect Binder with Side Gluing, Cover Feeder, and Creaser produces the best binding results. It is simple and straightforward to use in any perfect binding application. It has a cover feeder with creaser that automatically inserts the cover when the bookbinding is completed. Equipped with 2 separate glue tanks, the side glue device and the main bookstore roller allows even glue application to seal the spine and the book cover. Adjust the book thickness by simply turning the lever dial to the right to make the book angled or to the left to make the book round. The spine position of the book can also be adjusted by lifting the cover and adjusting it up and down. The scrapping and milling system on this binding machine strengthens the adhesive between the cover and the booklet. Furthermore, it has a vacuum system that sucks up dust and other debris after the spine of the book is cut, keeping your machine and workplace clean. This machine conveniently stacks completed books in a loading box.Considered as the best EVA binder on the market, this binding machine saves you time for booklet making jobs with professional finishing

Get the best binding results with the new Coverbind CPB3SGCFC Perfect Binder with Side Gluing, Cover Feeder, and Creaser. Easy to use, it will give flawless binding in many different contexts. When the bookbinding is complete, the cover feeder with creaser will attach the cover automatically, and you can move on to the next step of the process. The side glue device, main bookshop roller, and two independent glue tanks provide even glue application to bond the book cover and spine. Easily adjust the book thickness by turning the dial to the right, or easily make the book round by turning the dial to the left. To adjust the spine position, you can easily lift the cover to adjust it. This binding machine's scraping and milling method enhance the bond between the cover and the booklet. Additionally, it contains a vacuum system that collects dust and other particles after the book's spine is cut, keeping your machine and workspace tidy. With ease, this device stacks finished books in a loading box. This perfect binding machine, regarded as the best EVA binder on the market, helps you perform booklet-making tasks quickly and professionally.

Product Details

  • Fast Binding. Bind up to 360 books per hour, depending on the book specifications and operator capabilities.
  • Efficient Controls. A simple control panel lets you customize the machine to your specific job quickly.
  • Automated Clamping. A pneumatic powered clamping mechanisms automatically adjusts to your book block thickness up to 2-1/4”.
  • Optimum Glue Penetration. Roughing blade includes a serrated edge with 4 notching pins for maximum glue penetration and finished book strength.
  • Specialized Nipping. Set the nipper to produce an exceptionally square-backed book with an adjustable height and dwell time up to 8 seconds.
  • Stronger Bind. Side gluing on the front and rear of the book block makes for exceptional finishing.
  • Saturated Glue Coverage. Twin gluing rollers saturate the spine with adhesive while a separate adjustable metering roller smooths the glue to the optimum thickness.

Item Specifications

  • Maximum Speed:Up to 360 books/hour
  • Max Book Thickness: 1.75" / 44.5mm
  • Compatible Supplies and Accessories:
  • Max Cover Size: 13.4" x 30.75" / 34 x 78 cm
  • Maximum Spine Length: 12.5" / 32cm
  • Book Block Size: 12.5" x 8.7" / 32cm x 22cm
  • Display: LCD Screen
  • Clamp: Automatic/Pneumatic
  • Roughing Blade: Milling and 2 Heavy Duty Notching Pins
  • Rollers: 2 Glue, 1 Metering, Side Glue Tank
  • Air Compressor: Air Compressor is Included
  • Castors: Included
  • Machine Dimensions: 68” W x 75” L x 49” H
  • Shipping Dimensions: 45” H x 83” W x 56” L
  • Machine Weight:
  • Shipping Weight: 1148 lbs.
  • Castors: Included on Stand (Optional Stand is Sold Separately)
  • Electrical: 220V 60 Hz, 15 amps, single phase (plug not included)

Features and Benefits

Feature CPB2SGP CPB2SG CPB3GCFC Benefit
Max Speed Up to 360 books/hour Up to 360 books/hour Up to 360 books/hour Cycle speed is dependent on operator capabilities.
Max Book Thickness 2.25" 2.25" 1.750"
Max Cover Size 13.4" x 30.75" 13.4" x 30.75" 13.4" x 30.75" All machines have same Max size.
Book Block Size (Max) 12.5" spine x 8.7" 12.5" spine x 8.7" 12.5" spine x 8.7" (Actual unbound book height can be higher, call for info)
Book Block Size (Min) 4" spine x 3-3/4" 4" spine x 3-3/4" 4" spine x 3-3/4" All machines have same Min size.
Clamp Automatic/Pneumatic Automatic/Pneumatic Automatic/Pneumatic All have Automatic Clamp.
Roughing/Milling Blade Milling and 2 Heavy Duty Notching Pins Milling and 2 Heavy Duty Notching Pins Milling and 2 Heavy Duty Notching Pins Roughing/Milling Blade gives the spine more surface area for the glue to adhere on. Model CPB2SG, CPB2GP, and CPB3GCFC are equipped with Roughing/Milling Blade. This procedure makes it easier when working with coated paper and other types of paper stock that need more glue saturation.
Glue Rollers 2 Glue, 1 Metering PUR, 1 Side Glue Tank EVA 2 Glue, 1 Metering, Side Glue Tank 2 Glue, 1 Metering, Side Glue Tank Glue rollers provide a foolproof bond from the 2 Glue Rollers and 1 Metering Roller. All models have the Side Glue Tank with 2 applicator rollers. A stonger bond is made with the side glue when the cover is nipped. This creates strong adhesion of the cover to the book block on both the spine and front/back. A built in heat control ensure that the temperature is always optimal.
Vacuum Waste Removal System Yes Yes Yes Having a Vacuum Waste Removal System helps keep the machine in optimal operating performance. The system collects dust that would otherwise end up inside the machine and glue. Without the vacuum system, paper dust produced from the roughening and notching process will accumulate and will cause future issues and damaged.
Safety Hood Yes with fans to vent the PUR vapor. Yes Yes Protecting operators from accidents is the Safety Hood. This feature prevents access to the glue pots. It is only bypassed when a security key is inserted. The function is convenient when the book block height exceeds the opening of the safety cover. It also provides access in troubleshooting the machine. To make sure that no accidents happen, a clamp safety sensor runs the entire length of the clamp.
Clamp Safety Sensor Yes Yes Yes Clamp Safety Sensors run the entire length of the book clamp to restrict access during operation. This prevent accidents that happend from contact with the binding parts.
Book & Cover Sensors Yes Yes Yes The Book and Cover Sensor makes sure that outputs are always complete. The sensor alerts the operator when a book or cover is missing. The binder will not operate when one of these components is missing.
Stand Included Included Included All machines come with stand to optimize its function and productivity as it provides the perfect working height, proper balance, and stability. The stand will create a cohesive workstation as it provides space for the compressor and glue storage.
Air Compressor Yes Yes Yes The binder takes advantage of Pneumatic control. It offers convenience and speed with its auto adjust functions for book block size. Eash machine comes with Quite Noise Compressor.
Fume Extractor Yes Yes (Avaiable) Yes (Avaiable) Creates a smell and odor-free work place with the Fume Extractor. The extractor traps fumes from the glue pot and directs away from the operator. Hooking the extractor to an external vent keeps the fume out of the workplace for operator safety.
Automatic Cover Creaser No No Yes The Automatic Cover Creaser eliminates the possibility of cracking in the folded site especially when working with digitally printed media. This feature maintains the aesthetic of the print and elevates the quality of the final product. Having this built in feature eliminates the need for an additional process on a separate machine, saving you time and money.
Creasing Bar No No Yes The Creasing Bar gives operators sevaral creasing depth options. It can be rotated in four directions to select the perfect crease depth for every unique project.
Automatic Cover Feeder No No Yes Improving the workflow and operator convenience is the Automatic Cover Feeder. It utilizes embedded sensors to automatically feed the cover into position when the binder is ready. The sensors also detect double feeding and and missing covers, ensuring that every output is perfect and complete.
Main Differences PUR Glue EVA Glue EVA Glue We offer Perfect Binders that utilize EVA or PUR glue. EVA glue is reusable, dries quickly and can be used on many different paper types. The glue also has a longer self life and can be reheated. PUR has a much greater bond to the paper, about 50%. It also has a greater stability in hot or cold temperatures like some EVA glues do. It is fully resistent to print ink and coated paper stock. PUR has a very short shelf life and unused glue must be vaccuum sealed for storage. Left over glue in pot can not be reheated/reused. PUR is more flexable that EVA but takes longer to cure. Each glue has it place in making Perfect Bind Books.
