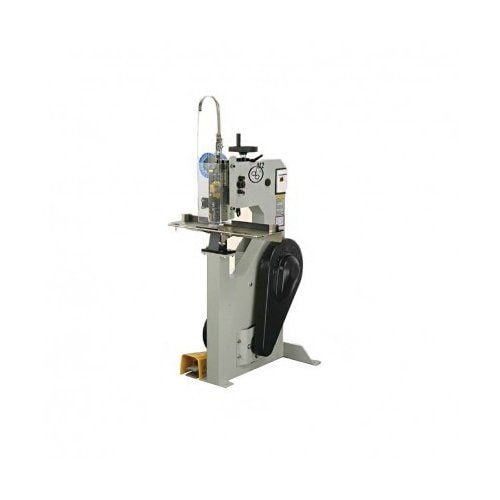

The DeLuxe M2-AST Wire Stitcher is designed to staple both flat and saddle work ranging in thickness from 2 pages to 1/4" with a 26D stitching head. This industrial grade stitcher is footswitch operated and is belt driven by a 1/2 HP motor, making possible operating speeds up to 215 stitches per minute. The M2-AST features a single-adjustment set-up for different thicknesses and switches quickly from flat to saddle stapling, giving you the versatility you need. This high-speed single-head stitcher is ideal for print shops and binderies, and is backed by a 90-day warranty.
Product Details
Designed to staple both flat and saddle work ranging in thickness from 2 pages to 1/4" thick
Uses a 26D stitching head
Footswitch operated and is belt driven by a 1/2 HP motor, making possible
operating speeds up to 215 stitches per minute.
Features a single-adjustment set-up for different thicknesses
Switches quickly from flat to saddle stapling
An adjustable work guide and adjustable work stops
are easily attached to the work table and provide for accurate registering of flat work for
uniform spacing of staples
Has a 14" (35.6cm) throat depth for both flat and saddle stitching.
The work table is approximately 34" (86.4cm) above the floor, and there is approximately 17/32" (24mm)
clearance between the top of the work table and the stitching head.
Item Specifications
Capacity: From 2 sheets to 1/4" with a 26D head
Recommended Wire Sizes To Be Used: 21-25 gauge round or 21x25 flat
