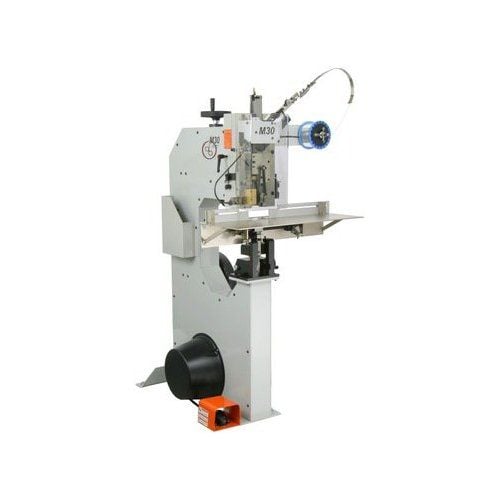

Deluxe M30-AST 7/8" Single Head Wire Stitcher
FAQ: 0 Questions, 0 Answers
0 Q&As
Item# M30-AST78
- A stitch capacity from 2 sheets up to 7/8"[22 mm] standard.
- The ability to run flat, saddle, or corner stitched jobs.
- Stab stitch capability up to 2" (51mm).
- Wire Sizes: 20-28 gauge round or 19 x 21-1/2, 20x24 and 21x25 flat.
Product Name
Item Number
Price
Qty
ProductDescription
The Deluxe M30-AST 7/8" Single Integrated Head Wire Stitcher is perfect for flat, saddle and corner-stitched jobs. It can even stab stitch! It can do 180 stitches pwer minute, has a stitch capacity of 7/8
Product Details
- A stitch capacity from 2 sheets up to 7/8"[22 mm] standard.
- The ability to run flat, saddle, or corner stitched jobs.
- Stab stitch capability up to 2" (51mm).
- Wire Sizes: 20-28 gauge round or 19 x 21-1/2, 20x24 and 21x25 flat.
- Clinch: moveable clincher for flat stitching and adjustable table height for stab stitching.
- Table: 36" wide heavy duty, 18" throat for flat and saddle work .
- Speed: 180 stitches per minute.
- Optional loop stitch kit available.
- Manufacturers Manufacturer's Warranty - 90 Days.
Item Specifications
- Stitching Capacity:
- Two Sheets to 1-1/4" [30 mm] (Using 18 x 20 Wire)
- at 20# paper stock [75 grams/meter2]
- Stab Stitch to 2" [50mm] (Using 18 x 20 Wire)
- Crown Sizes: 5/8" [16 mm] & 13/64" [5mm] Loop
- Throat Depth (Flat or Saddle): 20" [50.8 cm]
- Wires Types - Round: 20-28 gauge
- Wires Types - Flat: 19 x 21-1/2 (standard), 18 x 20, 20 x 24, 20 x 25 & 21 x 25
- Side Stops: 9-30" [22.9 cm - 76.2 cm]
- Weight:
- Actual Machine Dimensions: 30" x 40" x 70"
- Actual Machine Weight : 700lbs
- Wire Spool: 5 lbs. [2.3 kgs] or 10lbs. [2.6 kgs] optional
- Foot Switch: 4.5 lbs. [2.0 kgs]
- Table: 27 lbs. [12.3 kgs]
- Skid Size: 30" x 40" x 70" [76.2cm x 101.6cm x 177.8cm]
- Physical Dimensions:
- Height: 66.5 " [168.9 cm]
- Width:
- With Table: 30" [76.2 cm]
- Without Table: 21 3/4" [55.2 cm]
- Depth: 30" [76.2 cm]
- Power Requirements:
- 115VAC 60 Hz
- Motor Size: 3/4 HP
- Minimum Recommended Circuit Capacity: 10.7 A
- Cycle Speed: 125 Cycles/Minute (when running continuously)
Compare to Similar Stitchers
Model Name | ISP BinderyMate II | MiniStitcher | StitchMaster | M2-AST | M19G20-AST | M2G8-AST | M30-AST 1-1/4" | M30-AST 7/8" | N3B 2-1/2H |
---|---|---|---|---|---|---|---|---|---|
Model | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Operation Binding | Electric | Electric | Electric | Footswitch | Footswitch | Footswitch | Footswitch | Footswitch | Electric |
Thickness Capacity | 1/4" | 1/4" | 1/4" | 1/4" | 3/4" | 5/16" | 1-1/4" | 7/8" | 2" |
Speed | 175 Stitches / Minute | 100 Stitches / Minute | 100 Stitches / Minute | 215 Stitches / Minute | 200 Stitches / Minute | 215 Stitches / Minute | 180 Stitches / Minute | 180 Stitches / Minute | 100 Stitches / Minute |
Throat Depth | 4" | 9" | 9" | 14" | 14" | 14" | 20" | 20" | 13" |
Warranty | 1 Year Limited Manufacturer's Warranty | 90 Day Limited Manufacturer's Warranty | 90 Day Limited Manufacturer's Warranty | 90 Day Limited Manufacturer's Warranty | 90 Day Limited Manufacturer's Warranty | 90 Day Limited Manufacturer's Warranty | 90 Day Limited Manufacturer's Warranty | 90 Day Limited Manufacturer's Warranty |
