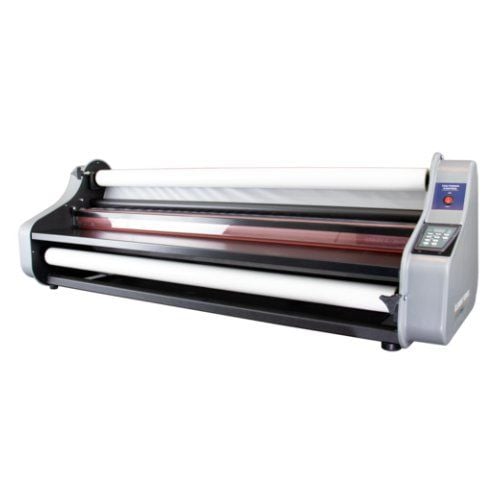

Dry-Lam CL-40PR 40" Element Series Professional Roll Laminator
3193.31 NewCondition OutOfStock

Dry-Lam CL-40PR 40" Element Series Professional Roll Laminator

Part #: 04DLCL40PR
Brand: Drylam
  • Capable of using 1.5 mil to 10 mil film
  • Laminates up to 10 ft/min
  • Variable temperature control
  • Safety Shield
  • 180 Day Manufacturer Warranty
  • Price Match Guarantee
  • Oversize / Truck shipping
  • Brand New
Backordered

$3,193.31

Buy Now - Pay Later

From $295.38 a month

with Credit Key

This Item Ships Via Truck
SWIPE FOR MORE IMAGES
  • 0
  • 1

Product Description

Be a pro in handling wide format prints with Dry-Lam CL-40PR 40" Element Series Professional Roll Laminator! This heavy duty machine is capable of laminating wider jobs with its 40 inch laminating width. What makes the Professional model special is its horizontal trimmer and cooling fans. With the capacity of laminating thicker films that range from 1.5mil to 10mil and at a speed of 10 ft per minute, this laminator is the fastest and most versatile among the Element Series. This added feature is perfect for users that are looking for quality, user-friendly laminating machines that create excellent results with each use. The machines warms up in as fast as 12 minutes cutting down the waiting time. To set, a digital LED display control panel allows simple and easy adjustments of temperature and speed. Also in the LED display is an indicator light that tells when the laminator is ready or not. The horizontal trimmer that trims the lamination after it exits the rear of the laminator while Cooling Fans allows longer lamination without the trouble of overheating. An Auto Shut Off feature is activated when the machine gets idle for more than 2 hours. To ensure user safety, a safety shield is located in front of the rollers is specifically designed to prevent accidental contact with the heated rollers. In laminating wider prints let the pro do the job, get lamination every time, get Dry-Lam CL-40PR 40" Element Series Professional Roll Laminator!

Product Details

  • Capable of using 1.5 mil to 10 mil film
  • Laminates up to 10 ft/min
  • Variable temperature control
  • Safety Shield
  • Auto shut off after 2 hours
  • 3/16" mounting capability
  • 1" or 3" core sizes
  • Digital LED display
  • 12 minute warm-up time
  • Built-in horizontal trimmer
  • Cooling fans
  • 180-days labor warranty
  • Made in the U.S.A

Product Reviews

Write Your Own Review
You're reviewing:Dry-Lam CL-40PR 40" Element Series Professional Roll Laminator
Your Rating

Item Specifications

  • Laminating Width: 40"
  • Speed: 10' (Variable)
  • Film Thickness: 1.5 - 10 mil
  • Core Size: 1" and 3"
  • Laminating Thickness: 3/16"
  • Heat Type: Heated Rollers
  • Temperature Range: 230 - 280°F
  • Warm-Up Time: 12 minutes
  • Voltage: 1400 W
  • Power Supply: 120 V, 60 Hz, 12 A
  • Weight: 93 lbs
  • Additional Features: Trimmer, Cooling Fans

Drylam Element Series Roll Laminators


Model NumberCL-27SDCL-27DXCL-27PRCL-40SDCL-40DXCL-40PRCL-27SDKITCL-27DXKITCL-27PRKIT
Model
Laminating Width27"27"27"40"40"40"27"27"27"
Speed (ft / min)3' (Fixed)9' (Variable)9' (Variable)9' (Variable)9' (Variable)10' (Variable)3' (Fixed)9' (Variable)9' (Variable)
Film Thickness 1.5 - 3 mil 1.5 - 5 mil 1.5 - 10 mil 1.5 - 5 mil 1.5 - 5 mil 1.5 - 10 mil 1.5 - 3 mil 1.5 - 5 mil 1.5 - 10 mil
Core Size 1" 1" 1" 1" 1" and 3" 1" and 3" 1" 1" 1"
Laminating Thickness 3/16" 3/16" 3/16" 3/16" 3/16" 3/16" 3/16" 3/16" 3/16"
Heat TypeHeated RollersHeated RollersHeated RollersHeated RollersHeated RollersHeated RollersHeated RollersHeated RollersHeated Rollers
Temperature Range230 - 280°F230 - 280°F230 - 280°F230 - 280°F230 - 280°F230 - 280°F230 - 280°F230 - 280°F230 - 280°F
Warm-Up Time12 min12 min12 min12 min12 min12 min12 min12 min12 min
Voltage1400 W1400 W1400 W1400 W1400 W1400 W1400 W1400 W1400 W
Power Supply120 VAC, 60Hz, 12A120 VAC, 60Hz, 12A120 VAC, 60Hz, 12A120 VAC, 60Hz, 12A120 VAC, 60Hz, 12A120 VAC, 60Hz, 12A120 VAC, 60Hz, 12A120 VAC, 60Hz, 12A120 VAC, 60Hz, 12A
Weight73 lbs76 lbs81 lbs93 lbs93 lbs93 lbs73 lbs76 lbs81 lbs
Additional FeaturesTrimmerTrimmer, Cooling FansTrimmerTrimmer, Cooling FansTrimmerTrimmer, Cooling Fans
Includes36" Heavy-duty steel mobile cart with locking doors, 4 rolls of 25' x 500' 1.5 mil Gloss Film, Cleaning Kit36" Heavy-duty steel mobile cart with locking doors, 4 rolls of 25' x 500' 1.5 mil Gloss Film, Cleaning Kit36" Heavy-duty steel mobile cart with locking doors, 4 rolls of 25' x 500' 1.5 mil Gloss Film, Cleaning Kit
