Product Description

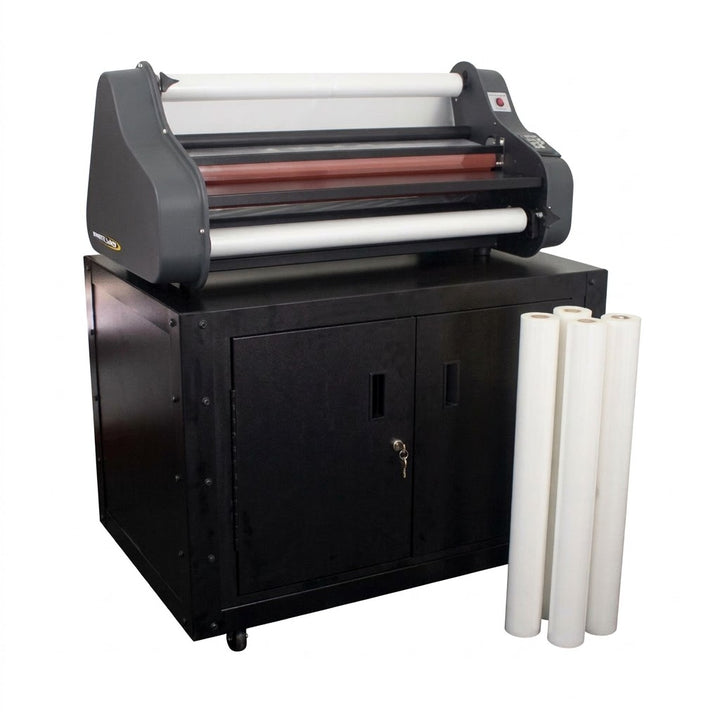

Produce professional level lamination with Dry-Lam CL-27PR 27" Element Series Professional Roll Laminator Kit. The kit is carefully curated to provide you with all the necessities in producing professional level laminates. No need to go through the hassle of purchasing units individually as everything in the kit is compatible with each other. Included is a Dry-Lam CL-27SD 27” Element Series Standard Roll Laminator which is a 27-inch heavy duty machine that is capable laminating and mounting and packed with added features including a horizontal trimmer and cooling fans. Perfect for users that are looking for quality, user-friendly laminating machines that enable users to easily create excellent results with each use. The machine warms up in as fast as 12 minutes cutting down the waiting time. To set, a digital LED display control panel allows simple and easy adjustments of temperature and speed, an indicator light on the LED display tells when the laminator is ready or not. With the capacity of laminating 1.5mil to 10mil at a speed of 9 feet per minute, this laminator can take on a variety of jobs in no time. In addition to laminating, this efficient machine can also mount prints to mounting boards. Making operations even easier, the Professional model comes with a horizontal trimmer that trims the lamination after it exits the rear of the laminator and Cooling Fans so you can work longer without the trouble of overheating. An Auto Shut Off feature is activated when the machine gets idle for more than 2 hours. To ensure user safety, a safety shield is located in front of the rollers is specifically designed to prevent accidental contact with the heated rollers. As it is all-inclusive, the unit comes with 4 rolls of 25” x 500’ 15 mil Gloss Film, a 36” heavy duty steel mobile cart with locking doors for storage, and smooth casters for mobility, and a cleaning kit for maintenance. Unit is backed with 180 Day Manufacturer's Warranty (Extended Warranties Available). Everything you need for perfect lamination is in the Dry-Lam CL-27PR 27" Element Series Professional Roll Laminator Kit!
Product Details
- Laminating Width: 27"
- Speed: 9' (Variable)
- Film Thickness: 1.5 - 10mil
- Core Size: 1"
- Laminating Thickness: 3/16"
- Heat Type: Heated Rollers
- Temperature Range: 230 - 280°F
- Warm-Up Time: 12 minutes
- Voltage: 1400 W
- Power Supply: 120 V, 60 Hz, 12 A
- Compatible Supplies: 1" or 3" Core Thermal Roll Film - 1.5-10mil Thick & Up to 27" Wide
Mounting Board - Up to 3/16" Thick - Weight: 81 lbs
- Additional Features: Trimmer
Specifications
- Capable of using 1.5 mil to 10 mil film
- Laminates up to 9 ft/min
- Variable temperature control
- Safety Shield
- Auto shut off after 2 hours
- 3/16" mounting capability
- 1" core size
- Digital LED display
- 12 minute warm-up time
- Built-in horizontal trimmer
- Cooling fans
- 180 Day Manufacturer's Warranty (Extended Warranties Available)
- Includes:
- 36" Heavy-duty steel mobile cart with locking doors
- 4 rolls of 25' x 500' 1.5 mil Gloss Film
- Cleaning Kit
- Made in the U.S.A
Drylam Element Series Roll Laminators
| Model Number | CL-27SD | CL-27DX | CL-27PR | CL-40SD | CL-40DX | CL-40PR | CL-27SDKIT | CL-27DXKIT | CL-27PRKIT |
|---|---|---|---|---|---|---|---|---|---|
| Model |  |
 |
 |
 |
 |
 |
 |
 |
 |
| Laminating Width | 27" | 27" | 27" | 40" | 40" | 40" | 27" | 27" | 27" |
| Speed (ft / min) | 3' (Fixed) | 9' (Variable) | 9' (Variable) | 9' (Variable) | 9' (Variable) | 10' (Variable) | 3' (Fixed) | 9' (Variable) | 9' (Variable) |
| Film Thickness | 1.5 - 3 mil | 1.5 - 5 mil | 1.5 - 10 mil | 1.5 - 5 mil | 1.5 - 5 mil | 1.5 - 10 mil | 1.5 - 3 mil | 1.5 - 5 mil | 1.5 - 10 mil |
| Core Size | 1" | 1" | 1" | 1" | 1" and 3" | 1" and 3" | 1" | 1" | 1" |
| Laminating Thickness | 3/16" | 3/16" | 3/16" | 3/16" | 3/16" | 3/16" | 3/16" | 3/16" | 3/16" |
| Heat Type | Heated Rollers | Heated Rollers | Heated Rollers | Heated Rollers | Heated Rollers | Heated Rollers | Heated Rollers | Heated Rollers | Heated Rollers |
| Temperature Range | 230 - 280°F | 230 - 280°F | 230 - 280°F | 230 - 280°F | 230 - 280°F | 230 - 280°F | 230 - 280°F | 230 - 280°F | 230 - 280°F |
| Warm-Up Time | 12 min | 12 min | 12 min | 12 min | 12 min | 12 min | 12 min | 12 min | 12 min |
| Voltage | 1400 W | 1400 W | 1400 W | 1400 W | 1400 W | 1400 W | 1400 W | 1400 W | 1400 W |
| Power Supply | 120 VAC, 60Hz, 12A | 120 VAC, 60Hz, 12A | 120 VAC, 60Hz, 12A | 120 VAC, 60Hz, 12A | 120 VAC, 60Hz, 12A | 120 VAC, 60Hz, 12A | 120 VAC, 60Hz, 12A | 120 VAC, 60Hz, 12A | 120 VAC, 60Hz, 12A |
| Weight | 73 lbs | 76 lbs | 81 lbs | 93 lbs | 93 lbs | 93 lbs | 73 lbs | 76 lbs | 81 lbs |
| Additional Features | Trimmer | Trimmer, Cooling Fans | Trimmer | Trimmer, Cooling Fans | Trimmer | Trimmer, Cooling Fans | |||
| Includes | 36" Heavy-duty steel mobile cart with locking doors, 4 rolls of 25' x 500' 1.5 mil Gloss Film, Cleaning Kit | 36" Heavy-duty steel mobile cart with locking doors, 4 rolls of 25' x 500' 1.5 mil Gloss Film, Cleaning Kit | 36" Heavy-duty steel mobile cart with locking doors, 4 rolls of 25' x 500' 1.5 mil Gloss Film, Cleaning Kit |
