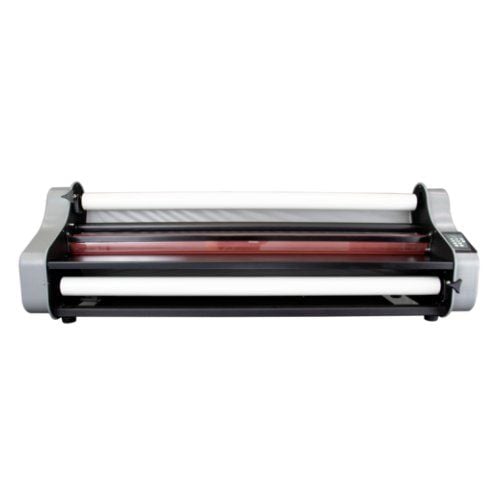

Dry-Lam CL-40SD 40" Element Series Standard Roll Laminator
FAQ: 0 Questions, 0 Answers
0 Q&As
Item# 04DLCL40SD
- 40" thermal roll laminator
- Compatible with film up to 5mil thick (1" core)
- Adjustable heat settings from 230°-280° F
- 36" per minute fixed speed
ProductDescription
Laminate wider prints with the Dry-Lam CL-40SD 40" Element Series Standard Roll Laminator. This heavy duty laminator is ready to take on bigger jobs with its ample 40 inch laminating width, this allows easy lamination of wide format prints or multiple smaller prints at once. The machines warms up in as fast as 12 minutes cutting down the waiting time. A simple to read digital LED display control panel allows easy adjustments of temperature and speed to achieve the most favorable temperature and pace, also in the LED display is an indicator light that tells when the laminator is ready or not. With the capacity of laminating 1.5mil to 5mil at a speed of 9 ft per minute, this laminator can finish wide format lamination in no time. An Auto Shut Off feature is activated when the machine gets idle for more than 2 hours to save energy and prevent overheating. To ensure user safety, a safety shield located in front of the rollers is specifically designed to prevent accidental contact with the heated rollers. Bigger jobs need bigger laminators, get Dry-Lam CL-40SD 40" Element Series Standard Roll Laminator!
Product Details
- Capable of using 1.5 mil to 5 mil film
- Laminates up to 9 ft/minute
- Variable temperature control
- Safety Shield
- Auto shut off after 2 hours
- 3/16" mounting capability
- 1" core size
- Digital LED display
- 12 minute warm-up time
- 180 Day Manufacturer's Warranty (Extended Warranties Available)
- Made in the U.S.A
Item Specifications
- Laminating Width: 40"
- Speed: 9' (Variable)
- Film Thickness: 1.5 - 5mil
- Core Size: 1"
- Laminating Thickness: 3/16"
- Heat Type: Heated Rollers
- Temperature Range: 230 - 280°F
- Warm-Up Time: 12 minutes
- Voltage: 1400 W
- Power Supply: 120 V, 60 Hz, 12 A
- Compatible Supplies: 1" Core Roll Laminate - 1.5-5mil Thick & Up to 40" Wide
- Weight: 93 lbs
Demonstration Video
Element Series Unboxing & Overview - My Live Expo Element Series laminator Ecerpt Demo Video
Drylam Element Series Roll Laminators
| Model Number | CL-27SD | CL-27DX | CL-27PR | CL-40SD | CL-40DX | CL-40PR | CL-27SDKIT | CL-27DXKIT | CL-27PRKIT |
|---|---|---|---|---|---|---|---|---|---|
| Model | |||||||||
| Laminating Width | 27" | 27" | 27" | 40" | 40" | 40" | 27" | 27" | 27" |
| Speed (ft / min) | 3' (Fixed) | 9' (Variable) | 9' (Variable) | 9' (Variable) | 9' (Variable) | 10' (Variable) | 3' (Fixed) | 9' (Variable) | 9' (Variable) |
| Film Thickness | 1.5 - 3 mil | 1.5 - 5 mil | 1.5 - 10 mil | 1.5 - 5 mil | 1.5 - 5 mil | 1.5 - 10 mil | 1.5 - 3 mil | 1.5 - 5 mil | 1.5 - 10 mil |
| Core Size | 1" | 1" | 1" | 1" | 1" and 3" | 1" and 3" | 1" | 1" | 1" |
| Laminating Thickness | 3/16" | 3/16" | 3/16" | 3/16" | 3/16" | 3/16" | 3/16" | 3/16" | 3/16" |
| Heat Type | Heated Rollers | Heated Rollers | Heated Rollers | Heated Rollers | Heated Rollers | Heated Rollers | Heated Rollers | Heated Rollers | Heated Rollers |
| Temperature Range | 230 - 280°F | 230 - 280°F | 230 - 280°F | 230 - 280°F | 230 - 280°F | 230 - 280°F | 230 - 280°F | 230 - 280°F | 230 - 280°F |
| Warm-Up Time | 12 min | 12 min | 12 min | 12 min | 12 min | 12 min | 12 min | 12 min | 12 min |
| Voltage | 1400 W | 1400 W | 1400 W | 1400 W | 1400 W | 1400 W | 1400 W | 1400 W | 1400 W |
| Power Supply | 120 VAC, 60Hz, 12A | 120 VAC, 60Hz, 12A | 120 VAC, 60Hz, 12A | 120 VAC, 60Hz, 12A | 120 VAC, 60Hz, 12A | 120 VAC, 60Hz, 12A | 120 VAC, 60Hz, 12A | 120 VAC, 60Hz, 12A | 120 VAC, 60Hz, 12A |
| Weight | 73 lbs | 76 lbs | 81 lbs | 93 lbs | 93 lbs | 93 lbs | 73 lbs | 76 lbs | 81 lbs |
| Additional Features | Trimmer | Trimmer, Cooling Fans | Trimmer | Trimmer, Cooling Fans | Trimmer | Trimmer, Cooling Fans | |||
| Includes | 36" Heavy-duty steel mobile cart with locking doors, 4 rolls of 25' x 500' 1.5 mil Gloss Film, Cleaning Kit | 36" Heavy-duty steel mobile cart with locking doors, 4 rolls of 25' x 500' 1.5 mil Gloss Film, Cleaning Kit | 36" Heavy-duty steel mobile cart with locking doors, 4 rolls of 25' x 500' 1.5 mil Gloss Film, Cleaning Kit |
