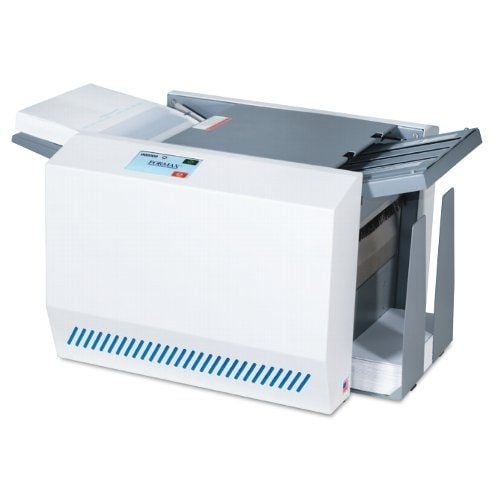

Product Description
The FD 1406 AutoSeal is a compact, user-friendly low-volume pressure-seal solution designed to efficiently process one-piece pressure-sensitive mailers at speeds of up to 73 forms per minute and lengths up to 14”. It features a color touchscreen control panel with intuitive graphics, clearly marked and easily adjustable fold plates pre-set for standard 11” and 14” forms, a drop-in top feed system for simple loading, and a six-digit resettable counter for job tracking. Built in the USA with proven Formax technology, the FD 1406 delivers reliable daily performance in a sleek desktop design, providing an economical and dependable choice for offices and small-volume mail operations.
Product Details
- Color Touchscreen Control Panel: Simple, intuitive operation.
- Compact Desktop Design: Fits easily in small office spaces.
- Drop-In Top Feed System: Quick and hassle-free loading.
- 14” Form Length Capability: Handles a wide range of document sizes.
- Fast Processing: Folds up to 73 forms per minute.
- Multiple Fold Types: Z, C, uneven Z, uneven C, half fold, and custom folds.
- 160-Form Hopper Capacity: Supports longer, uninterrupted runs.
- Pre-Marked, Easy-to-Adjust Fold Plates: Speeds up setup and changeovers.
- Six-Digit Resettable Counter: Tracks job quantities accurately.
- Adjustable Catch Tray: Keeps folded forms neatly organized.
- Adjustable Infeed Side Guides: Ensures proper document alignment.
Specifications
- Hopper Capacity: Up to 160 Sheets 20#
- Fixed Speed: Up to 73 sheets per minute - based on 11" "Z" fold
- Paper Size: Up to 8.5" W x 14" L
- Monthly Duty Cycle: Up to 30,000/month
- Power: 120 Volts AC 50/60Hz
- Dimensions: 24” L x 17” W x 13” H (610 x 432 x 330mm)
- Weight: 81 lbs (37kg)
- Certifications: UL, CE and CUL Approved
- Manufacturer's Warranty : 90 day Manufacturer's Warranty on parts and labor
Compare to Similar Pressure Sealers
-
Model NameModelHopper CapacityFixed SpeedInfeed CapacityPaper SizeFold SettingsMonthly Duty CyclePowerDimensionsWeightSafety CertificationsWarranty
-
AutoSeal FD 1000
N/AUp to 24 pre-folded forms per minute, based on 8.5" form widthSingle folded formUp to 5.5" wide (folded dimensions)Pre-folded by handN/A110V, 60Hz9.5" L x 6.25" W x 6.75" H (241 L x 159 W x 171 H mm)25 lbs (11 kg)N/A90 day limited warranty on parts. Excluding wearables and labor. -
AutoSeal FD 1406
Up to 160 Sheets 20#Up to 73 sheets per minute - based on 11" "Z" foldN/AUp to 8.5" W x 14" LN/AUp to 30,000/month120 Volts AC 50/60Hz24" L x 17" W x 13" H81 lbsUL, CE and CUL Approved90 day warranty on parts and labor. -
AutoSeal FD 1202
Up to 160 forms 20#Up to 38 forms per minuteN/AUp to 8.5" W x 14" L (216 W x 356 L mm)N/AN/AFD Model (120 Volts AC 50/60Hz) and FE Model (220 Volts AC 50/60Hz)11.6" L x 14" W x 14.5" H (294 L x 356 W x 368 H mm)55 lbsUL, CE90 day limited warranty on parts. Excluding wearables and labor.
