Formax AutoSeal FD 1406 Low-Volume Pressure Sealer

Name: Formax AutoSeal FD 1406 Low-Volume Pressure Sealer
Brand: Formax
SKU: FD1406

$4,547.50

Price Match Guarantee*

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# FD1406

Compact and User-Friendly: Designed for easy installation and operation, perfect for any workspace.
Versatile Folding Options: Supports multiple fold types including Z, C, and custom folds to meet diverse mailing needs.
High Monthly Capacity: Capable of processing up to 30,000 forms per month, ideal for high-volume mailing tasks.
Reliable Feeding System: Drop-in top feed system ensures consistent and dependable form feeding without paper fanning.

Product Description

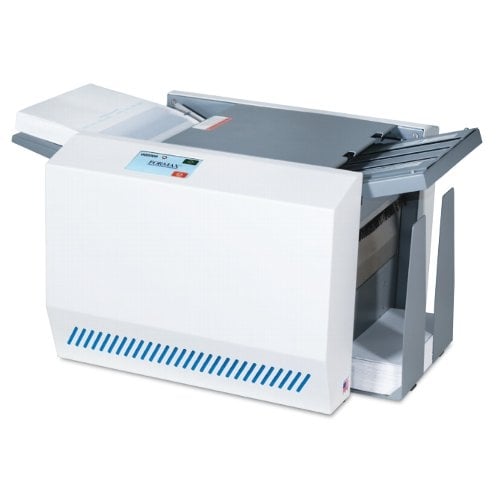

The FD 1406 AutoSeal is a compact, user-friendly low-volume pressure-seal solution designed to efficiently process one-piece pressure-sensitive mailers at speeds of up to 73 forms per minute and lengths up to 14”. It features a color touchscreen control panel with intuitive graphics, clearly marked and easily adjustable fold plates pre-set for standard 11” and 14” forms, a drop-in top feed system for simple loading, and a six-digit resettable counter for job tracking. Built in the USA with proven Formax technology, the FD 1406 delivers reliable daily performance in a sleek desktop design, providing an economical and dependable choice for offices and small-volume mail operations.

Product Details

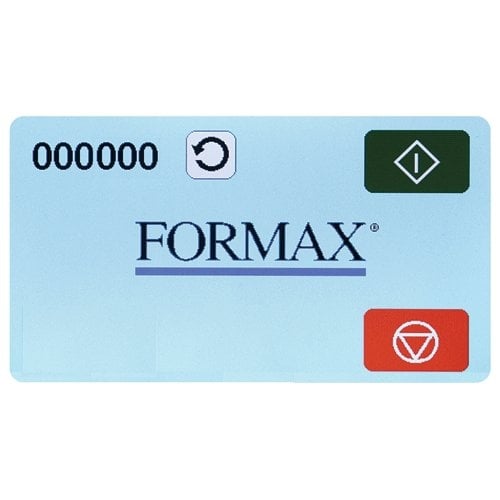

Color Touchscreen Control Panel: Simple, intuitive operation.

Compact Desktop Design: Fits easily in small office spaces.

Drop-In Top Feed System: Quick and hassle-free loading.

14” Form Length Capability: Handles a wide range of document sizes.

Fast Processing: Folds up to 73 forms per minute.

Multiple Fold Types: Z, C, uneven Z, uneven C, half fold, and custom folds.

160-Form Hopper Capacity: Supports longer, uninterrupted runs.

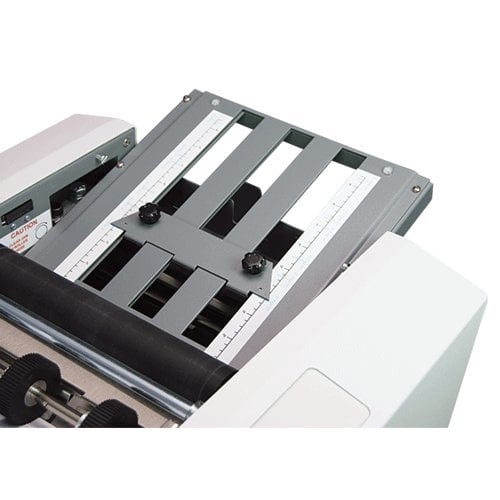

Pre-Marked, Easy-to-Adjust Fold Plates: Speeds up setup and changeovers.

Six-Digit Resettable Counter: Tracks job quantities accurately.

Adjustable Catch Tray: Keeps folded forms neatly organized.

Adjustable Infeed Side Guides: Ensures proper document alignment.

Specifications

Hopper Capacity: Up to 160 Sheets 20#

Fixed Speed: Up to 73 sheets per minute - based on 11" "Z" fold

Paper Size: Up to 8.5" W x 14" L

Monthly Duty Cycle: Up to 30,000/month

Power: 120 Volts AC 50/60Hz

Dimensions: 24” L x 17” W x 13” H (610 x 432 x 330mm)

Weight: 81 lbs (37kg)

Certifications: UL, CE and CUL Approved

Manufacturer's Warranty : 90 day Manufacturer's Warranty on parts and labor

Compare to Similar Pressure Sealers

Model Name

Model

Hopper Capacity

Fixed Speed

Infeed Capacity

Paper Size

Fold Settings

Monthly Duty Cycle

Power

Dimensions

Weight

Safety Certifications

Warranty
AutoSeal FD 1000

N/A

Up to 24 pre-folded forms per minute, based on 8.5" form width

Single folded form

Up to 5.5" wide (folded dimensions)

Pre-folded by hand

N/A

110V, 60Hz

9.5" L x 6.25" W x 6.75" H (241 L x 159 W x 171 H mm)

25 lbs (11 kg)

N/A

90 day limited warranty on parts. Excluding wearables and labor.
AutoSeal FD 1406

Up to 160 Sheets 20#

Up to 73 sheets per minute - based on 11" "Z" fold

N/A

Up to 8.5" W x 14" L

N/A

Up to 30,000/month

120 Volts AC 50/60Hz

24" L x 17" W x 13" H

81 lbs

UL, CE and CUL Approved

90 day warranty on parts and labor.
AutoSeal FD 1202

Up to 160 forms 20#

Up to 38 forms per minute

N/A

Up to 8.5" W x 14" L (216 W x 356 L mm)

N/A

N/A

FD Model (120 Volts AC 50/60Hz) and FE Model (220 Volts AC 50/60Hz)

11.6" L x 14" W x 14.5" H (294 L x 356 W x 368 H mm)

55 lbs

UL, CE

90 day limited warranty on parts. Excluding wearables and labor.

Video

Formax AutoSeal FD 1406 Demo Video

Transcript :

Formax presents the FD1406 touchscreen tabletop pressure sealer. The FD 1406 auto-seal pressure sealer. With its touchscreen control panel is the ideal low volume solution for pressure sensitive one piece mailer including checks, invoices, and marketing pieces. Pressure seal forms can be used for any document that can be printed and folded on one sheet eliminating the cost of envelopes creating a sealed mail ready piece. The FD 1406 is one of the first tabletop pressure sealers in the industry to feature a color touchscreen control panel with internationally recognized symbols in place of text. Itš™s incredibly user-friendly clearly marked fold plates, a three tire drop-in feed system and the ability to process up to 73 forms per minute allow users to complete daily processing jobs with ease. The FD 1406 is pre-marked for standard folds. An 11 inch and 14 inch paper sizes and can also be easily set for custom folds including eccentric c and c fold mailers. To set up and operate the FD 1406, begin by lifting the feed table and adjusting the side guides. Next, set the stop position for the top fold plate, lift and remove the top cover, then loosen the black knobs and slide the fold stop to the correct setting on the fold plate. Tighten the knobs and replace the top cover. To set the bottom fold plate, remove the fold plate, repeat the same process as the top fold plate and replace. When setting a half fold, simply remove the lower fold plate and rotate 180 degrees so the metal stop is leading and replace it as shown. Now load the printed forms into the feeder and touch the green start icon. The resettable counter keeps an accurate count of the processed forms. Before you know it, the forms are folded, sealed and ready for the mail in one streamlined process. The FD 1406 tabletop pressure sealer is proudly made n the USA and built to last. With its intuitive touchscreen interface, itš™s an ideal solution for streamlining your mail processing.
