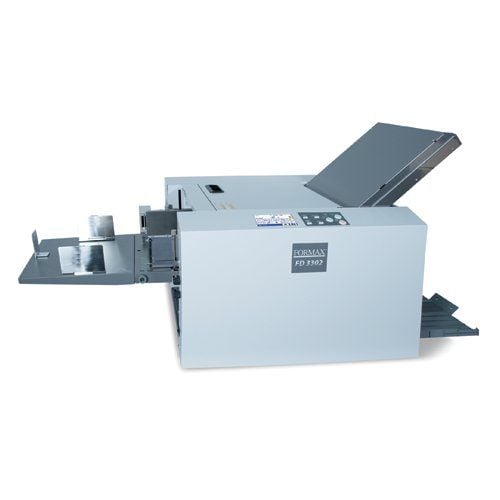

Formax FD 3302 Air-Suction Document Folder
Flexible Financing for Businesses
Qualifying businesses can get the equipment and supplies they need with Pay Over Time or Enterprise Net 30 payment options.
Easy-Apply at Checkout
Just add to cart & continue to checkout
- Air-Suction Feed System: Designed to easily handle static buildup in digital prints and minimize feed marks
- 4.3” LCD Color Touchscreen Control Panel: User friendly, with energy-saving mode
- Pre-Programmed with 6 Standard Folds: C, Z, Half, Fold Out, Gate and Double Parallel
- Custom Folds: Up to 30 custom folds can be programmed and stored into memory
ProductDescription
Product Details
- Operating Features:
- Air-Suction Feed System: Designed to easily handle static buildup in digital prints and minimize feed marks
- 4.3” LCD Color Touchscreen Control Panel: User friendly, with energy-saving mode
- Extended Infeed: Accommodates sheets up to 25.5” long
- Automatic Paper Size Detection: Recognizes the most popular paper sizes including letter, legal, ledger, half letter and half legal
- Side Air System: External fan enhances feeding of heavy stock and large paper sizes
- Adjustable Air Flow: Allows for feeding consistency of varying paper weights / sizes
- Double Feed Detection: Optical and ultrasonic sensors ensure document integrity
- Outfeed Stacking Belt & Rollers: Automatically adjust to paper size for optimal stacking
- Batch Counting: Programmable to process pre-set number of sheets into sets with a delay between sets
- Idling Function: Standby mode used to pause for double or misfeed. All other functions are still operational, minus the output drive.
- Folding Features:
- Pre-Programmed with 6 Standard Folds: C, Z, Half, Fold Out, Gate and Double Parallel
- Custom Folds: Up to 30 custom folds can be programmed and stored into memory
- Cross-Folding: A guide is included for two-pass operation
- Technical Features:
- Noise Reduction: Fold plates are enclosed and insulated to reduce operating noise
- Built-in DC Fans: Provide quieter operation than external pumps
- Seven-Point Fold Stops: Fold plates utilize seven point fold stops for crisp, accurate folds of large paper sizes at high speeds
- Four-Digit Counter: Includes addition, batch and interval counting
- Adjustable Stack Height Lever: Five positions can be easily chosen to increase or decrease paper stack height to better feed thick and thin paper stocks
- Four Fold Rollers: Produce crisp, precise folds
- Fault Detection Features: Paper Out, Misfeed, Double Feed, Paper Jam, Top Cover Open, Paper Size Error
- Easy Access to Paper Path: Easily clear paper jams
- Options:
- 402 Series Air Jogger: Reduces static electricity and aligns forms for proper feeding
Item Specifications
- Speed: Up to 18,600 sheets/hour (11”, single fold) Five speed levels
- Hopper Capacity: Up to 1.96” high, 625 sheets (64gsm)
- Pre-Set Folds: C, Z, Half, Fold Out, Gate, Double Parallel, Custom, Cross Fold created by feeding through a second time
- Custom Folds: Up to 30
- Paper Size: 4.73” x 7.2” up to 12.2” x 25.5”
- Paper Weight: Uncoated: 52.3 - 157gsm (14 - 40#)
- Coated: 73.3 - 157gsm (19 - 40#)
- Maximum: Up to 230gsm (single fold) [Maximum paper weight 230gsm with limitations. Testing is required.]
- Feed Type: Air suction belt
- Double Feed Detection: Optical and ultrasonic sensors
- Dimensions: 53.3" L x 23.2" D x 24.2" H
- Weight: 157 lbs
- Power: 110-240V, 50/60 Hz
Demonstration Video
Formax FD3302 Air Fed Paper Folder Overview Video
Formax presents the FD 3302 Air Suction Document Folder. The Formax FD 3302 Air Suction Folder offers high performance in a space-saving tabletop unit that can fold documents up to 25 inches in length. Fully automated, compact, and quiet, it's ideal for processing on-demand digitally printed documents in any print finishing environment. The air suction feed technology in the FD 3302 is designed to handle heavy or coated stock and helps to eliminate feed marks common in friction feed systems. In place of an external air pump, the FD 3302 uses internal fans to produce suction, giving it a smaller footprint and making it one of the quietest air-fed folders available today. Fan speed and airflow can be adjusted independently using the control panel and external adjustment knobs. In addition, the side air adapter enhances the feeding of heavier stock and larger sheets of paper by providing additional airflow to increase separation.
The FD 3302 offers a range of user-friendly features, including touch screen operation, automatic fold plate settings, automatic paper size detection, and optical and ultrasonic double feed detection for enhanced document integrity. The easy-to-use 4.3-inch color touch screen LCD control panel provides intuitive setup and operation. Users can easily access six common folds and can store up to 30 custom folds in memory. In addition, the variable speed can be set for optimal folding of a range of paper thicknesses. At top speed, the FD 3302 processes up to 18,600 sheets per hour, producing crisp, accurate folds. To operate the FD 3302, simply load up to 625 sheets in the infeed tray, adjust the fan speed and airflow, choose the fold type, and press start. As seen here, the infeed tray automatically raises up, and as the air is applied, the forms separate for accurate and consistent feeding. The outfeed stacking belt and rollers adjust automatically to keep the folded pieces neat and orderly. Common applications include brochures, menus, greeting cards, letters, direct mail pieces, and more. The FD 3302 Air Suction Document Folder is ideal for processing on-demand digitally printed documents up to 25 inches in length in any print finishing environment.
