Product Description
For high-performance paper folding of digitally printed documents on heavy and coated stock, consider the FD 3302 Air Suction Folder. This compact tabletop unit features an air-suction feed technology that reduces static electricity. This technology also minimizes feed marks commonly found in traditional friction feed systems. The folder can process up to 18,600 sheets per hour, speeding up the process us a feed tray with a 625-sheet capacity. With its speed and power, the machine can cover a range of applications. A side air system is also included in the feeding system to handle heavier stocks and larger sheets of paper. It can fold documents up to 25.5” long in different weights. An extended infeed tray with variable fan speed and airflow can be adjusted independently using the interactive control panel and external adjustment knobs. User-friendly features include automatic paper size detection and fold plate settings, a 4.3” color touchscreen LCD control panel, six programmed fold settings, and the ability to store up to 30 custom folds. It also includes a cross folding guide, a four-digit counter with batch counting capability, four fold rollers for accuracy, and document security features.
Product Details
- Operating Features:
- Air-Suction Feed System: Designed to easily handle static buildup in digital prints and minimize feed marks

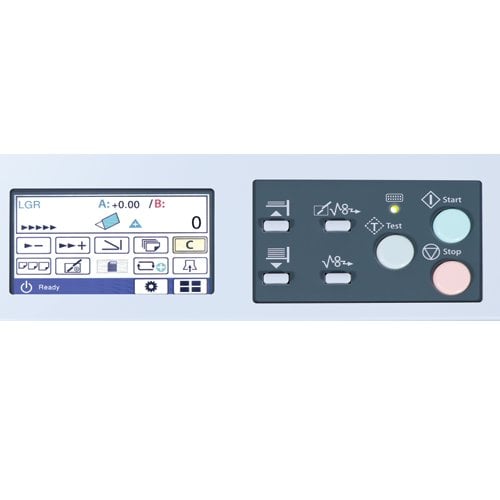

- 4.3” LCD Color Touchscreen Control Panel: User friendly, with energy-saving mode

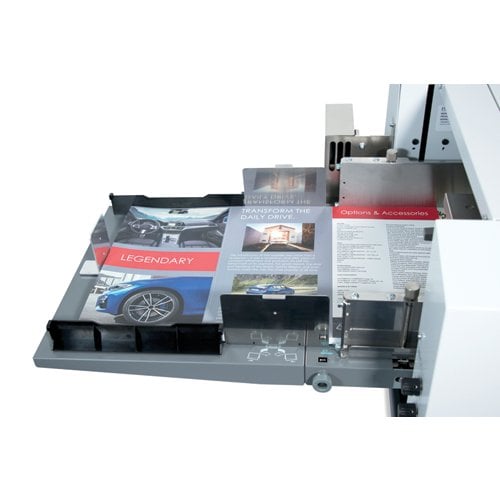

- Extended Infeed: Accommodates sheets up to 25.5” long
- Automatic Paper Size Detection: Recognizes the most popular paper sizes including letter, legal, ledger, half letter and half legal

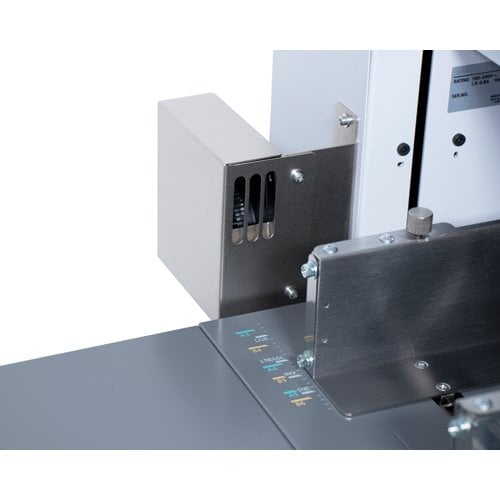

- Side Air System: External fan enhances feeding of heavy stock and large paper sizes
- Adjustable Air Flow: Allows for feeding consistency of varying paper weights / sizes
- Double Feed Detection: Optical and ultrasonic sensors ensure document integrity

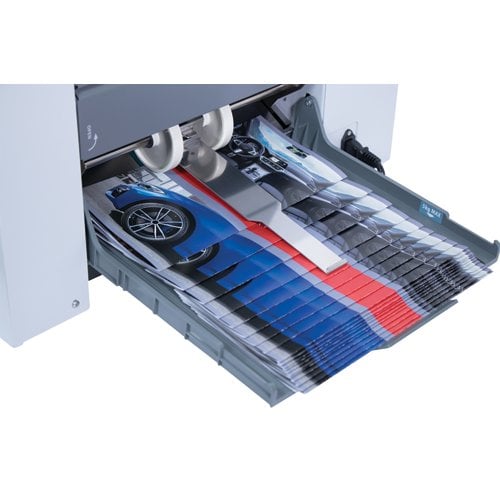

- Outfeed Stacking Belt & Rollers: Automatically adjust to paper size for optimal stacking
- Batch Counting: Programmable to process pre-set number of sheets into sets with a delay between sets
- Idling Function: Standby mode used to pause for double or misfeed. All other functions are still operational, minus the output drive.
- Folding Features:
- Pre-Programmed with 6 Standard Folds: C, Z, Half, Fold Out, Gate and Double Parallel
- Custom Folds: Up to 30 custom folds can be programmed and stored into memory
- Cross-Folding: A guide is included for two-pass operation
- Technical Features:
- Noise Reduction: Fold plates are enclosed and insulated to reduce operating noise
- Built-in DC Fans: Provide quieter operation than external pumps
- Seven-Point Fold Stops: Fold plates utilize seven point fold stops for crisp, accurate folds of large paper sizes at high speeds
- Four-Digit Counter: Includes addition, batch and interval counting
- Adjustable Stack Height Lever: Five positions can be easily chosen to increase or decrease paper stack height to better feed thick and thin paper stocks
- Four Fold Rollers: Produce crisp, precise folds
- Fault Detection Features: Paper Out, Misfeed, Double Feed, Paper Jam, Top Cover Open, Paper Size Error
- Easy Access to Paper Path: Easily clear paper jams
- Options:
- 402 Series Air Jogger: Reduces static electricity and aligns forms for proper feeding
Specifications
- Speed: Up to 18,600 sheets/hour (11”, single fold) Five speed levels
- Hopper Capacity: Up to 1.96” high, 625 sheets (64gsm)
- Pre-Set Folds: C, Z, Half, Fold Out, Gate, Double Parallel, Custom, Cross Fold created by feeding through a second time
- Custom Folds: Up to 30
- Paper Size: 4.73” x 7.2” up to 12.2” x 25.5”
- Paper Weight: Uncoated: 52.3 - 157gsm (14 - 40#)
- Coated: 73.3 - 157gsm (19 - 40#)
- Maximum: Up to 230gsm (single fold) [Maximum paper weight 230gsm with limitations. Testing is required.]
- Feed Type: Air suction belt
- Double Feed Detection: Optical and ultrasonic sensors
- Dimensions: 53.3" L x 23.2" D x 24.2" H
- Weight: 157 lbs
- Power: 110-240V, 50/60 Hz
- Spiral / Binding101 Part Number: 04FXFD3302
Video

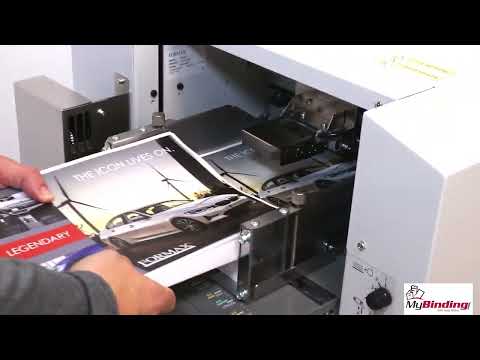

Formax FD3302 Air Fed Paper Folder Overview Video
