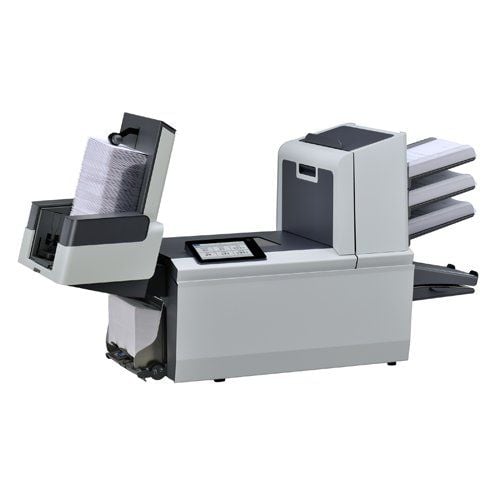

The Formax FD 6308 Series Fully Automatic Folder/Inserter is a fully automatic inserter with high capacity and user-friendly features. Choose from four models, each with or without intelligence, to meet the needs of any size office or small mailroom. It features a 7” full-color touchscreen control panel with graphical interface, a locking thumbwheel adjustment for the envelope side guides, and a paper path window which allows users to see the insert area without stopping or opening the inserter. The 3 standard feeders can handle up to 325 sheets each and its High-Capacity Vertical Stacker holds up to 500 finished envelopes in a neat, sequential stack. It can process documents of different lengths and thicknesses simultaneously at speeds of up to 3,800 pieces per hour and up to 40,000 pieces per month. This Formax model can be configured with a CIS scanner that can read OMR, 1D and 2D barcodes, as well as QR. For your growing mailing needs, choose Formax FD 6308 Inserter.
Product Details
Standard Features:
4 Standard Models Available: Configurations are available with or without intelligence
7” Color Touchscreen Control Panel: Graphical interface provides quick, easy setup
50 Programmable Jobs: Handy for recurring or frequently processed applications
High-Capacity Vertical Stacker: Holds up to 500 finished envelopes in a neat, sequential stack
Fully Automatic Adjustments
Envelope & Paper Presence Sensors: Graphic indicators appear on the touchscreen control panel
AutoSet: Automatically senses and sets paper length, fold type, envelope size, fold length and double document detection.
Clamshell Design: Easy access to the paper path
Visible Insert Area: Window allows users to see the insert area without stopping or opening the inserter
Accumulate Before Folding: Documents are folded and inserted together
Electromechanical Double Document Detection: Most reliable method, unaffected by paper color
Locking Envelope Side Guides: Envelope infeed has a lockable thumbwheel to ensure accurate feeding
Eco Mode: Energy-saving feature places the inserter into sleep mode after 1 hour of inactivity
Abilities:
Multiple Insert Capability: Fold and/or insert sheets, BREs and cards in almost any combination
Multifeeding: Allows for a set number of pieces to be pulled from one feeder, then collated, folded and inserted automatically
Fold Types: C, V, Z, Double Parallel, No Fold
Full-Page CIS Scanner: Spans the width of the feeders and reads OMR, 1D and 2D BCR codes printed horizontally or vertically anywhere on the page, without the need for physical adjustments
Fold Only without Inserting
Daily Mail Mode: For inserting stapled sets
Seal and Non-Seal Capabilities
Cascade Mode: Maximizes output by connecting multiple feeders with the same document. When one feeder empties, the next automatically starts feeding, for a total hopper capacity of up to 975 sheets.
Enhanced Folding System: Fold/insert up to 8 pages in tri-fold and up to 10 pages in half-fold
Options:
Production Feeder: High capacity feeding of inserts up to 6” long, or up to 14” long with optional license
Short Feed Trays: For feeding BREs and short inserts
Advanced OMR, Advanced BCR, MailDoc: Designed for the most secure intelligent mail processing
Side Exit Tray: Holds up to 400 envelopes
Item Specifications
Speed: Up to 3,800 pieces per hour
Duty Cycle: Up to 40,000 pieces per month
Standard Feeders: Up to 325 sheets each, 20# bond
High-Capacity Feeder (Standard 2F, Special 2F, Standard 2FP models): Up to 725 sheets, 20# bond
Envelope Hopper: Up to 325 envelopes, top-loading
High-Capacity Vertical Stacker: Up to 500 filled envelopes
Sheet Size: 3.5” - 14” H x 5” - 9” W
Programmable Jobs: 50
Maximum Insert Thickness: 1mm
Maximum Set Thickness: 2.5mm
Envelope Size: 3.5” - 6.4” H x 5.5” - 9.8” W (Paper & envelope specifications may vary. All media must be tested.)
Set Thickness: Up to 2.5 mm
Dimensions: 51” L x 29” H x 20” W
Weight: 175 lbs. (3 stations)
Voltage: 120V AC, 60 Hz
Demonstration Video
Formax FD 6308 Office Inserter Demo Video
Transcript :
Formax presents the 6308 series inserters. Formax, 6308 series inserters are compact, easy to use and energy efficient, ideal for adapting to a variety of Office mailing needs. These inserters can process up to 40,000 mail pieces per month at speeds of up to 3800 per hour, saving both time and money. A seven inch color touchscreen automatic job setup and 50 programmable jobs make operation easier than ever before. The superior clamshell cover design provides users with easy access to make adjustments and to clear the paper path. The 6308 also features a convenient shelf for mail preparation an ...
Formax presents the 6308 series inserters. Formax, 6308 series inserters are compact, easy to use and energy efficient, ideal for adapting to a variety of Office mailing needs. These inserters can process up to 40,000 mail pieces per month at speeds of up to 3800 per hour, saving both time and money. A seven inch color touchscreen automatic job setup and 50 programmable jobs make operation easier than ever before. The superior clamshell cover design provides users with easy access to make adjustments and to clear the paper path. The 6308 also features a convenient shelf for mail preparation and a paper path window, which allows users to see the insert area while in operation for energy savings. The 6308 series includes an automatic sleep mode, which puts the inserter into standby after one hour of being idle. A high capacity vertical output stacker holds up to 500 sealed or unsealed finished pieces in a neat sequential stack, making them easy to unload for further processing. The user friendly color touchscreen control panel features a graphic user interface with paper and envelope present sensors to indicate when a feeder is empty. In addition, models can be configured with an intelligent Mark CIS scanner for seamless and secure processing of multi page documents, including invoices or statements. Three feeder styles are available for optimal performance. The standard size feeder holds up to 325 sheets. The high capacity feeder holds up to 725 sheets. And the optional production feeder holds up to 1200 inserts, or 325 business reply envelopes. The 6308 series comes in four configurations, available with or without intelligence, including a three station configuration with three standard feeders, a three station configuration with a combination of standard and special feeders, a two station configuration with one standard feeder and one high capacity document feeder, a two station configuration with one special feeder and one high capacity document feeder. Operating the 6308 is simple and intuitive. Begin by loading the feeders. The standard size feeders can be linked for a total capacity of up to 975 sheets. Next load the envelope feeder with up to 350 envelopes. The bottom feed system allows for envelopes to be loaded on fly for continuous operation with the feeders loaded, choose either automatic or the step by step job wizard to set up the mailing the automatic setting will detect the document and envelope sizes and automatically fold and insert the mail pieces based on this information, press the 1x button for a test piece. Check the piece to be sure it's correct, if the documents are accurately folded and inserted, press the mail OK button, then press the Start button to begin processing. The job can be saved into memory for future use. The formax 6308 series inserters combine user friendly features with high productivity and are ideal solutions for a growing office environment.
