Product Description
The Formax FD 6308 Series Fully Automatic Folder/Inserter is a fully automatic inserter with high capacity and user-friendly features. Choose from four models, each with or without intelligence, to meet the needs of any size office or small mailroom. It features a 7” full-color touchscreen control panel with graphical interface, a locking thumbwheel adjustment for the envelope side guides, and a paper path window which allows users to see the insert area without stopping or opening the inserter. The 3 standard feeders can handle up to 325 sheets each and its High-Capacity Vertical Stacker holds up to 500 finished envelopes in a neat, sequential stack. It can process documents of different lengths and thicknesses simultaneously at speeds of up to 3,800 pieces per hour and up to 40,000 pieces per month. This Formax model can be configured with a CIS scanner that can read OMR, 1D and 2D barcodes, as well as QR. For your growing mailing needs, choose Formax FD 6308 Inserter.
Product Details
- Standard Features:
- 4 Standard Models Available: Configurations are available with or without intelligence

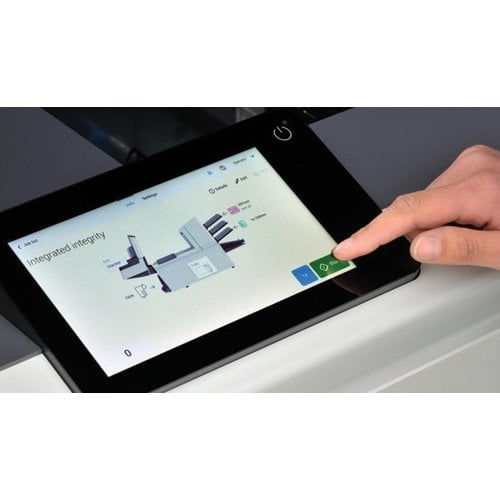

- 7” Color Touchscreen Control Panel: Graphical interface provides quick, easy setup
- 50 Programmable Jobs: Handy for recurring or frequently processed applications
- High-Capacity Vertical Stacker: Holds up to 500 finished envelopes in a neat, sequential stack
- Fully Automatic Adjustments
- Envelope & Paper Presence Sensors: Graphic indicators appear on the touchscreen control panel
- AutoSet: Automatically senses and sets paper length, fold type, envelope size, fold length and double document detection.
- Clamshell Design: Easy access to the paper path

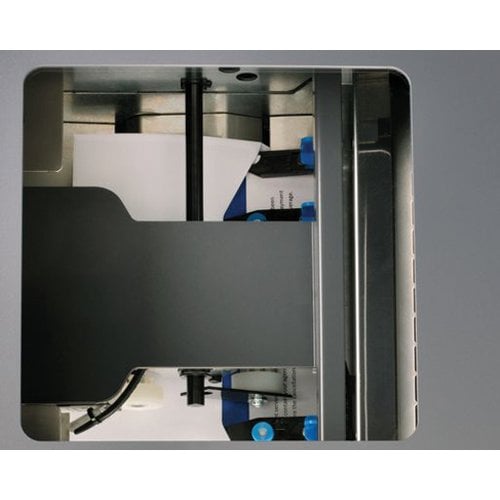

- Visible Insert Area: Window allows users to see the insert area without stopping or opening the inserter
- Accumulate Before Folding: Documents are folded and inserted together
- Electromechanical Double Document Detection: Most reliable method, unaffected by paper color
- Locking Envelope Side Guides: Envelope infeed has a lockable thumbwheel to ensure accurate feeding
- Eco Mode: Energy-saving feature places the inserter into sleep mode after 1 hour of inactivity
- Abilities:
- Multiple Insert Capability: Fold and/or insert sheets, BREs and cards in almost any combination
- Multifeeding: Allows for a set number of pieces to be pulled from one feeder, then collated, folded and inserted automatically
- Fold Types: C, V, Z, Double Parallel, No Fold
- Full-Page CIS Scanner: Spans the width of the feeders and reads OMR, 1D and 2D BCR codes printed horizontally or vertically anywhere on the page, without the need for physical adjustments
- Fold Only without Inserting
- Daily Mail Mode: For inserting stapled sets
- Seal and Non-Seal Capabilities
- Cascade Mode: Maximizes output by connecting multiple feeders with the same document. When one feeder empties, the next automatically starts feeding, for a total hopper capacity of up to 975 sheets.
- Enhanced Folding System: Fold/insert up to 8 pages in tri-fold and up to 10 pages in half-fold
- Options:
- Production Feeder: High capacity feeding of inserts up to 6” long, or up to 14” long with optional license
- Short Feed Trays: For feeding BREs and short inserts
- Advanced OMR, Advanced BCR, MailDoc: Designed for the most secure intelligent mail processing
- Side Exit Tray: Holds up to 400 envelopes
Specifications
- Speed: Up to 3,800 pieces per hour
- Duty Cycle: Up to 40,000 pieces per month
- Standard Feeders: Up to 325 sheets each, 20# bond
- High-Capacity Feeder (Standard 2F, Special 2F, Standard 2FP models): Up to 725 sheets, 20# bond
- Envelope Hopper: Up to 325 envelopes, top-loading
- High-Capacity Vertical Stacker: Up to 500 filled envelopes
- Sheet Size: 3.5” - 14” H x 5” - 9” W
- Programmable Jobs: 50
- Maximum Insert Thickness: 1mm
- Maximum Set Thickness: 2.5mm
- Envelope Size: 3.5” - 6.4” H x 5.5” - 9.8” W (Paper & envelope specifications may vary. All media must be tested.)
- Set Thickness: Up to 2.5 mm
- Dimensions: 51” L x 29” H x 20” W
- Weight: 175 lbs. (3 stations)
- Voltage: 120V AC, 60 Hz
Video

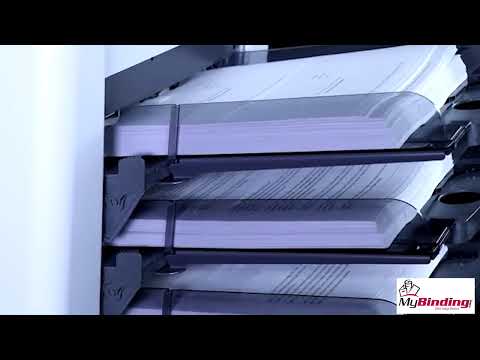

Formax FD 6308 Office Inserter Demo Video
Transcript :
