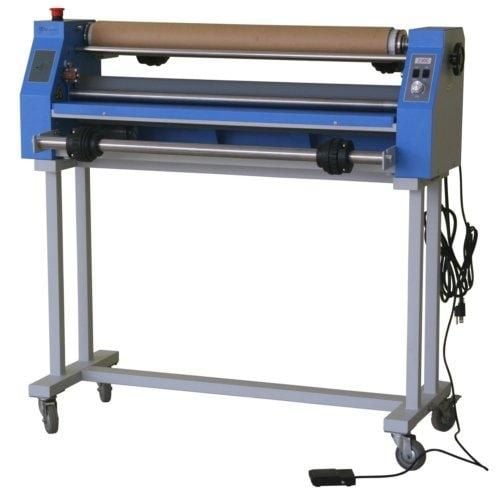

The GFP 230C is a 30" compact cold laminator that delivers consistently professional results, making it ideal for photo studios, copy shops and graphic designers. This versatile laminator can laminate, mount and pre-mask tape. It has a laminating width of up to 30" at a speed of up to 11.5 feet per minute. Its intuitive controls made this laminator user-friendly. The 230C needs only 5 square feet of space and fits easily in your office. When not in use, just simply roll it away. This GFP 230C 30" Cold Roll Laminator is the perfect complement to the latest wide format inkjet printers.
Product Details
Can mount, laminate, pre-mask tape
Simple to operate: forward/reverse, run/foot and variable speed.
Designed for small operations
Intuitive controls
Rugged, reliable, feature-rich
Fits easily in your office. Uses less than 5 square feet
Transcript :
"Now we're going to take this image that we printed out on paper, and we're actually going to mount it to this 3/16 foam board, which has already been pre-coated with a mounting adhesive on one side. And we're going to start by we have to get our roller to the right thickness and right gap. So, we're going to take our leader board, which is the same thickness as our board, we're going to run our foam board, and we're going to place it between the rollers. And all we're going to do is we're going to take our pressure dial here, and we're just going to come down onto the board until we get it to ...
"Now we're going to take this image that we printed out on paper, and we're actually going to mount it to this 3/16 foam board, which has already been pre-coated with a mounting adhesive on one side. And we're going to start by we have to get our roller to the right thickness and right gap. So, we're going to take our leader board, which is the same thickness as our board, we're going to run our foam board, and we're going to place it between the rollers. And all we're going to do is we're going to take our pressure dial here, and we're just going to come down onto the board until we get it to grab it like that. Then, all I'm going to do to get this out is going to flip it to reverse, step on my pedal, and run this board, the leader board out of the machine and then back into forward. So now, we've come over to our table where we're going to get our print and our foam board ready to run through the laminator.
So, what I'm going to do is I'm going to take my liner off my adhesive on the board and just peel it back a couple of inches and make like a hinge here so I can actually tack my start of my print down. So, like that, I'm going to take my print, I'm going to do my best to line this print up to the board, get that leading edge right, and then kind of look at where I'm at here and then I'm just going to go and tack it down across the lead edge.
Okay, back at the laminator, I'm going to take my foam board and I'm going to place it on the table and feed it up to the rollers. And what I'm going to do is I'm just going to step on my pedal and just let it grab it, just give it a quick step, push it in, and let it grab that lead edge. Then, I'm going to take my print and I'm going to run it over the roller like this and what I'm going to do is I'm going to kind of grab my print, try to hold it tight to the roller, grab my liner at the same time, and kind of as I'm pulling my liner back and running it through with the foot pedal, I'm going to try to keep my print tight to that bar. I'm going to use the pedal here but you can put it in run on this machine and run it, flip through so I can actually flip it to run as I'm on and come off the pedal always making sure my liner, you're pulling it and making sure the liner does not go back into the roller and underneath and ruin your print so kind of just keep an eye on that kind of keep your pressure on your print as it's coming around and then try to kind of that trail edge try to almost like try to grab it give it some tension give it some back tension so when it flips back down it doesn't worry about getting like a crease in it and then it'll run through and we have our finished product.
"
230C Installation & Assembly Video
Transcript :
"GFP 230C Cold Roll Laaminator
Installation & Assembly
Required Tools:
#2 Philipps Screwdriver (or electric with #2 Phillips bit)
Metric Allen Wrenches (supplied in a crate)
Adjustable Wrench or pliars
Knife
GF0 230C Laminator
Inspecting the crate for damage.
Inspect the crate for any physical damage. Bring any damage to the immediate attention of the carrier.
Opening the crate. Remove the screws from the bottom of the crate. Inspect the contents of the crate. Lay out the stand components and hardware. Note the position of the stand legs, indent to the inside. Install the cross m ...
"GFP 230C Cold Roll Laaminator
Installation & Assembly
Required Tools:
#2 Philipps Screwdriver (or electric with #2 Phillips bit)
Metric Allen Wrenches (supplied in a crate)
Adjustable Wrench or pliars
Knife
GF0 230C Laminator
Inspecting the crate for damage.
Inspect the crate for any physical damage. Bring any damage to the immediate attention of the carrier.
Opening the crate. Remove the screws from the bottom of the crate. Inspect the contents of the crate. Lay out the stand components and hardware. Note the position of the stand legs, indent to the inside. Install the cross members using the associated bolts. Note: always place lock washer against bolt head or screw. Do not tight the bolts until all have been installed. Tighten bolts with provided Allen wrench.
Placing the machine on the stand. Remove the 4 nuts securing the machine to the skid. Identify the lifting points and positing holes. Use 2 people to lift the unit and place on the stand. The machine's front must be on same side as locking casters. Remove the crate bolts. Unlatch the feed table and remove the packing screws. Swing the table up to access the rollers. Remove all packing foam.
Installing the Upper and Lower Unwind Brackets
Installing the Foot Pedal and Utility Basket
Install the Foot Pedal Cord and Utility Basket
"
Gfp Applications - PSA Overlaminate on Printed Vinyl using the Gfp 220C or 230C Laminators
Transcript :
"So now we're going to do a single side lamination with a cold laminate here onto a roll of printed media that we print on vinyl here. We're going to start by loading up our film onto our back supply shaft or rear supply shaft by opening our cradles, removing the shaft, coming over to our film, simply putting the shaft into the roll laminating film, twisting, and putting the shaft back into the cradles. Now, we're just going to close up our cradles, and we can align this with our ruler that's on our shaft. We got an 18-inch roll here, so we're going to just put it between the nines and leave t ...
"So now we're going to do a single side lamination with a cold laminate here onto a roll of printed media that we print on vinyl here. We're going to start by loading up our film onto our back supply shaft or rear supply shaft by opening our cradles, removing the shaft, coming over to our film, simply putting the shaft into the roll laminating film, twisting, and putting the shaft back into the cradles. Now, we're just going to close up our cradles, and we can align this with our ruler that's on our shaft. We got an 18-inch roll here, so we're going to just put it between the nines and leave that be.
Now, we're going to come to our media. So, we're going to remove our lower supply shaft and do practically the same thing. We're going to remove the shaft, put our roll of vinyl, come through, and then into the cradles, close our cradles, and center our roll. Another way to web it up, another method I'm going to start the same way. We got to get our film to the release liner take-up to get our release liner off. I'm going to pull the tape, pull back and spin back up, and then we're going to take our film again and go under our take-up KN around the front hand Wheel bar and spin our take-up and get our film across here.
We're going to take our knife, our blade, being safe and be around the rollers and just score our film. We're going to separate our film. What we're going to do is we're going to bring it down to the front of the roller, the top roller, kind of just tuck it for a second, then going to lift our table and then just bring it down past the bottom roller about a couple of inches past the bottom roller and just let it hang close my table. Then I'm going to grab my leader board and I'm just going to push that into the rollers and just run that a few inches till I have a little bit here left. And what I'm going to do is I'm going to take some tape, some heavier tape, and just take a piece of that and stick that for a second here.
I'm going to bring my roll of prints and just pull up and I'm going to stick it to the lead edge of the board and tape it down good and just make sure. Now that I got it in place, I'll take a second piece of tape just to be safe and then run it. What will happen is once we're through the board, the roller will stop, the machine will stop, and we just come down and just close our roller until we hit that stop point and then a little bit more, a 12th of a turn, watch our liner here. We're going to slow down our take-up and just let it run, and we're good to go."
