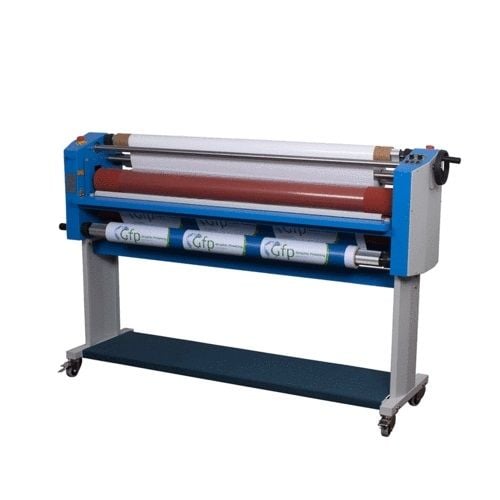

GFP 363TH 63" Top Heat Laminator
- Adds top heat for better overlamination, mounting, and board pre-coating.
- Laminating Width: 55"
- Easy set-up and low maintenance with a top heat boost.
- Laminating Speed: 20 ft/min
- Oversize / Truck shipping
Starting At
$7,500.25
Choose Product Below
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
- 3
- 4
| Product Name | Item Number | Price | Qty | ||
|---|---|---|---|---|---|
| Dust Cover for GFP 363TH & 263C Laminators | 04GFP363CDC | $104.95
|
|||
| GFP OEM On-Site Installation and Operator Training | 04GFPOSIOT | $1,892.41
|
|||
| GFP 363TH 63" Top Heat Wide Format Roll Laminator | 363-TH | $7,500.25
|
Product Description
The GFP 363TH 63" Top Heat Wide Format Roll Laminator adds top heat for better overlamination, mounting, and board pre-coating. It is an affordable option for pressure-sensitive applications. It has a rugged construction, labor-saving features, and high quality output in an entry level machine. The GFP 363TH has a laminating width of up to 63" with a speed of up to 20 feet per minute. Other great features include: Integrated Rear Rewind for easy Roll-to-Roll applications, Media Alignment Disks that prevent media supply roll from telescoping during operation, and Photoelectric eye for operator safety. This GFP 363TH 63" Top Heat Wide Format Roll Laminator is backed by a 1-year Manufacturer's Warranty on parts and labor.
Product Details
- Adds top heat for better overlamination, mounting, and board pre-coating
- Easy set-up and low maintenance with a top heat boost.
- Labor saving 3" Aluminum Quick-Grip film shafts.
- Integrated rear rewind for roll-to-roll apps.
- Swing-up feed table and 38" output height.
- Photoelectric eye for operator safety.
- Metal Alloy heater reduces breakage.
- 5" diameter rollers.
- Media Alignment Disks prevent media supply roll from telescoping during operation.
- Stand, Foot Switch and Rewind included
- Applications: Signs, Banners, Trade show displays, Point-of-purchase, Dry-erase boards, Floor graphics, Graphic mounting, Photo mounting, Window graphics, and Vehicle graphics.
Item Specifications
- Laminating Width: 55"
- Roller Diameter: 4.5"
- Roller Gap: 1"
- Main rollers: Rubber
- Rear rewind: Integrated
- Maximum temperature: 122°F
- Laminating speed: 20 ft/min
- Unwinds: Top/Bottom
- LinerRewind: ChainDrive
- Pressure adjustment: Hand Wheel
- Tension adjustment: Single knob
- Heat method: Metal Alloy heater
- Max. roll diameter: 6" OD
- Power Supply: 120v 11A
- Power Consumption: 1300W
- Foot Pedal: Included
- Stand with casters: Included
- Net Weight w/ stand: 329 lbs.
- Dimensions: 72" x 23.5" x 48.5"
- Shipping Dimensions: 436 lbs. 79" x 26" x 31"
- Manufacturer's Warranty: One Year Parts & Labor
