Product Description

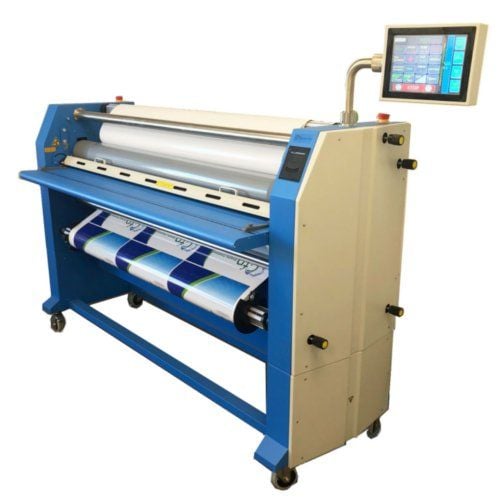

Expand your finishing expertise with GFP 663TH 63" Top Heat Wide Format Cold Laminator. This laminator is equipped with Smart Finishing Technology that is most advanced in wide format finishing. A 10” tablet style LCD display provides accessibility to all functions. The powerful digital touch screen Micro-controller uses microprocessor technology that ensures efficiency, accuracy, and reliability of the laminator. Operators can program, monitor and display all machine functions and view operator tutorials through a powerful digital touchscreen Microcontroller. Professional features include motorized integrated rear rewind offer longer uninterrupted roll-to-roll operation. Three swing out shafts make loading and unloading of rolls quick for easy setup and changeovers. Top Heat Assist reduces silvering for the best quality output and shorter processing time. To label partial roll films, a roll label printer generates pressure sensitive labels with film description and remaining footage, this feature helps operators keep track of film and supplies to aid in supply organization and also cut waste. Adding to labor-saving features, inline rotary slitters eliminate the need for trimming after lamination as it trims the sides of output during lamination. All of these features are built-in to make sure operators have all they need for high quality output and maximum productivity. Improve efficiency and boost profit with GFP 663TH 63" Top Heat Wide Format Cold Laminator!
Product Details
- Laminating Width: 63"
- Roller Diameter: 5"
- Roller Gap: 1"
- Main Rollers: Silicone
- Supply Roll Diameter (Max): 8" OD (top); 16" OD (bottom)
- Supply Shafts: 2 Swing-out
- Rewind Shafts: 2 (1 Swing-out)
- Rear rewind: Included
- Rear Inline Slitters: Rotary Design
- Maximum temperature: 140°F
- Heat method: Metal Alloy heater
- Film Core Size: 3"
- Laminating speed: 0-20 ft/min
- Pressure adjustment: Electric Servo Motor
- Output Height: 38"
- Foot Pedal: Included
- Stand with casters: Included
- Power Supply: 120v 12A
- Power Consumption: 1440W
- Compatible Supplies: 3" Core Pressure Sensitive Roll Film - 1.5-10mil Thick & Up to 63" Wide
Mounting Board - Up to 1" Thick - Compatible Accessories: Dust Cover for GFP 563TH & 663TH Laminators
- Net Weight with stand: 675 lbs.
- Dimensions (W x D x H): 83" x 30.7" x 63"
- Shipping Weight: 908 lbs.
- Shipping Dimensions ( W x D x H): 89" x 35" x 59"
- Manufacturer's Warranty: 1 year parts & labor (Installation is available)
Specifications
- OPERATIONAL DISPLAYS
- Home Screen. displays machine status and links operator to operational screens for quick, efficient access to system setup and adjustments.
- Service Displays. allow fine-tune adjustments and calibrations to operating parameters to increase efficiency and reduce waste.
- Operational Displays. provide instant access for setting and adjusting the operating parameters of each machine function for accuracy, ease, and speed.
- Electric Servo Motor Roller GAP Drive and Encoder. provides precise and repeatable roller gap position to improve accuracy and efficiency.
- Help Tutorials. are visual guides that improve comprehension and retention enhancing employee productivity, proficiency, and confidence.
- Digital Roller Pressure Display. provides easy reference and adjustment for fast, repeatable roller pressure to ensure flat, quality output.
- BUILT-IN PROFESSIONAL FEATURES
- Integrated Rear Rewind. Is motorized for longer, uninterrupted roll-to-roll operation.
- Three Swingout Shafts. Save time loading and unloading rolls for faster setup and change-overs
- Top Heat Assist. Softens film adhesive to reduce silvering for better quality output and to shorten processing time.
- Roll Label Printer. Generates pressure sensitive label with film description and remaining footage for labeling partial film rolls.
- Film Tension Sensor. Is an adjustable alarm that alerts operator to excess web tension ensuring flat, error free output.
- Inline Rotary Slitters. Trim the sides of output during lamination to save time and increase productivity.
