Graphic Whizard PT335 A+ Automatic Creaser
FAQ: 0 Questions, 0 Answers
0 Q&As
Item# PT335-APlus
- Speed: 4800 sph
- Maximum Stock Size: 12.95" x 25.5
- Max. # Creasing Positions: 16
- Program memory: 50
ProductDescription

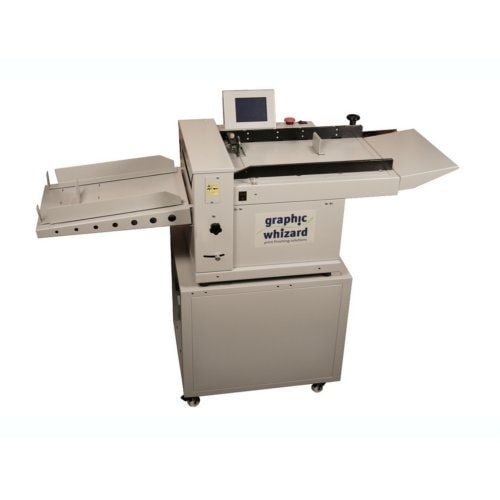

This Graphic Whizard PT335 A+ Automatic Creaser is ideal for your short run creasing tasks. It can process up to a maximum sheet size of 12.95" x 25.5"(39″ handfed) and perform up to 16 creases per sheet. The PT335 A+ features an efficient suction feeder, easy to replace front loading interchangeable crease/perf dies, simple touchscreen controls, and up to 50 jobs can be stored into long-term memory. Rotary perforation is optional.
This machine is only available in Oregon, Washington, California, Nevada, Illinois and Missouri residents.
Product Details
- Processes up to a maximum sheet size of 12.95" x 25.5" / 36.8 cm x 64.75 cm (39"/99.1 cm handfed).
- Perform up to 16 creases per sheet!
- Easy to replace front loading interchangeable crease/perf dies.
- Up to 50 jobs can be stored into long-term memory.
- Rotary perforation optional.
Item Specifications
- Electrical: 220-240V 50/60Hz, 20A
- Speed: 4800 sph
- Maximum Stock Size: 12.95" x 25.5"
- Minimum Stock Size: 4.75" x 3.25" (12.06cm x 8.25cm)
- Stock Weight: 26# bond - 16 pt
- Tabletop/Floor: Floor
- Max. # Creasing Positions: 16
- Program memory: 50
- Feeder: Airfeed
- Dies: Interchangeable crease/cross-perf dies available
- Manufacturer's Warranty: 3 Year Mechanical Parts and Electronics
Compare to Similar Graphic Wizard Creasers
Model Name | PT-335 A Plus | PT-335 CKF | PT-335 AKF | PT-331S | PT-335-B | PT-330 Mini |
---|---|---|---|---|---|---|
Model | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Electrical | 220-240V 50/60Hz, 20A | 110-130v, 50/60hZ, 15a | 110-130v, 50/60hZ, 15a | 110-130V, 50/60Hz, 15A | 110-130V, 50/60Hz, 15A | 110-130V, 50/60Hz, 15A |
Speed | 4,800 sheets/set per hour | 7,040 sheets/set per hour (11" x 8.5" half fold) | 6,500 sheets/set per hour (11" x 8.5" half fold) | 2,800 sheets/set per hour | 4,500 sheets/per hour | 1,800 sheets per hour |
Stock Size | Min: 4.75" x 3.25" (12.06cm x 8.25cm), Max: 12.95" x 25.5" | Min: 5.5" wide x 8.5" long(13.97cm x 21.59cm), Max: 13" wide x 26’ long / 35.4" crease only (33.02cm x 66.04m) | Min: 5.5" wide x 6" long (13.97cm x 15.24cm), Max: 13" wide x 35" long (33.02cm x 88.90cm) | Min: 1.97" wide x 3.94" long (5cm x 10.01cm), Max: 13" wide x 25.6" long (33.02cm x 65.02cm) | Min: 4.7" wide x 5.5" long (11.93cm x 13.97cm), Max: 13" wide x 25.5" long(33.02cm x 64.77cm) | Min: 2.5" wide x 4" long (6.35cm x 10.16cm), Max: 13" wide x 25.5" long(33.02cm x 64.77cm) |
Stock Weight | 26# bond - 16 pt | 150-350 gsm | 150-350 gsm | 150-350 gsm | 150-350 gsm | 100-350 gsm |
Tabletop/Floor | Floor | Floor | Floor | Tabletop | Tabletop | Tabletop |
Max. # Creasing Positions | 16 | 32 | 32 | 6 | 32 | 6 |
Program memory | 50 | 64 | 64 | 30 | 30 | 30 |
Feeder | Airfeed | 4" vacuum pile feed | 4" vacuum pile feed | Manual | 4" vacuum pile feed | Manual |
Manufacturer's Warranty | 3 Year Mechanical Parts and Electronics | 3 Year Mechanical Parts and Electronics | 1 Year Mechanical Parts and Electronics | 3 Years Mechanical Parts and Electronics | 1 Year Mechanical Parts and Electronics |
