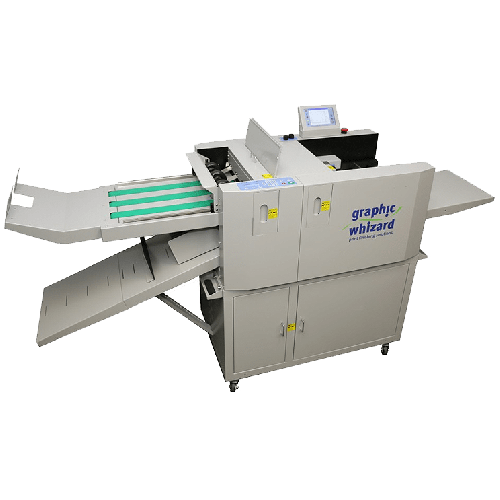

Graphic Whizard PT335-AKF Automatic Creaser and Folder, a high-performance machine designed for precise creasing and folding in print finishing solutions.

Graphic Whizard PT335-AKF Automatic Creaser and Folder

$34,555.00
pay /mo or Net30*
Brand: Graphic Whizard
Item# PT335-AKF
  • Speed: Over 6500 sph* (*8.5"x11", half fold)
  • Setup: Automated touchscreen controls
  • Fold Types: 7 present folds and micro-adjust compensation
  • Feed: 4: deep vacuum pile feeder

ProductDescription

Speed up your short run creasing and folding tasks with Graphic Whizard PT335-AKF Automatic Creaser and Folder. This machine processes up to a maximum sheet size of 13" x 35" at a speed of over 6500 sheets per hour. The The PT335 AKF features an efficient vacuum pile feeder, automated job set up with sheet length measuring, and an easy to replace front loading interchangeable crease/perf dies. This Graphic Whizard PT335-AKF Automatic Creaser and Folder is backed by a 3-year Manufacturer's Warranty on parts/electronics.
This product is only available to customers in Oregon, Washington, Idaho, Utah, California, Nevada, Missouri and Illinois.

Product Details

  • Fold speeds of over 6500 sheets per hour
  • Fold paper from 150 to 350 GSM
  • Crease or Perf up to 35” long sheets into the bypass
  • Self adjusting automated smart delivery
  • Automated job set up with sheet length measuring
  • Interchangeable dies for perforating with partial perf capabilities
  • Interchangeable crease dies to compensate for stock thickness
  • 3 year warranty* (* excludes consumables)

Item Specifications

  • Electrical: 110-130v, 50/60hZ, 15a
  • Speed: 6,500 sheets/set per hour (11" x 8.5" half fold)
  • Maximum Sheet Size: 13" wide x 35" long (33.02cm x 88.90cm)
  • Minimum Sheet Size: 5.5" wide x 6" long (13.97cm x 15.24cm)
  • Stock Weight: 150-350 gsm
  • Tabletop/Floor: Floor
  • Max Number of Creasing Positions: 32
  • Program Memory: 64
  • Feeder: 4” vacuum pile feed

Resources

  1. Graphic Whizard PT335-AKF Automatic Creaser and Folder Spec Sheet Download

Compare to Similar Graphic Wizard Creasers

Model Name PT-335 A Plus PT-335 CKF PT-335 AKF PT-331S PT-335-B PT-330 Mini
Model
Electrical 220-240V 50/60Hz, 20A 110-130v, 50/60hZ, 15a 110-130v, 50/60hZ, 15a 110-130V, 50/60Hz, 15A 110-130V, 50/60Hz, 15A 110-130V, 50/60Hz, 15A
Speed 4,800 sheets/set per hour 7,040 sheets/set per hour (11" x 8.5" half fold) 6,500 sheets/set per hour (11" x 8.5" half fold) 2,800 sheets/set per hour 4,500 sheets/per hour 1,800 sheets per hour
Stock Size Min: 4.75" x 3.25" (12.06cm x 8.25cm), Max: 12.95" x 25.5" Min: 5.5" wide x 8.5" long(13.97cm x 21.59cm), Max: 13" wide x 26’ long / 35.4" crease only (33.02cm x 66.04m) Min: 5.5" wide x 6" long (13.97cm x 15.24cm), Max: 13" wide x 35" long (33.02cm x 88.90cm) Min: 1.97" wide x 3.94" long (5cm x 10.01cm), Max: 13" wide x 25.6" long (33.02cm x 65.02cm) Min: 4.7" wide x 5.5" long (11.93cm x 13.97cm), Max: 13" wide x 25.5" long(33.02cm x 64.77cm) Min: 2.5" wide x 4" long (6.35cm x 10.16cm), Max: 13" wide x 25.5" long(33.02cm x 64.77cm)
Stock Weight 26# bond - 16 pt 150-350 gsm 150-350 gsm 150-350 gsm 150-350 gsm 100-350 gsm
Tabletop/Floor Floor Floor Floor Tabletop Tabletop Tabletop
Max. # Creasing Positions 16 32 32 6 32 6
Program memory 50 64 64 30 30 30
Feeder Airfeed 4" vacuum pile feed 4" vacuum pile feed Manual 4" vacuum pile feed Manual
Manufacturer's Warranty 3 Year Mechanical Parts and Electronics 3 Year Mechanical Parts and Electronics 1 Year Mechanical Parts and Electronics 3 Years Mechanical Parts and Electronics 1 Year Mechanical Parts and Electronics
