Graphic Whizard PT335-B Multi Automatic Creaser

Skip to the beginning of the images gallery

SWIPE FOR MORE IMAGES

Product Name	Item Number	Price
Graphic Whizard Rotary Score Assembly for PT 335 B Automatic Creaser	05GW335B0005	$305.00
Graphic Whizard Rotary Kiss Cut Assembly for PT 335 B Automatic Creaser	05GW335B0006	$350.00
Graphic Whizard Rotary Slitter Assembly for PT 335 B Automatic Creaser	05GW335B0007	$350.00
Graphic Whizard Cross Perf Die Set for PT 335 B Automatic Creaser	05GW335B0009	$963.90
Graphic Whizard Rotary Perf Assembly 12 TPI for PT 335 B Automatic Creaser	05GW335B0010	$270.00
Graphic Whizard Rotary Perf Blade 12 TPI for PT 335 B Automatic Creaser	05GW335B0010A	$180.00
Graphic Whizard Rotary Perf Assembly 24TPI for PT 335 B Automatic Creaser	05GW335B0011	$270.00
Graphic Whizard Rotary Perf Blade 24 TPI for PT 335 B Automatic Creaser	05GW335B0011A	$180.00
Graphic Whizard Additional Cross perf Crash Pad Holder for PT 335 B Automatic Creaser	05GW335B0016	$40.00
Graphic Whizard Crease Bar Set (.6/1.0/1.2/1.4mm) for PT 335 B Automatic Creaser	05GW335B0018	$1,230.00
Graphic Whizard Rotary Perf Assembly 48 TPI for PT 335 B Automatic Creaser	05GW335B0048	$405.00
Graphic Whizard Rotary Perf Blade 48 TPI for PT 335 B Automatic Creaser	05GW335B0048A	$315.00

Product Description

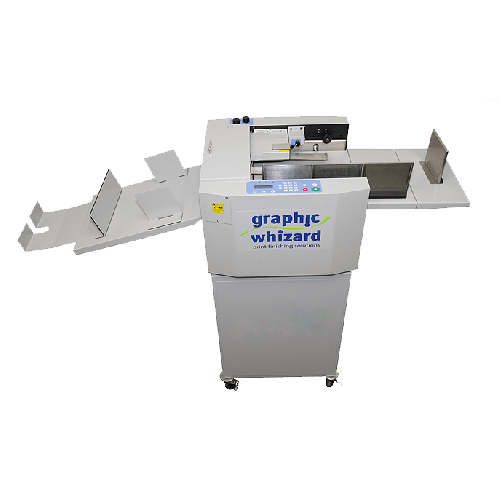

This Graphic Whizard PT335-B Multi Automatic Creaser is a versatile automatic creaser with multiple finishing options such as cross perforating (with the capability to do partial perfs), choice of three creasing widths, and an array of rotary tools( perforating, scoring, slitting, and kiss-cutting). Also, the PT335-B Multi Creaser is equipped with a 4" vacuum pile feeder, an easy to use LCD screen and keyboard, skew compensation. This Graphic Whizard PT335-B Multi Automatic Creaser can accommodate up to 13" x 25.5" sheet size, has a maximum of 32 crease/perf positions per sheet, 30 job memory, and has a speed of up to 4,500 sheets per hour.

This Creaser is only available to Washington, and Oregon residents.

Product Details

4" vacuum pile feeder.
Easy to use LCD screen and keyboard.
Speeds up to 4500 sheets per hour.
Ability to perforate in both directions in one pass.
Quick and easy job changeover.
Skew compensation.
Extendable feeder and exit trays for large stock.

Item Specifications

Electrical: 110-130V, 50/60Hz, 15A
Speed: 4500 SPH (Based on 8.5" x 11"run landscape, 1 crease)
Maximum stock size: 13" x 25.5"
Minimum stock size: 4.7" x 5.5"
SHIPPING DIMENSIONS (L X W X H): 51" X 35" 55"
SHIPPING WEIGHT: 270 LBS.
Stock weight: 26# bond - 16 pt
Tabletop/Floor: Tabletop Optional stand available
Max # Crease Positions: 32
Program Memory: 30
Feeder: 4" Airfed vacuum pile feeder
Manufacturer's Warranty: 3 Years Manufacturer Mechanical Parts and Electronics
