Maximum Sheet Size: 13" wide x 26’ long / 35.4" crease only (33.02cm x 66.04m)
Max Number of Creasing Positions: 32
Program Memory: 64
ProductDescription

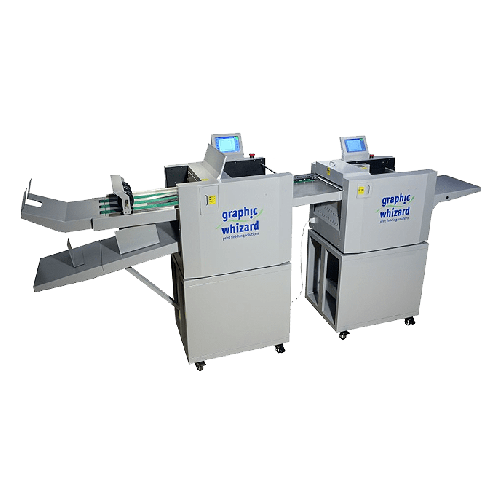

The PT 335CKF is a complete crease/perf/fold finishing equipment that is designed to provide users professional quality finished pieces while eliminating inefficient set-up time. The PT 335CKF feeds up to a maximum sheet size of 13" x 35.4" with an effective 4" pile feeder and can run up to 32 creases or perforations per sheet. It has s strike perf capabilities that can "T" perf or box "perf", and then either fold or output onto the bypass tray. The PT 335CKF has an automated set-up through touchscreen control, and has a quick job changeover when using the 64 job memory, even for one time jobs. The PT 335CKF eliminates cracking, offer more versatility, reduce set up times, and deliver high quality results all with less operator intervention. With fold speed at over 7,000 sheets per hour, the PT 335CKF is the ideal solution to all the production level creasing/perfing/folding demands in the digital market today.
This product is only available to customers in Oregon, Washington, Idaho, Utah, California, Nevada, Missouri and Illinois.
Product Details
Fold speeds of over 7,000 sheets per hour
Fold paper from 150 to 350 GSM
No limitations between creases/perfs
Partial perforation in Both directions
Self adjusting automated smart delivery
Three years parts electronics warranty
Automated, or manual set up for custom jobs
Fold bypass tray for creasing/perfing without folding
Item Specifications
Electrical: 110-130v, 50/60hZ, 15a
Speed: 7,040 sheets/set per hour (11" x 8.5" half fold)
Maximum Sheet Size: 13" wide x 26’ long / 35.4" crease only (33.02cm x 66.04m)
Minimum Sheet Size: 5.5" wide x 8.5" long(13.97cm x 21.59cm)
