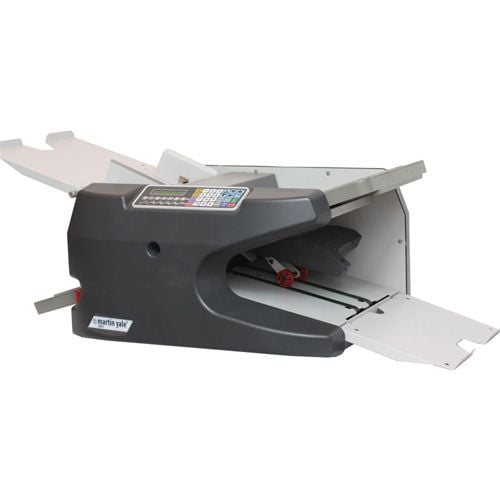

Martin Yale 2051 Smartfold Electronic Paper Folding Machine
- 0
- 1
- 2
- 3
- 4
- 5
- 6
Product Description
Product Details
- Handles paper weight from 18lb. to 90 lb. index, 68GSM to 166GSM.
- Variable speed ranges from 3,000 to 15,000 sheets per hour.
- Folds sheet sizes from 2.5" x 5.2" to 12" x 18".
- Feed table capacity can hold up to 500 sheets of 8.5" x 11", 20 lb. bond.
- High memory capacity with 7 preset folds and 10 custom folds.
- Capable of feeding a wide range of paper weights without having to adjust the feed system, saving time between fold jobs.
- Diagnostics mode for quick and easy trouble shooting and setup with 7 sensors.
- Fully enclosed fold tables for quieter operation and improved operator safety.
- 2-line x 20 character LCD display provides operator with visual feedback prompt.
- 5 pre-programmed paper sizes: 8.5" x 11", 8.5" x 14", 11" x 17".
- Automatic shut-off.
- Seven pre-programmed fold types: Letter, Z-fold, Half, Double-Parallel, Gate, Engineering and Church.
- Made in U.S.A.
Item Specifications
- Manual Paper Feed: No
- Feed Tray Capacity: up to 500 sheets
- Electrical: 115v/230
- Dimensions: 43.2" W x 22.2" D x 18" H
- Weight: 102 lbs.
- Paper Weight: 18lb. bond to 90lb. Index, 68gsm to 166gsm
- Manufacturer's Warranty: 180 Day Manufacturer's Warranty (Extended Warranties Available)
Demonstration Video
The Martin Yale 2051 is great for use in quick print shops, marketing departments, copy centers, large mailrooms, offices, businesses, schools, churches and anywhere high volume and ease-of-use are important.
Feed tray holds up to 500 sheets of paper with no paper fanning required. Two line by 20-character LCD display provides visual feedback. Microhoning for precise folds and production quality work. Automatically feeds, folds and collects. High memory capacity with seven different pre-set fold types: letter, half, Z-fold, double parallel, gate, church fold and engineering. Memory for 10 custom folds. Best value folder for quick print market.
Best features and price. Capable of feeding a wide range of paper weights without having to adjust feed system.
Can select output in batches and display shows count, Handles 16- to 120-pound index. Handles sheet sizes 2.2" x 5.2" to 12" x 18". Variable speed ranges from 3,000 to 15,000 sheets per hour . Stapled or unstapled set of up to four sheets can be folded through the bypass tray.Diagnostics mode for quick and easy troubleshooting and setup with seven sensors. Fully enclosed fold tables for quiet operation and improved safety. The Martin Yale 2051 is great for use anywhere high volume and ease-of-use are important.
Resources
Staff Review
Martin Yale Intimus 2051 Electronic Paper Folding Machine Review
The Martin Yale Intimus 2051 Electronic Paper Folder is one device to take note of among many folders. Built to withstand high volume folding while providing simple operation, this machine is ideal for churches, offices, marketing departments, and copy shops. It requires no setup and handles a wide range of paper weights, sizes, and folds with ease. Here's a more in-depth look.
Strengths:
-
Extra large feed rollers slide single sheets into the plates. A fine tuning mechanism ensures precise folds. Heavy duty construction allows the folding of heavier duty stocks, including some semi-glossy papers at slower speeds. The wide paper weight range, 16lb bond to 110lb index, is automatically compensated for and doesn't require feed system adjustment, saving you time between jobs.
-
If a misfeed or other error occurs, a diagnostic mode is designed to give quick and easy trouble shooting and setup instructions. Seven sensors aid in the problem solving.
-
An LCD display allows guided selection of paper sizes and folds while giving visual feedback. A counter tallies the total number of folded items as well as offering batch folding. Batch folding eliminates the need to count out how many sheets you need folded and allows you to simply load a stack of paper, insert the number, and let the machine count for you.
-
Seven preset folds are shown on the LCD panel, including "C", "Z", half, double parallel, gate, engineering, and church folds. You can also create and store up to ten custom folds in memory for quick retrieval when needed. The fold trays are completely enclosed to provide quieter and safer operation.
-
Five pre-programmed paper sizes make selection easy. They include letter, legal, 11" x 17", A3, and A4 sizes. The machine can be set to fold as small as 2.5" x 5.2" and as large as 12" x 18".
-
The hopper can hold up to 500 sheets of letter size 20lb bond paper. An additional manual feed allows the combined folding of up to four pages, loose or stapled. Variable speed folds from 3000 to 15,000 sheets per hour, depending on paper size and weight.
-
Martin Yale provides a one year limited warranty on this product.
Weaknesses:
-
As you can probably imagine, a machine with this much capacity is very large, weighing 102 pounds. Since it is designed to sit on a flat surface, there aren't casters on the bottom to move it around. If you will need to frequently relocate your folder, we recommend storing it on a cart.
-
One feature seen on comparable machines but not this one is the ability to score, slit, and perforate documents for a truly multi-tasking device. Many offices might not use this feature and wouldn't miss it on this machine. But if that is something you're looking for, we suggest you check out the MBM 352F which comes with that equipment.
Even with a few minor downsides, the Martin Yale 2051 is a great paper folder. Electronic features offer simple, uncomplicated use. High speeds provide efficiency and heightened productivity, saving you both time and money. With such a wide range of materials accepted, this device combines convenience with functionality. We think most offices would benefit from the 2051 as their next folder.
Compare to Similar Paper Folding Machines
Model | 2051 SmartFold Automatic Paper Folder | 1812 Variable Speed AutoFolder | 1811 AutoFolder | 1711 Electronic Ease-of-Use AutoFolder | 1611 Ease-of-Use AutoFolder |
Setup Type | Fully Automatic Setup | Manual Setup | Manual Setup | Semi Automatic Setup | Manual Setup |
Speed (Shts/Hr) | 3,000 to 15,000 | 5,000 to 12,000 | 5,000 to 12,000 | 9,000 | 9,000 |
Fold Types | Ltr, Half, Z, Double, Gate,Engineering, Church | Ltr, Half, Z, Double, Gate,Engineering, Church | Ltr, Half, Z, Double, Gate,Engineering, Church | Ltr, Half, Z, Double, Gate | Ltr, Half, Z, Double, Church |
Sheet Size Range | Min: 2 1/2" x 5 1/8" Max: 12" x 18" | Min: 2 1/2" x 5 1/8" Max: 12" x 18" | Min: 4" x 4" Max: 11.75" x 18" | Min: 4 3/4" x 5" Max: 8 1/2" x 14" | Min: 4 3/4" x 5" Max: 8 1/2" x 14" |
Feed Table Capacity | 500 Sheets of 20# Paper | 500 Sheets of 20# Paper | 300 Sheets of 20# Paper | 150 Sheets of 20# Paper | 150 Sheets of 20# Paper |
Exit Conveyor | Yes | Yes | Yes | Yes | Yes |
Skew Controls | Yes | Yes | Yes | Yes | Yes |
Automatic Off | Yes | Yes | Yes | Yes | Yes |
Variable Speed | Yes | Yes | No | No | No |
Auto-Jam Detect | Yes | Yes | Yes | Yes | Yes |
Size (W x D x H) | 43 1/5" x 22 1/5" x 17 4/5" | 43 1/5" x 22 1/5" x 17 4/5" | 41" x 19 1/2" x 14" | 32 1/2" x 15 1/2" x 13 1/5" | 32 1/2" x 15 1/2" x 13 1/5" |
Shpg. Wt | 105 lbs. | 105 lbs | 81 lbs. | 45lbs. | 42 lbs. |
Mfr. Warranty | Manufacturer's one-year limited warranty | Manufacturer's one-year limited warranty | Manufacturer's one-year limited warranty | Manufacturer's one-year limited warranty | Manufacturer's one-year limited warranty |
Paper Weight Range | Min: 18# bond Max: 90# index | Min: 18# bond Max: 90# index | Min: 16# bond Max: 135# Index | Min: 18# bond Max: 28# bond | Min: 18# bond Max: 28# bond |
Maintenance Kit Number | WRA2051SP | WRA2051SP | WRA1811SP | WRA1711SP | WRA1711SP |
Maintenance Kit Contents | Feed Wheel, Retarder, Cleaning Pad, Roller Cleaner | Feed Wheel, Retarder, Cleaning Pad, Roller Cleaner | Feed Wheel, Retarder, Cleaning Pad, Roller Cleaner | Feed Tire, Retarder Assembly, Cleaning Pad, Roller Cleaner | Feed Tire, Retarder Assembly, Cleaning Pad, Roller Cleaner |
