Martin Yale 1812 AutoFolder Variable Speed Paper Folding Machine

Name: Martin Yale 1812 AutoFolder Variable Speed Paper Folding Machine
Brand: Martin Yale
SKU: 1812

Product Description

The Martin Yale 1812 AutoFolder paper folding machine speeds up productivity for your business, church, school, or even home use with a variety of features. The 1812 is capable of folding any sheet from 2.5" x 5.2" to 12" x 18" at an adjustable speed range from 5,000 to 12,000 sheets per hour. The 1812 can fold a wide range of paper weights, from 18-lb. bond to 90-lb index without even having to adjust the feed system! This machine will also perform seven different types of folds; letter, z-fold, half, double-parallel, gate, engineering, and church fold. Just simply load your stack of sheets, up to 500 sheets of 8.5" x 11" 20-lb, and let the Martin Yale 1812 do the work while you enjoy the silence of this remarkable machine. Check out the new Martin Yale 1812 AutoFolder and enjoy the pleasures of heightened productivity today.

Product Details

Handles paper weight from 18lb. bond to 90lb. index, 68gsmto 166gsm.
Variable speed ranges from 5,000 to 12,000 sheets per hour.
Folds sheet sizes from 2.5" x 5.2" to 12" x 18".
Feed table capacity can hold up to 500 sheets of 8 1/2" x 11", 20 lb. bond.
Capable of feeding a wide range of paper weights without having to adjust the feed system - saving time between fold jobs.
Fully enclosed manually adjusted fold tables for quieter operation and improved operator safety.
Manual set up for fold tables.
Creates seven different fold types: Letter, Z-fold, Half, Double-Parallel, Gate, Engineering and Church fold.
Made in U.S.A.

Specifications

Electrical: 115v/230/60 Hz
Manual Paper Feed: No
Feed Tray Capacity: up to 500 sheets
Dimensions: 43.2" x 22.2" x 17.8"
Weight: 102 lbs.
Manufacturer's Warranty: 180 Day Manufacturer's Warranty (Extended Warranties Available)
Spiral / Binding101 Part Number: 04MY1812VS

Compare to Similar Paper Folding Machines


Model	2051 SmartFold Automatic Paper Folder	1812 Variable Speed AutoFolder	1811 AutoFolder	1711 Electronic Ease-of-Use AutoFolder	1611 Ease-of-Use AutoFolder
Setup Type	Fully Automatic Setup	Manual Setup	Manual Setup	Semi Automatic Setup	Manual Setup
Speed (Shts/Hr)	3,000 to 15,000	5,000 to 12,000	5,000 to 12,000	9,000	9,000
Fold Types	Ltr, Half, Z, Double, Gate,Engineering, Church	Ltr, Half, Z, Double, Gate,Engineering, Church	Ltr, Half, Z, Double, Gate,Engineering, Church	Ltr, Half, Z, Double, Gate	Ltr, Half, Z, Double, Church
Sheet Size Range	Min: 2 1/2" x 5 1/8" Max: 12" x 18"	Min: 2 1/2" x 5 1/8" Max: 12" x 18"	Min: 4" x 4" Max: 11.75" x 18"	Min: 4 3/4" x 5" Max: 8 1/2" x 14"	Min: 4 3/4" x 5" Max: 8 1/2" x 14"
Feed Table Capacity	500 Sheets of 20# Paper	500 Sheets of 20# Paper	300 Sheets of 20# Paper	150 Sheets of 20# Paper	150 Sheets of 20# Paper
Exit Conveyor	Yes	Yes	Yes	Yes	Yes
Skew Controls	Yes	Yes	Yes	Yes	Yes
Automatic Off	Yes	Yes	Yes	Yes	Yes
Variable Speed	Yes	Yes	No	No	No
Auto-Jam Detect	Yes	Yes	Yes	Yes	Yes
Size (W x D x H)	43 1/5" x 22 1/5" x 17 4/5"	43 1/5" x 22 1/5" x 17 4/5"	41" x 19 1/2" x 14"	32 1/2" x 15 1/2" x 13 1/5"	32 1/2" x 15 1/2" x 13 1/5"
Shpg. Wt	105 lbs.	105 lbs	81 lbs.	45lbs.	42 lbs.
Mfr. Warranty	Manufacturer's one-year limited warranty	Manufacturer's one-year limited warranty	Manufacturer's one-year limited warranty	Manufacturer's one-year limited warranty	Manufacturer's one-year limited warranty
Paper Weight Range	Min: 18# bond Max: 90# index	Min: 18# bond Max: 90# index	Min: 16# bond Max: 135# Index	Min: 18# bond Max: 28# bond	Min: 18# bond Max: 28# bond
Maintenance Kit Number	WRA2051SP	WRA2051SP	WRA1811SP	WRA1711SP	WRA1711SP
Maintenance Kit Contents	Feed Wheel, Retarder, Cleaning Pad, Roller Cleaner	Feed Wheel, Retarder, Cleaning Pad, Roller Cleaner	Feed Wheel, Retarder, Cleaning Pad, Roller Cleaner	Feed Tire, Retarder Assembly, Cleaning Pad, Roller Cleaner	Feed Tire, Retarder Assembly, Cleaning Pad, Roller Cleaner

Video

Martin Yale 1812 AutoFolder Variable Speed Paper Folding Machine Demo Video

Transcript :

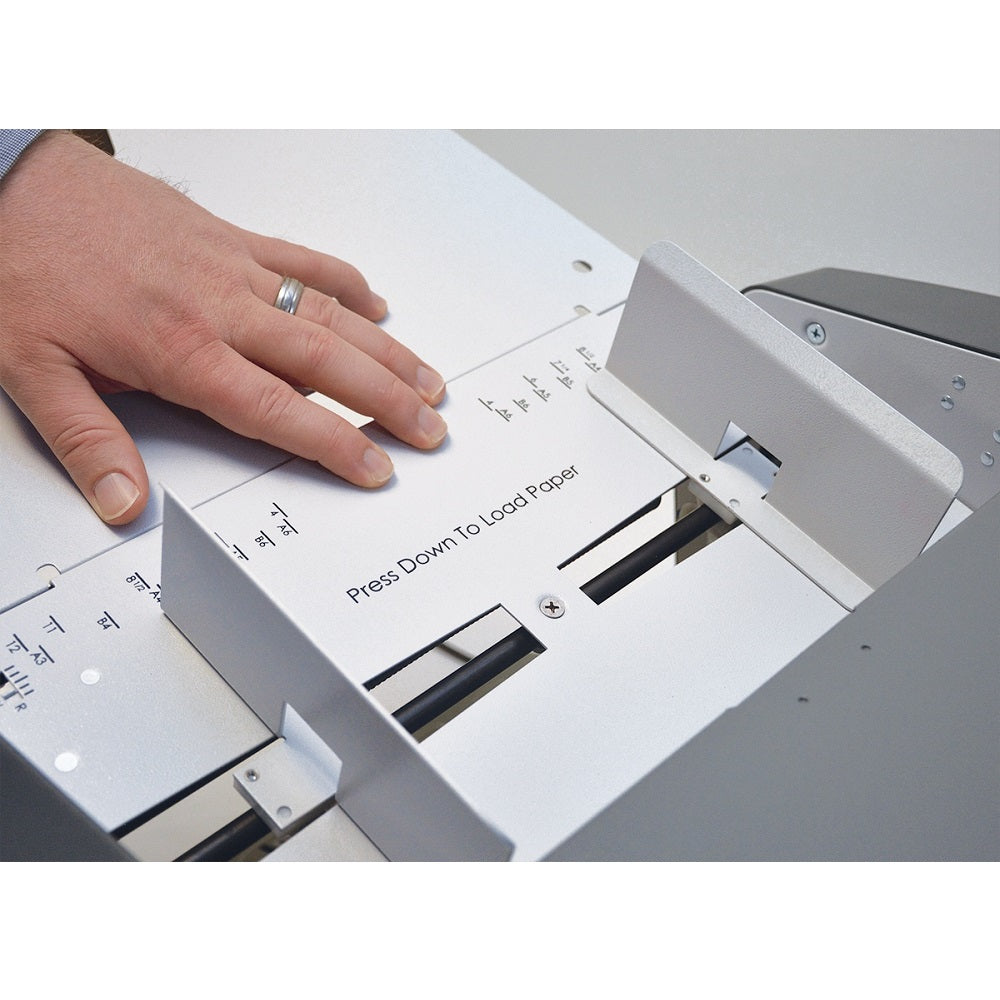

Welcome to MyBinding video. This is the Martin Yale 1812 AutoFolder Variable Speed Paper Folding Machine. Hereš™s a start to finish on how to use this machine. Lining up with the back post, insert one of the folding tables to the bottom. It doesnš™t matter which table as theyš™re exactly the same. Then insert the top table and add your paper catcher. Next, adjust your page guides to the correct sized paper that youš™re using. Unscrew them slightly from the bottom and adjust from the top. Line up the back with the printed guide. Do this for the other guide. Next, press down on the loading tray until it snaps into its loading position. Itš™s best to push on the text. Insert your pages. This is slightly more than 500 sheets. Push the red button at the bottom to release the load tray so your pages can be inserted into the machine. Next, adjust the guide wheels to the correct position depending on your paper size and type of fold you are making. Adjust the speed properly. Using the dial on the front, find the letter you need for your type of fold. Here for our first fold, we need it set to M. Using the side with the 1, set the top table to the correct letter. Do not line it up with the knob but with the tabs inside the table. Find your second adjustment and properly set the bottom table. For the bottom weš™re using 2 and for this example weš™re going to use E. Twist the knob loose and make your adjustment. Now, push test to see if your fold is what you wanted. If your pages are not perfectly straight, try adjusting the skew and running another test until itš™s correct. When youš™re ready, push run and the machine will fold your pages very quickly until you stop it. The type of folds include the letter fold, Z fold, the half fold, double parallel, the gate fold, engineering and the church fold. But since you can set the fold tables yourself, you can create any custom single or double fold that you want. If you get a paper jam, remove the tool from the back side and twist the bolt in the side hole until your pages come out. And thatš™s pretty much everything about the Martin Yale 1812 paper folding machine. For more demos, reviews and how-toš™s, go to MyBinding.com.

Resources

Staff Review

Martin Yale 1812 AutoFolder Variable Speed Paper Folding Machine Review

If you're looking to speed up productivity with a paper folding machine, look no further. The Martin Yale 1812 AutoFolder offers a variety of features and silent operation perfect for the needs of schools, churches, and other businesses. Quick speeds and a wide range of options make this machine ultra efficient. Here is a closer look at the strengths and weaknesses of the 1812.

Strengths:

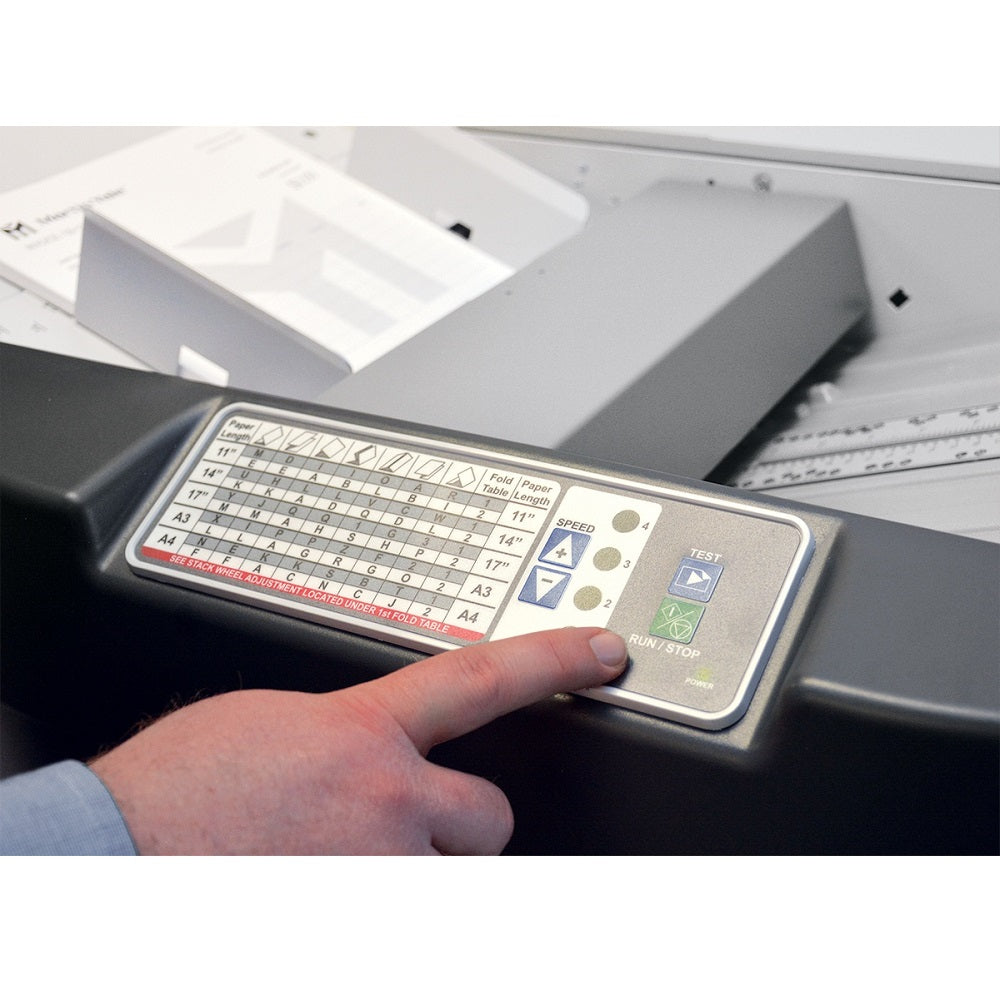

This device is very easy to use. The automatic friction feed system slides individual sheets into the plates for folding. The fold tables are fully enclosed, providing quieter and safer operation. A reverse switch allows any potential jams to be quickly unclogged. Use is controlled by a smart fold panel. The lit display offers soft touch control with options for various paper sizes and folds, all with the simple push of a button.
A wide range of paper weights are accepted by this device without having to adjust the feed system. This will save you time between fold jobs; simply load the tray and go.
The feed table can hold up to 500 sheets of 20lb bond paper in letter size. Speed variation offers fold rates that range from 5000 sheets per hour up to 12,000 sheets per hour, depending on paper weight and size. Size of paper accepted runs from 2.5" x 5.2" up to 12" x 18", easily accommodating A4, A5, letter, and legal size documents as well as others.
A wide span of paper weights are accepted by this machine, ranging from 18lb bond to 90lb index. This includes the folding of some heavier cardstocks.
Seven different standard folds are pre-programmed into this device. They include a "C" or letter fold, "Z" fold, half fold, double parallel, gate fold, engineering or short "Z" fold, and church fold. Within this variety of styles, you can create endless amounts of material, such as flyers, bulletins, newsletters, programs, invoices, correspondence, and menus.
Martin Yale provides a one year limited warranty on this product.

Weaknesses:

Although a wide range of paper weights are accepted by this machine, coated and glossy paper are not. Many offices don't use these mediums and won't notice the difference. But businesses that frequently require the use of specialty materials should invest in a machine that can accommodate them, such as the 959AF.
This device weighs 102 pounds and will be bulky and awkward to move. If you will need to relocate it often, we suggest storing it on a cart for added mobility and shared use.
One thing that would be nice to see is a larger feed tray capacity. Even so, 500 sheets is a generous and normal amount. If you have thousands of papers to fold, be ready to refill the tray every few seconds until your job is done.

As you can see from the many strengths, the 1812 is well-suited to accommodate the many folding needs of any office. Simple operation combined with rapid folding provides a convenient way to quickly ready mass mailings or other high quantity send-outs. We think the Martin Yale 1812 is an excellent choice for your next office paper folder.
