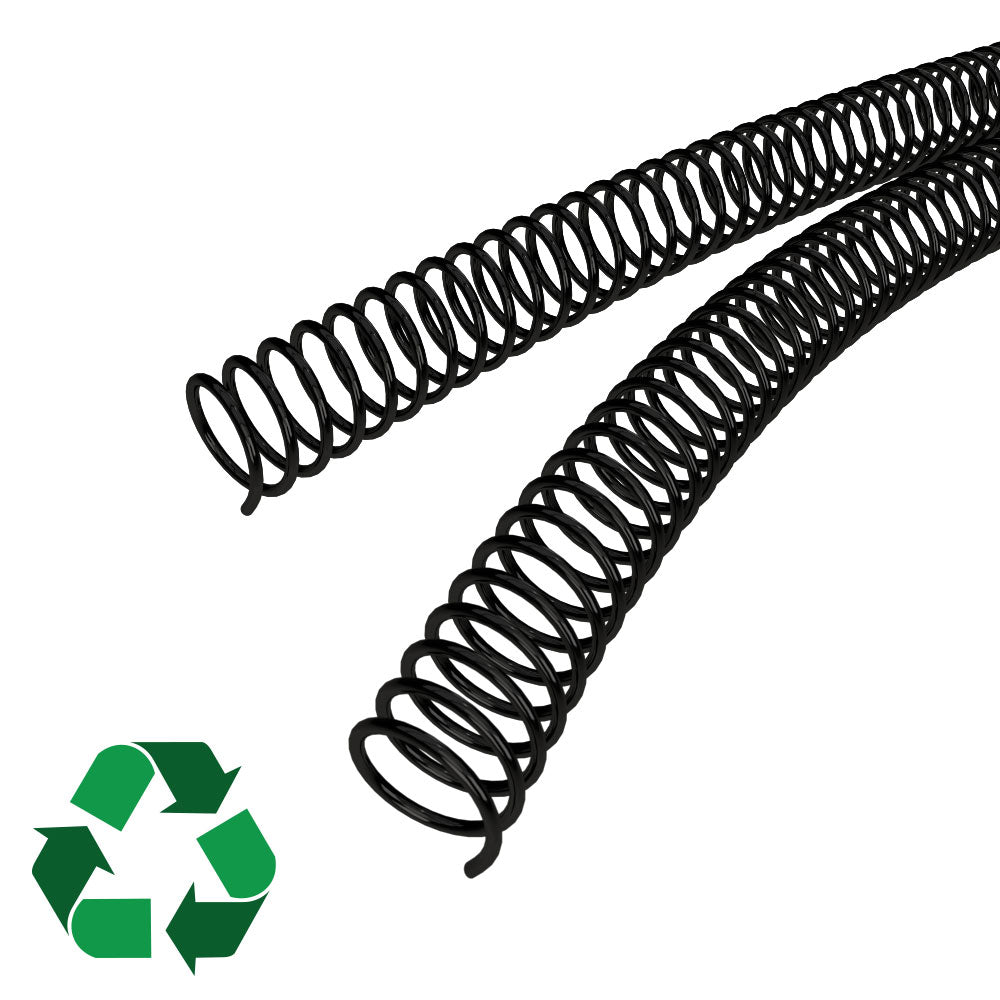

20mm Black Eco-Coil Binding Coils - 100 Pack, Eco-Friendly Choice

Name: 20mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk
Brand: MyBinding
SKU: P203EC-20-12

$74.19

Price Match Guarantee*

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# P203EC-20-12

Eco-Conscious Choice: Made from 100% recycled materials, promoting sustainability in your binding projects.
Professional Finish: Classic #103 Black color ensures a sleek and polished look for all your documents.
Versatile Capacity: Accommodates up to 172 sheets of 20# bond paper, perfect for both personal and professional use.
Easy Compatibility: Designed for seamless use with standard 4:1 pitch spiral binding machines, simplifying your binding process.

SKU

PRODUCT NAME

PRICE

QUANTITY

P203EC-06-12

6mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$25.79

P203EC-07-12

7mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$29.69

P203EC-08-12

8mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$31.39

P203EC-09-12

9mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$33.99

P203EC-10-12

10mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$37.99

P203EC-11-12

11mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$44.19

P203EC-12-12

12mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$45.29

P203EC-13-12

13mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$46.29

P203EC-14-12

14mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$48.49

P203EC-15-12

15mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$48.39

P203EC-16-12

16mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$57.99

P203EC-17-12

17mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$64.49

P203EC-18-12

18mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$67.19

P203EC-19-12

19mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$70.19

P203EC-22-12

22mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$87.39

P203EC-23-12

23mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$94.19

P203EC-25-12

25mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$97.99

P203EC-28-12

28mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$106.89

P203EC-30-12

30mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$109.89

P203EC-32-12

32mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$116.79

P203EC-35-12

35mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$142.19

P203EC-38-12

38mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$152.19

P203EC-42-12

42mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$266.49

P203EC-45-12

45mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$330.79

P203EC-50-12

50mm Black Eco-Coil 4:1 Recycled Spiral Binding Coils - 100pk

$356.59

Product Description

These premium quality black 20mm spiral binding coils are part of our unique Eco-Coil line of recycled spiral binding supplies. Eco-Coil spiral binding supplies are made from more than 96% post-consumer waste, manufactured right here in the USA (not China!), and guaranteed to be lead and phthalate free as well as CPSIA and ROHS compliant. In fact, our Eco-Coil spines are not only made from recycled material, but they are also fully recyclable, making them an ideal choice for organizations that want to do their part to reduce waste and help the environment. Additionally, these 20mm black coils can be used with virtually any standard 4:1 pitch Spiral Coil Binding Machine and are available in almost any length you might need. The product number for this particular 20mm length is P203EC-20-12.

Product Details

Product Type: Recycled Binding Coil

Color: #103 Black

Diameter: 20mm

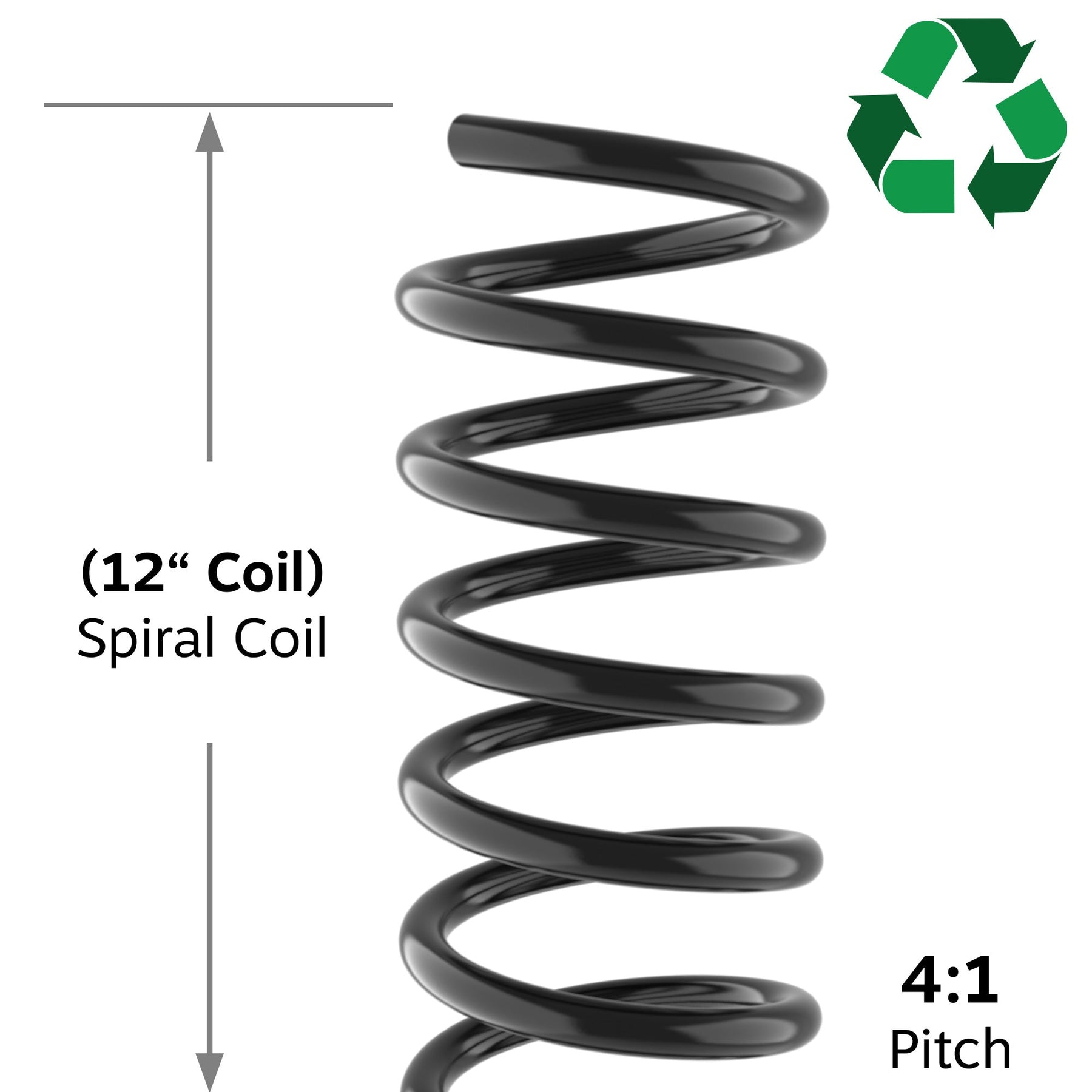

Pitch: 4:1 (4 Holes Per Inch)

Approximate Capacity: 172 Sheets (20# Bond)

Length: 12" Letter

Quantity: 100 Per Box

Part Number: P203EC-20-12

Eco-Coil F.A.Q.

Eco-Coil Recycled Binding Coil FAQ

1. What are Eco-Coil spines made out of? How are they made?

MyBinding Eco-Coil spines are made from more than 96% post-consumer waste. The plastic used to form the coils was once consumer packaging such as the clear plastic packaging used in store display shelves. The plastic is gathered from a recycler and is washed and ground down into small particles. Those particles are then extruded into small consistent sized pellets. Finally, the pellets are melted down, colored, and extruded into filament. The final step is to use a coil forming machine to shape the filament into the correct diameter of spiral. The forming machine cuts the ends of the coil at an angle to make it easier for you to insert the coils onto your book. All of this is done right here in the United States by American workers.

2. You say the coils are not only recycled but also recyclable. How do you recycle them?

The plastic used in these Eco-Coil spines can easily be recycled as part of your company's recycling program. Depending on the recycling program that your company uses, you may or may not have to remove the coil from the edge of your book for recycling purposes. If you do need to remove the coil, the easiest way is to simply cut one of the crimped ends of the spiral and use your coil inserter to quickly spin the coil off the book. The coil can be recycled with other plastic products such as milk jugs, plastic water bottles, and clear packaging.

3. Are Eco-Coil's more expensive than standard coils?

You might think that recycling would actually reduce the cost of producing binding coil. However, the labor involved in gathering and reprocessing the once used plastic actually makes these coils approximately 15% more expensive to produce than coils used with non-recycled materials. The price difference is less than a dollar per box on the smaller sizes of coil and just a few dollars on larger sizes. Although nobody likes to pay more, the price difference is small and the environmental impact can be huge.

4. Can you tell the difference between Eco-Coil and the standard binding coils that MyBinding carries?

If you were to place a standard coil next to an Eco-Coil, in most cases you wouldn't be able to tell the difference. The diameter and quality of the plastic is exactly the same. These coils are extruded and formed on the same equipment as our standard coils. However, there are sometimes slight differences in the coloration of Eco-Coil. The recycled materials that are used are sometimes not as clear as virgin PVC. This can make the clear coil not quite as clear and the white coil not quite as bright. For darker colors, there is not a noticeable color shift. In order to minimize color shift, we use the best quality and clearest recycled materials for that filament. Still, there is a small possibility of variation in tint between different batches of Eco-Coil.

5. Can you tell the difference in the quality of this coil vs. other non US made brands?

In order to cut costs several major coil suppliers have resorted to importing coil from China. Although this coil costs less to produce, the difference in quality is notable. Most imported Chinese spiral binding coils are made with thinner filament in order to save money. This makes their coil less rigid and more difficult to insert. Coil that is made in China is often not cut with the correct angle at each end. Again, this makes inserting the spirals on the edge of your book far more difficult. Imported coil is also not always true to color--black can often look dark gray, and white can look like light gray. Plus, most imported coil is not CPSIA and ROHS certified (see below for more information on this).

6. What does CPSIA stand for? How about ROHS? Why does it matter?

CPSIA stands for the Consumer Product Safety Improvement Act and is a US law. RoHS stands for Restriction of Hazardous Substances and is an EU law. Both of these laws restrict the amount of lead and other harmful elements in the production of consumer goods. In order to ensure that our coils are compliant to these standards each truck load of recycled plastic that we buy is tested at an independent lab for the presence of both phthalates and lead. This means that each of our batches of Eco-Coil is certified to be both CPSIA and RoHS compliant and is both lead and Phthalate free. Copies of the certification and testing are available upon request. However, it is important to note that these products are not intended for use as a "children's toy" or "child care article" (CPSIA section 108) and are thus are not subject to the most stringent rules on the presence of phthalates. As with all recycled materials, it is possible that small traces of elements may slip through testing procedures. If you intend to use Eco-Coil in the production of children's toys or child care articles (items that will be chewed on or sucked upon by a child under the age of 3) further testing may be required to ensure full compliance.

7. How many colors and sizes are available in Eco-Coil?

Our Eco-Coil is currently only offered in black. And while we carry standard 4:1 pitch in more than 25 different diameters, our Eco-Coil can be made in virtually any length or pitch that you require. Common lengths include 9" for half size books, 12" for letter size books, 15" for legal sized documents, 18" for seventeen inch binding and 36" for custom cutting and for use with certain high volume coil inserters. Eco-Coil is also available in a number of different pitches including 4:1 (or 6mm), 5:1 (or 5mm), 3.12:1, 2.5:1 and 3:1 pitch. We don't have all of these pitches listed on our site, but if you give us a call, one of our customer service representatives would be glad to take your order.

Coil Sizing Guide

Coil Diameter	Fractional Equivalent (approx.)	Maximum Thickness of Document including Covers	Sheet Capacity (20# Bond)
6mm	1/4"	4mm - 5/32"	30
7mm	9/32"	5mm - 3/16"	42
8mm	5/16"	6mm - 7/32"	54
9mm	11/32"	7mm - 1/4"	65
10mm	3/8"	8mm - 5/16"	75
11mm	7/16"	9mm - 11/32"	85
12mm	15/32"	10mm - 3/8"	92
13mm	1/2"	11mm - 13/32"	105
14mm	9/16"	12mm - 7/16"	115
15mm	19/32"	13mm - 1/2"	125
16mm	5/8"	14mm - 17/32"	135
17mm	21/32"	15mm - 9/16"	142
18mm	11/16"	16mm - 5/8"	155
19mm	23/32"	17mm - 11/16"	160
20mm	3/4"	18mm - 23/32"	172
22mm	7/8"	20mm - 3/4"	190
23mm	15/16"	21mm - 27/32"	200
25mm	1"	22mm - 7/8"	220
28mm	1-1/8"	25mm - 1"	250
30mm	1-3/16"	27mm - 1 1/16"	270
32mm	1-1/4"	29mm - 1 1/8"	280
35mm	1-3/8"	32mm - 1 1/4"	310
38mm	1-1/2"	34mm - 1 5/16"	330
42mm	1-11/16"	38mm - 1 1/2"	350
45mm	1-3/4"	41mm - 1 5/8"	390
50mm	2"	46mm - 1 13/16"	440

Video

Everything There Is To Know About Spiral Coil Video

Transcript :

Welcome to MyBinding video. This is everything you need to know about spiral coil. First, there are sizes ranging from a 6mm diameter all the way to 50mm. The smallest size can hold up to 30 pages and the largest can hold up to 444. A great benefit to spiral coil is that the pages lay flat. Better yet, they fold nicely back to back and the choices of color is one of the largest in any type of binding. Standard size coil has a 4:1 pitch, which is compliant with its respected hole punches. The standard length of each coil is 12 inches. Coil should always be longer than the pages you're binding. There are also custom lengths up to 36 inches. With the extra length on each end, you finish off your book with special wire cutting crimpers. Once you're done, you'll have yourself a spiral coil bound book. For more demos, reviews and how-to's, go to MyBinding.com.
