Product Description

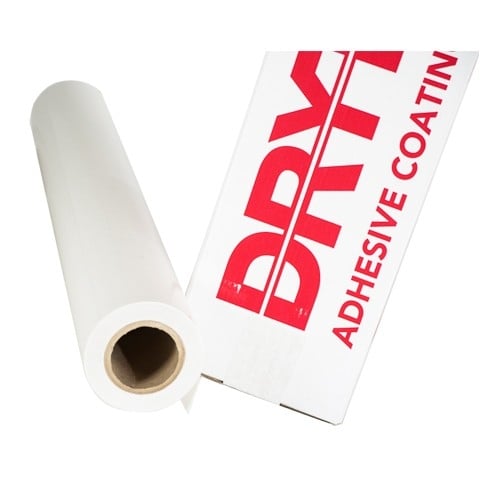

MediaShield Satinex UV 3mil 51" x 328' is one of Drytac's most versatile overlaminating films, offering a broad range of applications. This HeatSet PVC overlaminating film has a semi-gloss finish, which enhances color saturation and contrast. MediaShield Satinex UV bonds to inkjet output with high ink coverage, even inkjet prints printed on photo gloss paper. This film can also be flush trimmed without danger of delamination. It is excellent for textured images, digital photo laser output (Lambda / LightJet), or laminating a collage or images to be die-cut. Get 51" x 328' of 3mil MediaShield Heatset Satinex UV film with every order. Product number SX51328.
Product Details
- A hybrid between thermal and pressure sensitive films.
- Co-extruded for a carefully balanced ratio of polyester film to adhesive.
- Bond well to inkjet output with high ink coverage - even on photo gloss paper and digital photo laser output (Lambda / Lightjet).
- Image can be trimmed flush, or even die-cut without fear of delamination.
- Due to its quick setup / curing time, MediaShield laminated graphics can be handled or rolled immediately after processing.
- Protected by a release liner because the adhesive on these films is slightly tacky when cool.
Specifications
- Film Width: 51"
- Film Length: 328'
- Film Thickness: 3.0mil
- Core Size: 3"
- Finish: Semi-Gloss
- Base Film: 2.0mil (50 micron) PVC (vinyl)
- Adhesive: 1.0mil (25 micron) solvent acrylic
- Initial Tack: Low
- Application Speed: 1' - 6' per minute
- Application Temperature: 185 F - 210 F
- Release Liner: Moisture Stable Paper (70gsm)
- Compatible Equipment: 3" Core Thermal Roll Laminators
Technical Data
MediaShield Satinex is a 2 mil (50µ) phthalate-free, UV stabilized, clear PVC laminating film with a semi-gloss finish, coated on one side with a heat activated solvent acrylic adhesive that is protected by a moisture stable bleached Kraft gridded release paper coated on one side with siliconized PE.
Typical Applications
- Bonds to inkjet output with high ink coverage, even inkjet prints printed on photo gloss paper.
- Can be flush trimmed without danger of delamination.
- Ideal for textured images, Lambda output, laminating a collage, or images that are die-cut.
Product Structure
| Film |
Semi-Gloss PVC |
| Adhesive |
Solvent Acrylic (Heat Activated) |
| Release Liner |
1 Side PE Coated Bleached Kraft Grid Paper (Moisture Stable) |
Physical Characteristics
| Film Thickness |
2 mil (50µ) |
| Adhesive Layer |
1 mil (25µ) |
| Film/Adhesive Ratio |
2:1 |
| UV Protection Factor |
Film contains UV stabilizers, which prevent film degradation and provide UV protection to the underlying image |
| Outdoor Durability |
Not Applicable |
| Service Temperature Range |
-4°F to 203°F (-20°C to 95°C) |
| Peel Strength (20 min, FTM1) |
18 N/25mm |
| Shelf Life |
Use within 1 year after opening original box |
| Storage Conditions |
59°F to 72°F (15°C to 22°C); 50 - 55% Relative Humidity |
Process Settings
| Equipment Type |
Temperature |
Speed |
| Roller Laminator |
185°F to 215°F (85°C to 102°C) |
1 ft to 8 ft (0.3m to 2.5m) per minute |
| Press |
185°F to 210°F (85°C to 99°C) Dwell Time: 2-8 minutes |
