Product Description

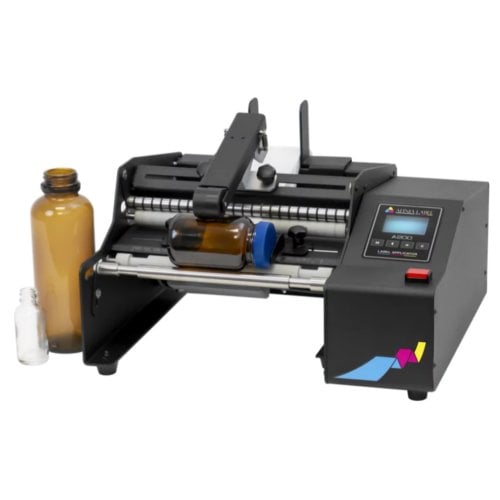

The A200 is a semi-automatic labeling machine designed for applying labels on rolls to bottles, cans, jars, and other types of cylindrical containers. Both single and front-and-back labels can be applied with a simple push of a button, or with the included foot pedal. An easy-to-use calculator is available to quickly determine values for perfect placement and gap widths. The ultrasonic media sensor is easily trained to detect gaps in a wider range of media than mechanical flag sensors common in other applicators, allowing the A200 to perform consistently, even on thin materials. Labels are affixed evenly, efficiently, and with consistent accuracy.
Product Details
- Designed for wine bottles, cans, jars, etc.
- Label up to 600 containers per hour
- Apply one or two labels per container
- Digital LCD touch panel - Simple-to-use digital display panel shows status information and facilitates easy setup
- Operation modes - Choose between simple push button or hands-free foot pedal operation
- Ultrasonic sensor - Reliably sense gaps in a wide range of media
- Small to large sizes - Compatible with container sizes ranging from 1 to 6.3 inches (25-160mm) in diameter
Specifications
- Dimensions: 365mm (14.4") W, 245mm (9.5") H, 330mm (13") D
- Weight: 12kg (26.5 lbs)
- Container Diameter: 25 to 160mm (1 to 6.3 inches)
- Container Height: 80 to 240mm (3.15 to 9.45 inches)
- Label Roll Diameter: <200mm (7.87 inches)
- Core Size: 46 to 76mm (1.8 to 3 inches)
- Label Width: 25 to 150mm (1 to 6 inches)
- Label Length: 25 to 500mm (1 to 19.68 inches)
- Label Gap: >2.5mm (.1 inches)
- Dispensing Speed: 0.1m/sec (4 in/sec)
- Supply voltage: North America - 110V AC, 60 Hz (Europe, Middle East, Asia - 220V AC, 50Hz)
