Product Description

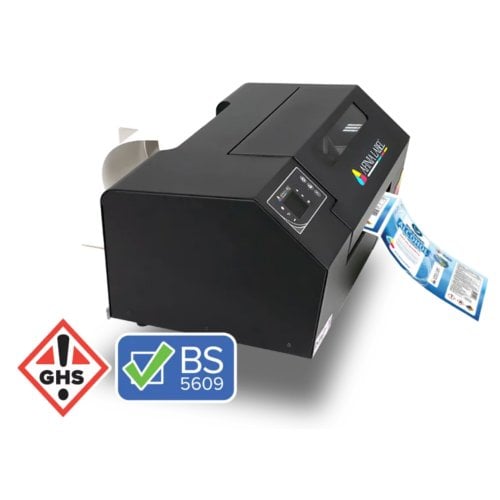

Create durable and high impact fanfold labels with F502 Fanfold Color Label Printer. This versatile printer can be used in producing durable chemical labels, warehouse and distribution labels, inline manufacturing labels, and chemical retail labels. Both pigment-based and dye-based inks can be used with the printer. Pigment-based prints can withstand moisture, abrasion, sun-fading, and extreme temperature making it perfect for packaging requiring GHS (Globally Harmonized System), as well as those with high exposure to moisture, such as beverages and bath products. Dye-based prints are high-impact, colorful, and vibrant, making them ideal for prime labeling applications, such as in retail environments. With the printer’s ink interchangeability, operators get to maximize the benefits offered by both inks, the durability of pigment and the vibrancy of dye inks. Separate CMYK ink cartridges contribute to a lower cost per label, since only colors that are empty need to be replaced, offering great value for small to mid-sized label applications. Chemical drum labels can be produced in the label printer, it has been tested and certified BS 5609-compliant and uses GHS (Globally Harmonized System), which helps keep chemical manufacturers in compliance with packaging and transportation requirements. This testing evaluates the permanence of the print through abrasion and submersion in salt water for a period of 90 days. Designed for industrial use, the color label printer is made from heavy duty construction with an all steel industrial cover. A clear window on the front part of the printer allows for print bed visibility and status monitoring. It also includes improved sensors which allow for greater compatibility with specialty media, such as reflective metallic material. Compared to other models, the improved F502 Color Label Printer toolbox allows for increased control, including ‘Pause’ and ‘Cut’ functions, and easier Firmware upgrades. Produce waterproof, durable, and eye-catching labels with in-house production flexibility and reduced long term labeling costs with F502 Fanfold Color Label Printer!
Product Details
- Pigment and Dye-based Labels.
- BS5609 Certified for Durable Labels.
- Built for Industrial Use.
- Versatility Meets Economy.
- Compared to the original F501 Color Label Printer:
- Fanfold Input
- Dual-ink capability (dye & pigment)
- Separate CMYK inks for economy
- BS5609-certified pigment inks
Specifications
- Printer
- Print technology: HP Thermal Inkjet
- Inks: Option of Dye or Pigment — Individual Cyan/Magenta/Yellow (26ml), Individual Black (78.4ml)
- Print resolution: Up to 4800 dpi
- Print speed: Artwork-dependent, Approximately 5.2 in/sec (13.2cm/sec) printing a 2.2in (56mm) wide image in normal mode
- Print width: 1.0"–8.5" (25.4mm–215.9mm)
- Print length: 0.75"–48" (19mm–1219.2mm)
- Media
- Media types: Compatible with a range of paper, polyester, polypropylene, and vinyl label stocks
- Media width: 1.5"–8.65" (38.1mm–219.7mm) including liner
- Thickness: 0.004"–0.01" (0.1mm–0.3mm)
- Media sensors: Gap, continuous, black mark. Auto-calibrating
- Die-cut label gap: 0.125" (3.0mm)
- Black mark: 0.125" (3.0mm) – 0.3" (8.0mm) Height, =1.25" (31.75mm) Width
- General
- Cutter/sheeter: Powered
- Input: 8.65" (219.7mm) max width, 6" (152.4mm) height from tabletop (unlimited capacity below)
- Interfaces: USB 2.0 connection and 10/100 Base-Tx Ethernet
- Operating system: Windows 7+ (32 and 64 bit)
- Display: 2" mono display with buttons
- Operating temperature: 59°–90°F (15°–32°C)
- Storage temperature: -40°–140°F (-40°–60°C)
- Operating humidity: 20–80% RH
- Non-operating humidity: 10–90%
- Dimensions: 20" (508mm) W x 20.125" (511mm) D x 9.75" (248mm) H
- Weight: 33.6 lbs. (15.24kg)
- Agency Certifications: CE, FCC
- Warranty: One year
- Afinia part numbers:
- F502 w/ Dye Inks: 35431
- Dye Printhead and Ink Set: 30986
- Cyan Ink - Dye: 30636
- Magenta Ink - Dye: 30643
- Yellow Ink - Dye: 30650
- Black Ink - Dye: 30657
- F502 w/ Pigment Inks: 35424
- Pigment Printhead and Ink Set: 30993
- Cyan Ink - Pigment: 30664
- Magenta Ink - Pigment: 30671
- Yellow Ink - Pigment: 30687
- Black Ink - Pigment: 30685
