Product Description

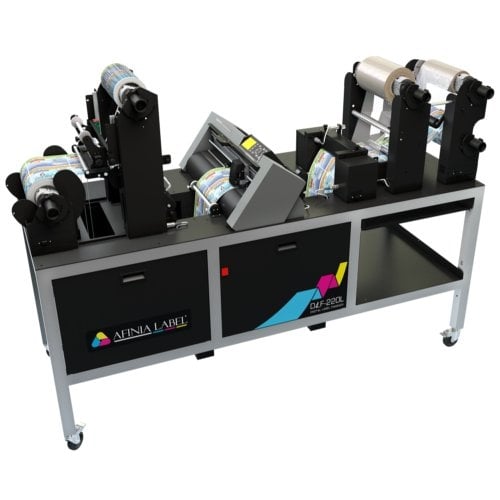

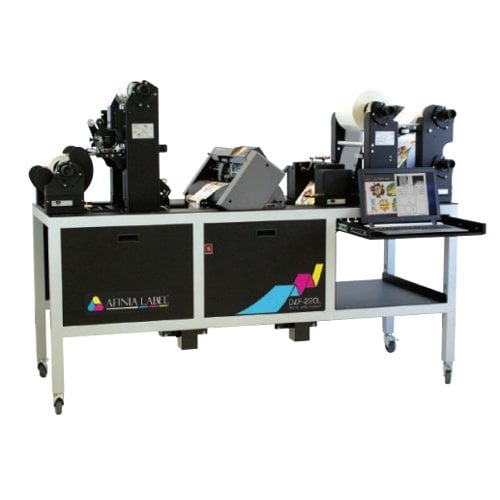

This DLF-220L Digital Label Finisher is an all-in-one system that unwind, laminate, digitally plotter-cut, remove waste, slit, and rewind that produces professionally cut and finish short-run labels from your digital color label printers. The DFL-220L has an advanced plotter cutting technology that allows you to cut different types of material and shapes, on the fly, without the additional cost of dies. It is also equipped with a cutter management tool/camera black-mark registration system that provides cutting speed optimization without synchronization issues. Its ultra-precise cutting abilities, easily produce beautiful full-bleed labels. The DLF-220L can also laminate labels for added durability—no need for special label media. If you are looking for an on-demand, in-house, short run label finisher for your digital color label printer, then this DLF-220L is the perfect match for you.
Product Details
- All-in-one system that unwind, laminate, digitally plotter-cut, remove waste, slit, and rewind that produces professionally cut and finish short-run labels from your digital color label printers
- Has an advanced plotter cutting technology that allows you to cut different types of material and shapes, on the fly, without the additional cost of dies
- Equipped with a cutter management tool/camera black-mark registration system that provides cutting speed optimization without synchronization issues
- Its ultra-precise cutting abilities, easily produce beautiful full-bleed labels.
- Can also laminate labels for added durability—no need for special label media
Specifications
- Plotter Specifications:
- Data interface: USB 2.0
- Linear cut speed: Dependent on graphic 2 squares across 80x80 mm (3.15" x 3.15") = 34 labels per min.
- Programmable Cutting Force: 20 gf - 300 gf in 31 steps (Max 300 gf)
- Test cut function: Yes
- Cut to registration: Single point registration black-mark (4 mm (0.16") square)
- Cut ability: Both printed and unprinted media
- Interface & Software: DLF-220 Software (Windows OS) cutter management tool. Plug-ins for CorelDraw and Adobe Illustrator.
- Power requirements: 100-240 VAC, 240 watts
- Other Specifications:
- Input / Output max. roll diameter: 250 mm (9.84")
- Minimum media width: 110 mm (4.33")
- Maximum media width: 225 mm (8.86")
- Maximum cutting width: 200 mm (7.87")
- Minimum slitting width: 19 mm (0.75")
- Number of slitting blades: up to 8
- Lamination module: YES
- Dimensions (L x H x W): 200 cm (78.74") x 145 cm (57.06") x 70 cm (27.56")
- Weight (estimated): 235 kg (518 lb)
- Roll core size: 76 mm (3")
- Minimum / Maximum label length: 10 mm (0.39") / 381 mm (15")
- Maximum media thickness: 0.25 mm (10 mil)
- Maximum cut speed: 600 mm/s (24 in/s) in all directions
- Warranty: One year parts and labor. Usage limitation may apply
