Product Description

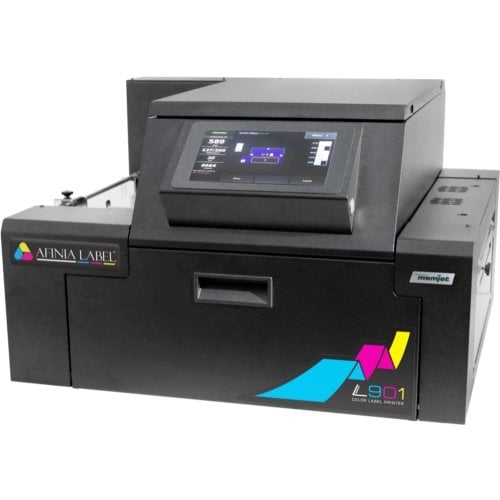

This Afinia Label L901 Industrial Color Label Printer combines industrial design, exceptional image quality, and high production speeds with a new ability to service and maintain the printhead “on-the-fly” that is designed specifically for inline applications. This makes the L901 perfect for long roll-to-roll print jobs or inline integration with label finishers, applicators, dispensers, and more. Producing vibrant full-color prints in high resolution, the L901's new optimized ink formula delivers improved UV and water resistance, deeper blacks, and a longer printhead life. Featured with five high-capacity 250ml CMYKK ink cartridges, large print volumes are now more economical. Optional (sold separately) UW300 Unwinder & RW300 Rewinder system pairs perfectly with the L901 to allow for continuous, roll-to-roll label production. Easily handle rolls up to 12″ in diameter outside diameter for high-volume jobs and reduced media costs.
Product Details
- Designed for easy inline integration.
- On-the-fly printhead servicing.
- Lowest cost per print.
- High print speeds.
- Professional resolution.
- Improved UV & water-resistant inks.
- New Optimized CMYKK Ink Formula. Increased UV and water resistance with deeper blacks, all at a new lower cost of ownership.
- Touchscreen Operation. Easily store, run and pause jobs, or perform maintenance tasks through a userfriendly interface.
- Industrial Build Quality. Designed for all-day operation—either roll-to-roll or inline—in a production environment.
- Professional-Quality. Output 1600 DPI resolution delivers your jobs in style and on time, even with variable data.
Specifications
- Printer:
- Print method: Memjet Waterfall Printhead Technology® 11 Integrated Circuit (IC) Chips – 70,400 nozzles
- Inks: Dye-based, 250mL CMYKK (1.25L total) — Water/UV resistant formula
- Print resolution: 1600 x 1600 dpi – 1600 x 800 dpi
- Print speed: 6 inches (152 mm) per second – 12 inches (305 mm) per second
- Print width: 8.5 inches (216 mm)
- Cutter/sheeter: Powered
- Media:
- Media Size: Width: 2"–9" (50.8 mm–229 mm)
- Length: 1"–48" (25.4 mm–1220 mm)
- Thickness: Minimum 0.005" (0.13 mm); Maximum 0.01" (0.3 mm, including liner)
- Core diameter: Requires 3" (76.2 mm) cardboard core
- Unwind/Rewind: 12" (305 mm) outside diameter
- Media sensors: Gap (movable), continuous, black mark
- Die-cut gap: Minimum 0.125" (3.0 mm); Maximum 0.3" (8.0 mm)
- Black mark: 3 mm wide, 25.4 mm long on left
- Substrates: Compatible with a wide range of paper, polyester, polypropylene, and vinyl label stocks
- General:
- Interfaces: USB 2.0, TCP/IP (Manual IP configuration or DHCP), GPIO available for external device control
- Operating system: Windows 7, 8, and 10 (32 and 64 bit)
- Barcode font: 1D Barcode at least Grade B (Code39) with 10mils bar width
- 2D code printing: 2D Barcode at least Grade B (PDF417) with 10mils cell size
- Operating temperature: 15°–35° C (59°–95°F) at RH 20–80%
- Overall dimensions: 22.5" (572 mm) W, 20.5" (521 mm) D, 14" (356 mm) H
- Weight: 85 lbs. (38.5 kg)
- Rated voltage: AC 110V – 220V, auto-sensing
- Warranty: One year Manufacturer's Warranty
Printers Cartridges, Print Heads and Accessories
| Product Name | Item Number |
| STANDARD MEMJET INK CARTRIDGES | |
| Afinia Label L901/CP950 Standard Cyan Memjet Ink Cartridge | AFN26723 |
| Afinia Label L901/CP950 Standard Magenta Memjet Ink Cartridge | AFN26716 |
| Afinia Label L901/CP950 Standard Yellow Memjet Ink Cartridge | AFN26709 |
| Afinia Label L901/CP950 Standard Black Memjet Ink Cartridge | AFN26730 |
| PRINT HEADS | |
| Afinia Label L901/CP950/L901 Plus Replacement Printhead | AFN28025 |
| ACCESSORIES | |
| Afinia XL Large Capacity Rewinder for L801 and L901 Label Printers | AFN29110 |
| Afinia XL Large Capacity Unwinder for L801and L901 Label Printer | AFN26681 |
