Name: Afinia Label LT5C CMYK Plus White Printer
Brand: Afinia Label
SKU: AFNLT5C

Afinia Label LT5C CMYK plus white printer for specialty label materials

Afinia Label LT5C CMYK Plus White Printer

$13,350.00

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# AFNLT5C

Five-color (CMYK+White) printing.
Durable (UV, water, abrasion) prints.
Print on clear, foil, colored, or other specialty materials.
Use pre-die cut or continuous labels.

Product Description

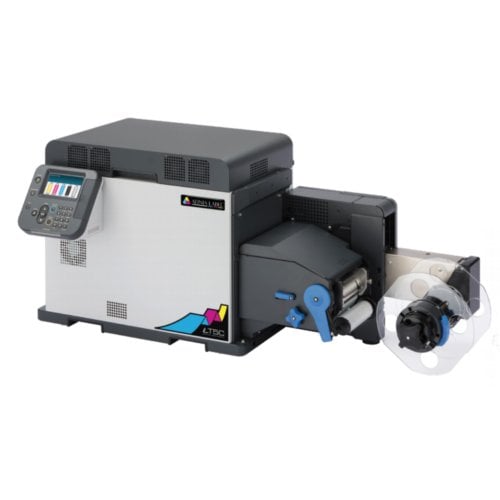

The LT5C CMYK+White label printer offers professional five-color narrow-format output for a wide variety of markets. Whether it’s high-durability labels, freezer and cold-storage labels, food and beverages or household goods—the LT5C from Afinia Label can deliver that and more!

Product Details

Five-color (CMYK+White) printing.

Durable (UV, water, abrasion) prints.

Print on clear, foil, colored, or other specialty materials.

Use pre-die cut or continuous labels.

Low fusing temperature provides greater substrate flexibility.

Print speed: Up to 9m/min (6ips).

Brilliant, high-resolution graphics (1200 x 1200 dpi).

5th Station White Toner. The fifth station allows for white printing, making it easy to print brilliant designs on transparent and dark materials. This feature gives users the ability to reach a wider range of markets and applications that other label printers simply cannot serve.

Digital LED Print Technology & Substrate Capabilities. A low fusing temperature gives the LT5C unrivaled media compatibility - especially when handling heat-sensitive synthetics and films. This LED-based technology opens the door to a range of substrates that other label printers simply can’t handle. Dry toner technology gives users the ability to use uncoated and flood-coated stocks also provides further advantage for printers looking to reduce overall cost per label.

Media Handling. Fitting rolls ranging from 1"-5.1" wide with a maximum OD of 8", the LT5C gives users the versatility to run a variety of label sizes. Two types of sensors are used to detect printing position, Black Mark and Gap, making it easy to run both continuous and die-cut media. The automatic cutter ensures accurate end of job cutting, enabling users to print one or many labels quickly and efficiently.

Usability. The LT5C is intuitive and simple to install, requiring minimal training or technical skills. The simple desktop configuration allows for easy consumable and parts access. Rolls of different types can quickly be exchanged, and consumables have a high capacity for extended printing. The 4.3" LCD color display panel and paper handling guidance makes it easy to feed and print labels on demand.

Specifications

Color Options: Four-color (CMYK) and Five-color (CMYK + White)

Media Type¹: Uncoated and Glossy Labels, Textured Stocks, Synthetic film label, Film label (PET)

Media Width: Roll Paper: 1.0" (25.4mm) to 5.1" (130mm) including liner

Media Thickness: 0.076 - 0.250mm (including liner)

Label Length: 0.5" (12.7mm) - 52" (1320.8mm)

Printh Width: .83" (21.16mm) - 4.95" (125.76mm)

Media Detection: Black Mark (printed on back of liner), Gap, None

Media Format: Continues; Roll to Cut

Roll Outer Diameter / Core Inner Diameter: 8" (150mm) / 3" (76.2mm)

Roll Wind Direction: Face-out, Face-in

Minimum Print Margin: Top, Bottom, Right, Left: 0.083" (2.12mm) each

Print Position Accuracy / Cut Accuracy: Vertical: ± 0.02" (0.5mm), Horizontal: ± 0.02" (0.5mm) / Vertical: ± 0.02" (0.5mm)

Minimum Cuttable Media Length: 4" (101.6mm)

Print Resolution: 1200 x 1200 dpi, 600 x 600 dpi

Print Speed: Max. 9m / min (6ips)

Interface: High-speed USB 2.0, 10 Base-T/100 Base-TX / 1000 Base-T Ethernet

Protocol: TCP/IP, NBT, IEEE802.1X

Printer Language: Adobe PostScript 3, PCL 5c emulation, PCL 6 (XL) emulation

Supported OS: Windows 10, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows Server 2016, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64

Processor Speed: 1.2 GHz ARM CPU

Memory (Std./Max): 2 GB / 2 GB

Hard Disk Drive: 250 GB

Font: Adobe PostScript 136 fonts, PCL emulation 81 scalable fonts, 4 bitmap fonts

Auto Cutter: Rotary blade "Cut on the Fly"

Size (W x D x H) - Printer with Unwinder: 41" (1040mm) x 18.8" (477mm) x 17.4" (441mm)

Weight (includes supplies): Four-color approx. 134.5lb. (61 kg) / Five-color: approx. 136.7lb. (62 kg)

Operating Environment: Operating: 50° - 86°F (10° - 30°C), 20% - 70%RH, Storage: 14° - 109.4°F (-10° - 43°C), 10% - 90%RH, No condensation

Power Source: 110-127V AC ± 10%; 220-240V AC ± 10%

Safety and Environment: CE Mark, GS Mark, WEEE and RoHS2 + REACH, UL

Toner / Image Drim Life (C, M, Y, K)²: 9K Labels (A6 20% coverage per color), 30K Labels (A6 5% coverage per color)

Toner / Image Drim Life (W)²: 4.5K Pages (A6 20% coverage per color)

Transfer Belt / Fuser Life²: 150K Pages (Operating distance Approx 44 Km)

Waste Toner Box Life²: 25K Pages based on 20% CMYK converage

¹ All media should be pre-tested
² 2 A6 label for 3 page per job
Specifications are subject to change without notice
