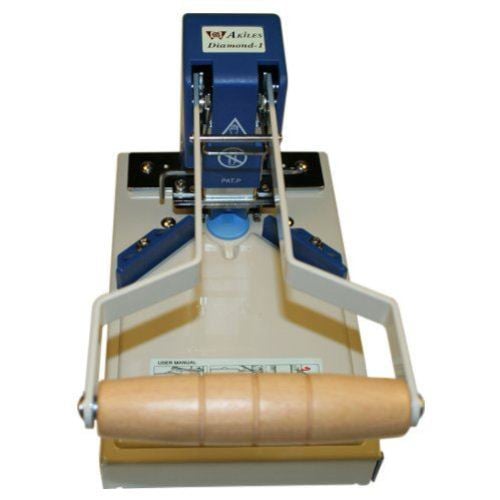

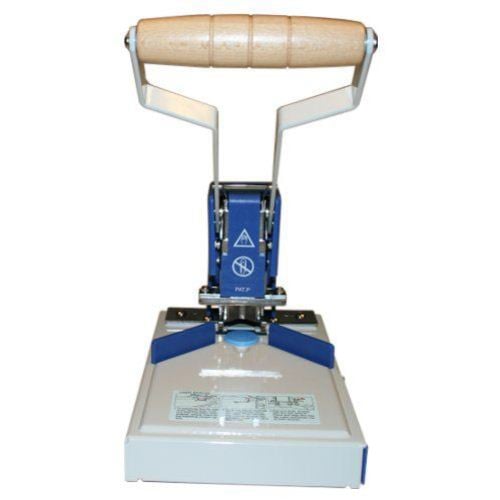

Akiles Diamond 1 Corner Rounding Machine (Includes Die)

Name: Akiles Diamond 1 Corner Rounding Machine (Includes Die)
Brand: Akiles
SKU: Diamond1
Rating: 4.75 (4 reviews)

Product Description

The Akiles Diamond 1 corner rounding machine is one of the strongest and most efficient manual corner rounding machines in its class. If you are looking for a professional and consistent result this corner rounding machine is for you. The round cornering machine comes standard with the 1/4" die but 1/8", 3/8", 45 degree (straight), and Half Moon Dies can be purchased separately. Here is some more information about the Diamond 1...

Product Details

Model: Diamond-1 / Diamond-5
Operation: Manual / Electric
Maximum Capacity: 0.4" / 1.97"
Included Dies: 1/4"
Available Dies: 1/8", 1/4" 3/8", 45 degrees (straight), half-moon / 1/8", 1/4" 3/8"
Waste Backset: Included
"L" Guide: Included
Plastic Pads: Included / N/A
Radius Alignment Guide: Included
Dimensions: 9" x 5.5" x 5.8" / 12" x 12.75" x 6.5"
Weight / Volume: 5.5 lbs / 0.40 CbFt / 55 lbs / 1.00 CbFt
Actual Machine Dimensions (L x W x H): 6" x 9" x 11"
Shipping Length:12"
Shipping Width:7"
Shipping Height:8"
Shipping Weight:7 Lbs.
Manufacturer's Warranty: 1 Year Manufacturer

Specifications

Carefully crafted with only the highest quality components.
Work with all standard materials, like: PVC, polyester, leather, paper, polypropylene, etc.
Have high productivity: Specially designed to cut through multiple sheets at a time with the least effort and with minimum die depreciation.
Are practical: With an interchangeable die system for your various jobs.
Are ideal for rounding covers, pouches, pictures, all types of IDs, invitations, postcards, etc.

Akiles Corner Rounders

Model Name

Model

Maximum Capacity

Included Dies

Available Dies

Waste Backset

"L" Guide

Plastic Pads

Radius Alignment Guide

Detachable Pressing Bar

Protective Safety Cover

Work Table

Storage & Trash Bin

Motor

Dimension (W x L x H)

Weight
Akiles Diamond 1
Corner Rounding Machine

0.4" / 1.97"

1/4"

1/8", 1/4" 3/8", 45 degrees (straight), half-moon / 1/8", 1/4" 3/8"

Included

Included

Included / N/A

Included

N/A

N/A

N/A

N/A

N/A

9" x 5.5" x 5.8" / 12" x 12.75" x 6.5"

5.5 lbs / 0.40 CbFt / 55 lbs / 1.00 CbFt
Akiles Diamond 5
Commercial Duty Electric Corner Rounding Machine

1.97"

1/8", 1/4", 3/8"

1/8", 1/4" & work table

Included

Included

N/A

Included

N/A

N/A

N/A

N/A

N/A

12" x 12.75" x 6.5" (D x H x W)

55 lbs. / 1.00 CbFt
Akiles Diamond 6
Heavy Duty Electric Corner Rounding Machine

2-3/8" (60mm), 600 Sheets (20lb)

1/4"

1/8", 1/4", 3/8",1/2", 5/8", Straight, and Half-Moon

N/A

N/A

N/A

N/A

No

Included

Included

Included

100 W

24-5/8" x 12-5/8" x 17-1/2"

104 lbs
Akiles Diamond 7
Heavy Duty Electric Corner Rounding Machine

2-3/4" (70mm), 700 Sheets (20lb)

1/4"

1/8", 1/4", 3/8", 1/2" by special order, 5/8" by special order, Straight, and Half-Moon

N/A

N/A

N/A

N/A

Yes

Included

Included

Included

200 W

24-5/8" x 12-5/8" x 17-1/2"

110 lbs

Replacement Knives and Accessories

Product Name	Item Number
REPLACEMENT KNIVES
Akiles Diamond 1 Corner Rounding Machine Half Moon Knife	AKAD1-KHM
Akiles Diamond 1 Corner Rounding Machine Straight Cut Knife	AKAD1-KST
Akiles Diamond 1 Corner Rounder Round Hole Knife	AKAD1-KHP
Akiles Diamond 1 Corner Rounding Machine 1/4" Radius Knife	AKAD1-K14
Akiles Diamond 1 Corner Rounding Machine 1/8" Radius Knife	AKAD1-K18
Akiles Diamond 1 Corner Rounding Machine 3/8" Radius Knife	AKAD1-K38
ACCESSORIES

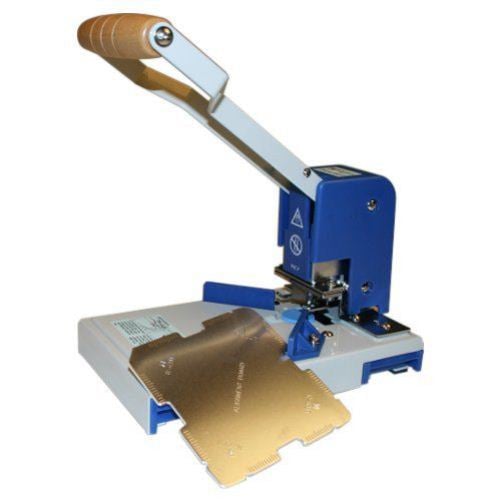

Akiles Diamond 1 Corner Rounding Machine Radius Master Selector	AKAD1RMS
Akiles Diamond 1 Corner Rounding Machine Half Moon Die Depth Guide	AKAD1-DG
Akiles Diamond 1 Corner Rounding Machine Plastic Cutting Pads (5pk)	AKAD1-PP

Video

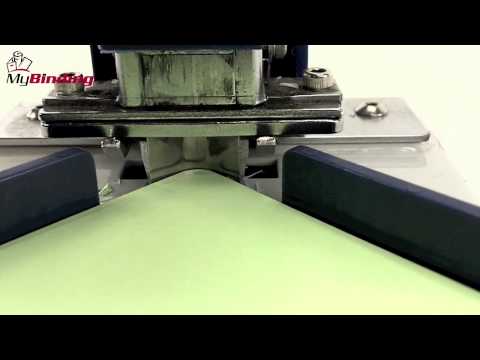

Akiles Diamond 1 Corner Rounding Machine Demo Video

Transcript :

Welcome to MyBinding video. This is a look at the Diamond 1, a manual corner rounding machine by Akiles. The Diamond 1 is a great little machine to round the corners of every project, card, paper you might have. Simply slide your materials into the corner and press down with your hand.

5 Stars

Easy to use and cuts nicely!

Quality product

Works great!

Grea tproduct for the money

Works perfectly, but I will they offered a 1/2 inch blade

Excelent !!

I love this corner cutter. Now i can work faster in my proyects.

Reviews in Other Languages

Resources

Akiles Diamond 1 Corner Rounding Machine Brochure Download

Staff Review

Akiles Diamond 1 Corner Rounding Machine Review

Overview:

The Akiles diamond 1 is designed to help you quickly and easily add round corners to all of your important documents, promotional materials and other printed items. It is perfect for rounding the corners on your paper, PVC, polyester, leather and polypropylene items.
It uses a special corner cutting die to add a radius to the corner on a small stack of documents at a time.

Strengths and Features:

One of the best things about the Akiles Diamond 1 corner rounder is the cost. The Diamond one costs less than $150 including a die. This is about $50 less than most other comparable corner rounding machines on the market. However, the most substantial savings with the Diamond 1 comes in the dies. Dies for the Diamond 1 only cost about $20. Compare that to $70-$100 for most other corner rounding dies and the Akiles is a much cheaper corner rounding option.
The Akiles Diamond 1 allows you to round the corners on a stack of paper up to 0.4" at a time. This means that you can process a fairly large stack of documents in very short amount of time. There are a few corner rounders that can handle a little bit more paper than this but not very many.

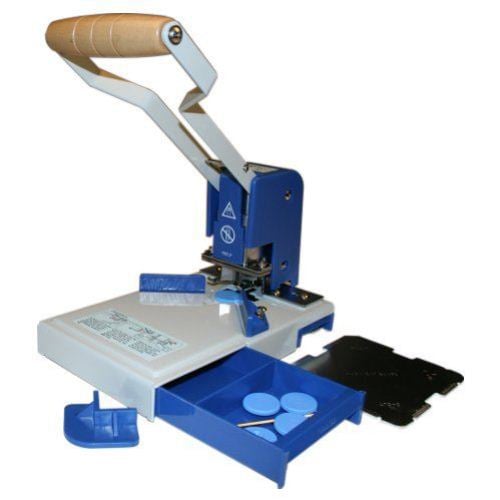

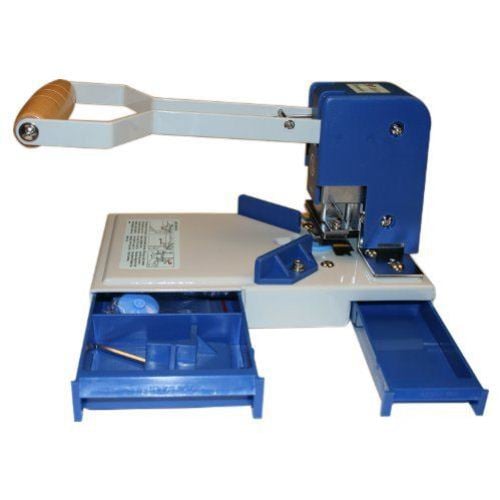

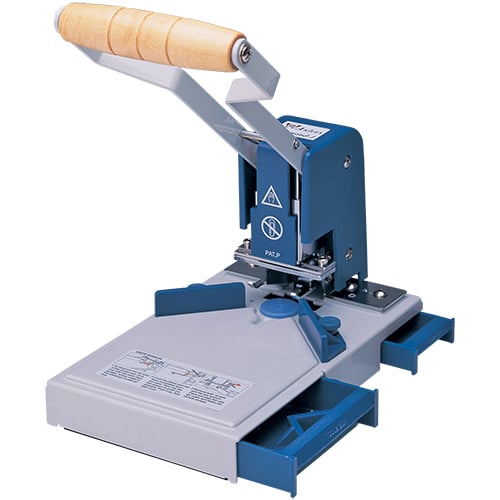

The Akiles Diamond 1 ships with the tools that you need to use in order to change the dies and with a convenient radius selector tool to help you choose the right radius die for your project. The tools and the radius selection fit conveniently in a drawer that is located in the base of the unit. You can even fit extra radius dies in the base of the corner rounder.
There are a number of different radius dies available for use with the Diamond 1 including a 1/8" radius die, a 3/8" radius die, a 3/8" radius die, a 1/4" radius die, a 45 degree angle die and a half moon die for thumb cut calendar punching.

Weaknesses and Limitations:

Although there is a fairly decent selection of dies for the Akiles Diamond 1, other corner rounders have a lot larger selection of dies available for them. If you need to round your documents with a larger radius or with an extremely small radius, you will need to select a different corner rounder.
The cutting table on the Akiles diamond 1 is actually a lot smaller than an 8.5" x 11" document. This means that you have to hold the document with one hand and keep it pressed in place while you pull the handle with your other hand.

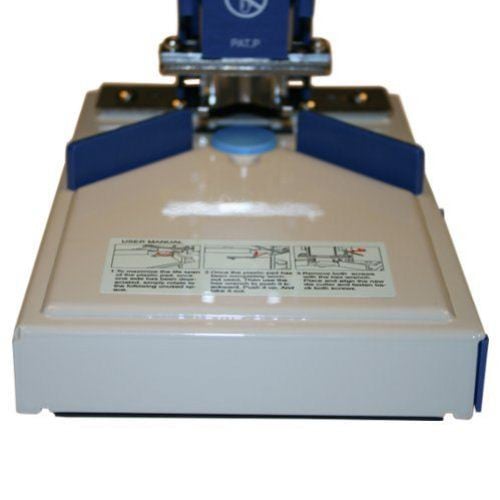

The Akiles Diamond 1 uses small blue cutting pads that wear out during the cutting process. These pads need to be replaced on a regular basis in order to ensure the quality of cutting that is achieved. These pads aren't very expensive and come in packs of five. It is worth having a few on hand inside the drawer of your Diamond 1.

Recommendation:

For organizations that need to round the corners on small to medium numbers of documents or items, the Diamond 1 is an ideal solution. It is simple to use and offers an excellent value for your money. However, organizations that need to round a lot of documents or that need special sized radius corners for their documents may need to consider a larger corner rounding unit.
