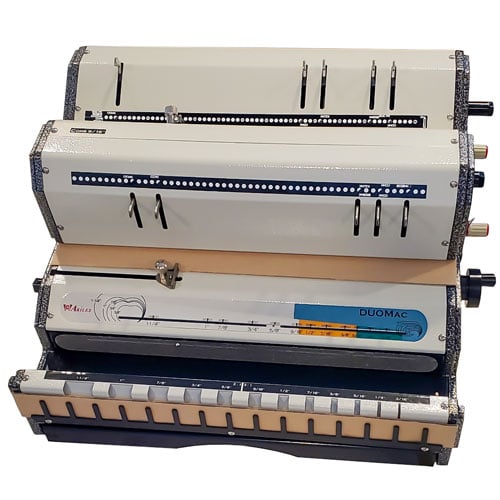

Name: Akiles DuoMac 541 5:1 and 4:1 Pitch SpiralCoil Binding Machine
Brand: Akiles
SKU: AKDUOMAC541
Rating: 4.87 (68 reviews)

Akiles DuoMac 541 5:1 and 4:1 Pitch SpiralCoil Binding Machine

$849.00

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# AKDUOMAC541

Manual punch for up to 20 sheets* at a time (4:1 & 5:1 round coil holes)
Includes manual crimping pliers
Heavy-duty, perfect for print shops, schools, and large offices
14" punching length with open throat & 5 disengageable pins

Product Description

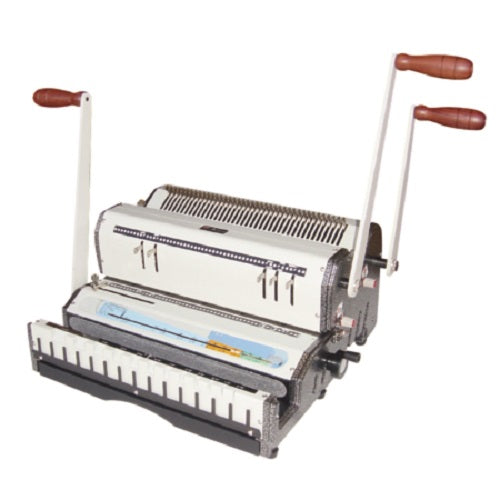

With the Akiles DuoMac 541 you can bind documents with both 5:1 pitch spiral coil and 4:1 pitch spiral coil. The DuoMac 541 is the only combination machine of its kind. The unique design of the 541 includes a the ability to punch both a 5:1 pitch hole pattern for spiral coil binding and a 4:1 pitch hole pattern for spiral coil binding. This gives you the ability to choose the look and feel of your coil bound books and presentations. Five to One pitch coil (5 holes per inch) has a more tightly wound look than the more common 4:1 pitch coil (4 holes per inch). Normally, you would have to use two different binding machines to do the same tasks as the DuoMac 541. This meas that the DuoMac 541 can save you space, time and money.

Product Details

With two independent punching die sets, this versatile & easy to use combo binder allows you to punch & bind multiple systems and or different pitches

Easy to use manual punch handles

Depth Margin Control: Provides the correct punch margin depth for each spine size. Maximizes document tear resistance.

Open Punching Throat & Continuous Punching Guide: For an easy alignment & punching of longer documents.

Master Selector: Determines the correct: Coil Diameter, Depth Margin & Pitch

Waste Drawer

Side Margin Control: Provides and evenly Centered punch for all document sizes.

Disengageable Die Pins: All dies can be independently disengaged, allows punching of any size document while preventing partial side-end perforation

Heavy-Duty design by CAE (Computer-Aided Engineering) technology

Perfect for Bindery, Print Shop, Copy Center, Corporation, Advertising Agency, School, Office and more!

FREE coil crimpers with any Coil combination.

Electric inserter sold separately

Specifications

Single punching capacity: up to 20 sheets (20lbs paper/ letter size)

Single punching length: 14" (13" for coil) - with Open Ends for longer sizes

100% disengagement dies

Weight: 64lbs

Manufacturer's Warranty: 1 Year Manufacturer's Warranty

Compatible Supplies: 4:1 Spiral Binding Coils
5:1 Spiral Binding Coils

Staff Review

Akiles DuoMac 541 5:1 Pitch and 4:1 Pitch Coil Binding Machine Review

Overview:

The Akiles DuoMac 541 is a high quality combination binding system that is designed for binding documents spiral coil.
The DuoMac 541 is the only machine of its kind. It includes a unique design that allows users to punch both a 5:1 pitch hole pattern for spiral coil binding and a 4:1 pitch hole pattern for spiral coil binding.
Normally, you would have to use two different binding machines to do the same tasks as the DuoMac 541. This means that the DuoMac 541 can save you space, time and money.

Features/ Strengths:

The DuoMac541 is capable of binding documents with both 4:1 and 5:1 pitch spiral coil. Although there are a large number of 4:1 pitch coil binding machines available on the market there are very few machines capable of binding documents with 5:1 pitch coil. With this machine, you can choose the pitch of coil that you want to use depending on the size of your document or the look that you prefer.
Both punching throats on the 541 Duomac include five disengageable punching pins. Using these punching pins it is possible to use this machine with all of the most common sizes of paper. Each punch is capable of handling documents up to thirteen inches in length. However, the throats on both punching heads are open so that you can punch longer paper using a two step process.
On the right hand side of the machine you will notice two small knobs. These knobs are used to adjust the punching margin on this machine. You can set the machine to punch the holes closer to the edge of your paper for smaller sized documents or further away for larger sized documents. Using this feature you can maximize the strength of your bound documents while ensuring that the pages turn freely on your coils.
The DuoMac 541 also includes a high quality pair of spiral coil crimping pliers to help you finish your documents. These pliers are used to cut and crimp the ends of your bound document so that the spiral coil does not spin back off the edge of your book.

Limitations/Weaknesses:

The DuoMac 541 is built on the same platform as all of the other machines in the Akiles Duo Mac line of binding machines. This means that it includes a wire closer. However, the wire closer is essentially useless on this machine. Wire is not available in either 4:1 or 5:1 spacing. This simply means that you will need to ignore the closer or use it with documents that are punched on another machine.
Oddly enough, the DuoMac 541 includes a wire closer that you don't need and is missing a spiral coil inserter that would be really handy. Akiles suggests that you purchase this machine with a Roll @ Coil modular coil inserter. This is an excellent idea. Without a coil inserter you will end up having to spin all of the spines onto the edge of your document by hand.
This machine can bind documents with both 4:1 pitch and 5:1 pitch spiral coil. However, you are still limited to the supplies that are available for each pitch. Four to one pitch coils are available in a huge variety of sizes and colors. However, five to one pitch coils are only available in sizes up to 25mm. Five to one pitch coils also tend to be slightly more expensive and a little bit harder to find than their four to one pitch counterparts.
Although this machine is extremely well built, it is still a manual binding machine. Organizations who need to bind large numbers of documents or extremely large documents will most likely find the manual nature of this machine is fairly tedious. As a general rule, the DuoMac 541 is a good fit for companies that need to bind up to fifty documents per week. Companies that bind more than this may want to investigate a larger electric binding system.

Recommendation:

The Duomac 541 is an excellent choice for a company who wants the flexibility to choose between four to one and five to one pitch spiral coil binding. No other desktop machine offers this flexibility.
Like the entire line of Akiles equipment this machine is built with precision components and is known for its quality and durability.
However, users who do decide to purchase this machine should really consider buying a coil inserter to increase productivity in assembling documents.

No issues, a little squaky imo but does a good job at punching holes and the wite binding feels very nice

Love the machine I purchased! The only tiny complaint is that I didn't receive a shipping notice with tracking. I had to contact the company, but they sent it by email in just a few minutes. I would buy from this company again.

Works great! Thanks!

Great machine/ Great Company

I’m so glad I found this machine!! It punches through my chipboard covers to make my journals. It seems very durable and well made. I Know it seems like a lot of money but, it’s well worth it. I’ve tried the other machines that are cheaper on Amazon and they just don’t do the job like this one does. You won’t be disappointed.

Heavy Duty Machine

I have not had much time to play around with it yet, but it is built like a tank and seems to be a very solid machine that is pretty easy to use. I have no experience with coil binding, yet my first attempt went really well. I didn't realize I needed to order the coil crimper separately, so with my trial run I used a pair of needle nose pliers and managed okay - promptly ordered the crimpers though and a couple larger sized coils. I believe this will provide much more functional binding for us in comparison to the comb binding that we were using.
