Akiles DuoMac C21 Plastic Comb and 2:1 Wire Binding Machine

Name: Akiles DuoMac C21 Plastic Comb and 2:1 Wire Binding Machine
Brand: Akiles
SKU: AKDUOMACC21
Rating: 4.78 (82 reviews)

$849.00

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# AKDUOMACC21

Manual punch for up to 20 sheets* at a time (comb & 2:1 rectangular wire holes)
Integrated wire closer & comb opener
Heavy-duty, perfect for print shops, schools, and large offices
14" punching length with open throat & disengageable pins

Product Description

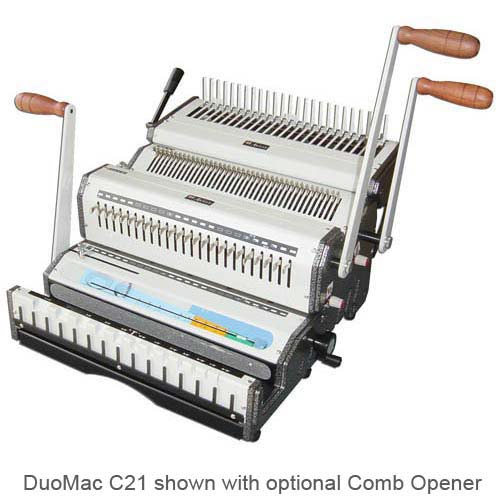

With the Akiles DuoMac C21 you can bind documents with both Plastic Combs and 2:1 Pitch Twin Loop Wire. The DuoMac C21 is the only combination machine of its kind. The unique design of the C21 includes a wire closer (for use with 2:1 pitch wire), a plastic comb opener and the ability to punch both a 19 hole pattern for plastic comb binding and a 21 hole 2:1 pitch hole pattern for Twin Loop Wire Binding. Normally, you would have to use two different binding machines to do the same tasks as the DuoMac C21 allowing you to save space, time and money.

Product Details

Actual Machine Dimensions (L x W x H): 27" x 16-1/2" x 19-1/2"

Shipping Length:19"

Shipping Width:21"

Shipping Height:13"

Shipping Weight:65 Lbs.

Compatible Supplies: Binding Combs
2:1 Twin-Loop Wire

Specifications

With two independent punching die sets, this versatile & easy to use combo binder allows you to punch & bind multiple systems and or different pitches.

Easy punch handle operation: Seperate handles for punches, comb opener, and wire closer

Depth Margin Control: Provides the correct punch margin depth for each wire/comb size. Maximizes document tear resistance.

Open Punching Throat & Continuous Punching Guide: For an easy alignment & punching of longer documents.

Wire Closer Control: With continuous adjusting scale for an exact and secure closure every time

Master Selector: Determines the correct: Wire Diameter, Closing Position, Depth Margin & Wire Pitch

Wire Holder: Holds wire in place for easier inserting of sheets

Waste Drawer

Vertical Wire Closer

Side Margin Control: Provides and evenly Centered punch for all document sizes.

Die Disengagement Pins: All dies can be independently disengaged, allows punching of any size document while preventing partial side-end perforation

Heavy-Duty design by CAE (Computer-Aided Engineering) technology

Perfect for Bindery, Print Shop, Copy Center, Corporation, Advertising Agency, School, Office and more!

Comb combination is compatible with Spiral-O wire binding spines

Single punching capacity: up to 20 sheets (20lbs paper/ letter size)

Single punching length: 14" (13" for coil) - with Open Ends for longer sizes

100% disengagement dies - wire & comb

Weight: 64lbs

Manufacturer's Warranty: 1 Year Manufacturer's Warranty

Video

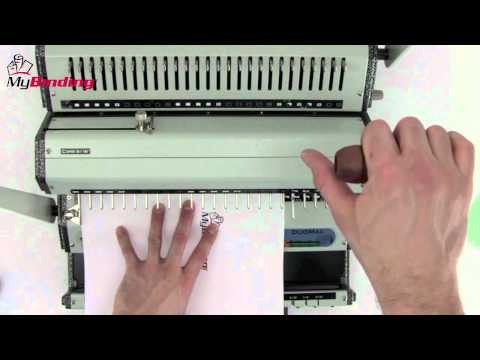

Akiles DuoMac C21 Plastic Comb Binding Machine Demo Video

Transcript :

Welcome to MyBinding video. Let's take a look at the DuoMac C21, a plastic comb and 2:1 pitch wire binding system by Akiles. Let's watch just how easy it is to bind with plastic combs. First, set your side margin control knob so all punches are consistent throughout your project. Testing with our scratch paper here, we want to make sure there are no half holes in our punches. So you can disengage any die pin you may need so that does not happen. And according to the thickness of your project, you may want to adjust the depth of margin as well. You may need a thicker margin for thicker projects. With your settings all in order, let's begin. Starting with the covers and then punching through your entire project in batches of 20 sheets of 20lb paper or less per lift. Once you've selected the comb size that you'll be using for your project, let's place it on the comb opener on the top of the machine. In comb binding, make sure the plastic teeth are facing up and the project is faced down. That way it doesn't come apart when in use. Pull the lever down over the teeth of the comb and then slide your project, threading it over all the teeth. Close the comb and remove your project. That's it, that easy on the C21. Be sure to check out our video on wire binding with the C21. For other demos, reviews, and how tos, check out MyBinding.com.

Staff Review

Akiles DuoMac C21 Plastic Comb and 2:1 Wire Binding Machine Review

Overview:

The Akiles DuoMac-C21 is a dual purpose binding system designed for finished documents with plastic combs and 2:1 pitch double loop wire.
This machine is an excellent choice for organizations that are looking for durability, versatility and reliability. It is capable of binding documents with five different styles of binding.
The C21 is ideal for companies who are trying to decide the type of binding that is best suited to represent their image. It is also great for organizations that want to use different binding styles for their internal and external communications.

Strengths / Features:

The DuoMac-C21 includes the ability to punch two different hole patterns. It can produce rectangular holes for use with plastic comb binding and a 2:1 pitch rectangular hole pattern for use with double loop wire. With these two punching patterns it is possible to use this machine with five different binding styles including: Plastic Comb Binding, GBC Zipbind, Spiral-O Wire Combs, 2:1 Pitch Twin Loop Wire, and 2.5:1 pitch spiral coil. This makes this machine one of the most versatile binding machines available anywhere.
The C21 has a high quality plastic comb opener that is designed for use with all of the different sizes of GBC style plastic comb binding supplies. It also has a highly durable wire closer that can close twin loop wire and spiral-o wires up to 1-1/4" in diameter. With these two finishing devices, the Duomac-C21 provides a wide assortment of binding options for both small and large sized documents.
The Akiles DuoMac C21 is a legal sized binding machine. Both the plastic comb and 2:1 pitch wire punch are fourteen inches in length and have fully disengageable punching pins. This means that they can easily be set up to punch any length of document up to fourteen inches. Plus, the throats for both punches are open ended which allows for punching longer documents using a two step punching process.
The DuoMac-C21 is constructed of heavy duty, high quality metal components. Like all of the Akiles binding machines it comes with a full one year warranty. However, most users will never need to use the warranty. These machines are highly durable and rarely have any problems.

Weaknesses / Limitations:

The Akiles DuoMac C21 combines a huge number of features into one system. However in adding all of these features to the machine, the system naturally grew in size. The DuoMac C21 has a fairly large footprint and is a substantial binding machine. The system has four different handles and a number of knobs. This can be somewhat intimidating for users who have never seen a binding machine before. Luckily everything is labeled fairly well and most individuals can figure things out with a little bit of effort.
Although this system is capable of binding your documents with a number of different binding styles, it is not a replacement for an interchangeable die modular binding system. This machine is designed for light to moderate binding use. Organizations that need to bind more than about fifty documents per week will probably find the manual nature of this machine tedious. In fact, high volume users should really consider an electric punch with standalone finishing equipment.
The DuoMac C21 is capable of binding documents with five different binding styles. However each binding style has its own limitations. Depending on the style of binding that you pick the price, available colors and selection of sizes will vary. This is something that you will want to investigate before deciding on a particular binding style.

Recommendation:

The Akiles DuoMac-C21 is a great choice for companies that are looking to bind documents with multiple binding styles. It offers the ability to bind documents that are both thin and thick and can help in creating professional presentations, proposals, documents and reports.
This system can be used with up to five different styles of binding. However, each style has its own strengths and weaknesses. Still, it provides the versatility that your organization needs to create a wide variety of bound materials for internal and external use.
The DuoMac C21 is constructed of high quality metal components that help to ensure its reliability and durability.
However, this machine is still a manual binding system and is not ideal for high volume production applications. Print shops and binderies that produce hundreds of documents a day should look for a interchangeable die modular binding system with standalone finishing equipment.

If you need more information or would like to purchase the Akiles DuoMac C21 Plastic Comb and 2:1 Wire Binding Machine or any of the other Combination Binding Machines that we carry please feel to visit our site or contact us with your questions.

This review was written by Jeff McRitchie who is the director of marketing for Mybinding.com. Jeff has written more than three hundred articles and more than two hundred reviews on Binding Machines, Binding Supplies, Report Covers, 3-Ring Binders, Index Tabs, Laminators, Laminating Supplies, Paper Shredders and Paper Handling Equipment.

Love the machine I purchased! The only tiny complaint is that I didn't receive a shipping notice with tracking. I had to contact the company, but they sent it by email in just a few minutes. I would buy from this company again.

Works great! Thanks!

Great machine/ Great Company

I’m so glad I found this machine!! It punches through my chipboard covers to make my journals. It seems very durable and well made. I Know it seems like a lot of money but, it’s well worth it. I’ve tried the other machines that are cheaper on Amazon and they just don’t do the job like this one does. You won’t be disappointed.

Heavy Duty Machine

I have not had much time to play around with it yet, but it is built like a tank and seems to be a very solid machine that is pretty easy to use. I have no experience with coil binding, yet my first attempt went really well. I didn't realize I needed to order the coil crimper separately, so with my trial run I used a pair of needle nose pliers and managed okay - promptly ordered the crimpers though and a couple larger sized coils. I believe this will provide much more functional binding for us in comparison to the comb binding that we were using.

Steve C

Excellent choice for a small office or occasional user
