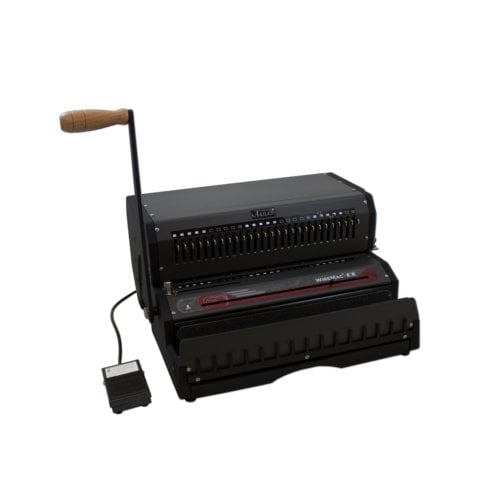

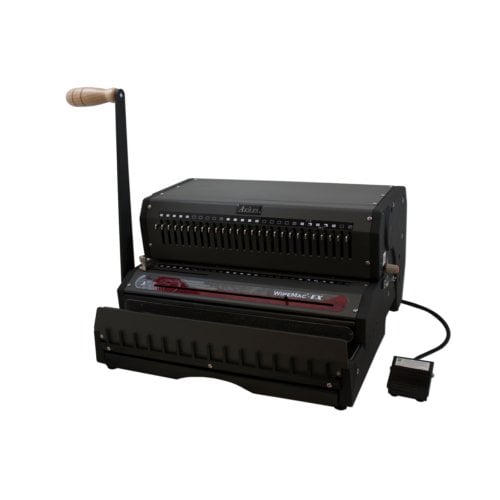

Akiles WireMac-EX 2:1 Pitch Electric Wire Binding Machine w/ Wire Closer

Name: Akiles WireMac-EX 2:1 Pitch Electric Wire Binding Machine w/ Wire Closer
Brand: Akiles
SKU: WireMac-EX21
Rating: 4.81 (68 reviews)

Akiles WireMac-EX 2:1 electric wire binding machine with wire closer

$1,229.00

Quantity

Need Shopping Advice?
Call - (800)944-4573

Item# WIREMAC-EX21

Robust all-metal construction ensures long-lasting durability in busy office environments.
Side margin control for perfectly centered punches, accommodating various document sizes.
Convenient waste drawer for easy cleanup, keeping your workspace tidy.
Reverse function to quickly clear jams, minimizing downtime during high-volume tasks.

Product Description

This Akiles WireMac-EX 2:1 Pitch Electric Wire Binding Machine is a heavy duty electric wire punch and wire closer. With its heavy-duty punch motor, built-in wire closer and complete system of functions, this Akiles WireMac-EX makes wire binding fast, easy, convenient and professional. This heavy duty all-metal constructed Akiles WireMac-EX can punch upto 25 sheets of 20lb paper , has fully disengageable punch pins, and has a 14" punch throat with open ends for longer documents and continuous punch guide. This Akiles WireMac-EX 2:1 Pitch Electric Wire Binding Machine is backed by a 1-Year Manufacturer's Warranty.

Product Details

Reverse Function. Manually reverse motor in case of jams. (Allen wrench needed).

Side Margin Control. Provides an evenly centered punch for all document sizes.

Wire Holder.

Waste Drawer.

Wire Closer. Adjusts to close 3/16" to 1-1/4" Wires

Foot Pedal Operation. Allows the free use of both hands, granting the operator complete control of punching.

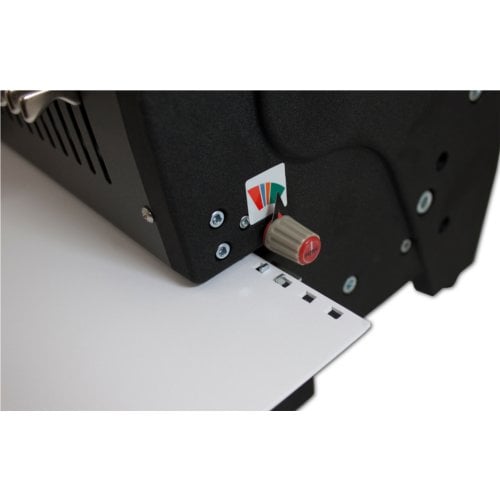

Open Punching Throat & Continuous Punching Guide. For an easy alignment & punching of longer documents.

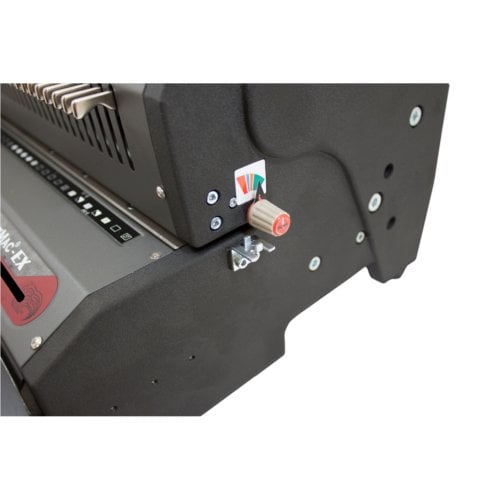

Depth Margin Control. Provides the correct punch margin depth for multiple book sizes.

Die Disengagement Pins. For a clean and complete punch with different paper sizes.

Specifications

Punching Operation: Electric (Foot Pedal)

Punching Capacity: Up to 25 sheets (20 lbs. paper)

Hole Size: Rectangle (4 x 5.5 mm)

Pitch: 2:1

Disengageable Dies: All 27

Punching Length: 14" with open throat for longer documents

Binding Capacity: 3/16" to 1-1/4"

Weight & Dimensions: 55 lbs./ 19" W x 16" D x 16" H

Manufacturer's Warranty: 1 Year

Compatible Supplies: 2:1 Pitch Twin Loop Wire

Spiral / Binding101 Part Number: 04AKWIREMEX21

Compare to Similar Wire Binding Machines

Model Name

Model

Punching Operation

Pitch

Punching Length

Disengaging Dies

Hole Punch

Binding Thickness

Single Punching Capacity

Closer Selector

Closing Mechanism

Master Selector

Metal Wire Snatch

Wire Diameter Scale

Side Margins Control

Punching Margin Control

Weight / Volume
Akiles WireMac 2:1

Manual

2:1

14" (27 dies)

All 27

Rectangular (0.157" x 0.217")

From 3/16" to 1-1/4"

Up to 20 sheets (20 lbs)

Included

Vertical

Included

Included

Included

Included

Included

45 lbs / 2.55 CbFt
Akiles WireMac 3:1

Manual

3:1 / 2:1

14" (40 dies) / 14" (27 dies)

All 40 / All 27

Square 0.157"x0.157"
/ Rectangular
0.157" x 0.217"

From 3/16" to 9/16" / From 5/8" to 1-1/4"

Up to 20 sheets (20 lbs)

Included

Vertical

Included

Included

Included

Included

Included

45 lbs / 2.55 CbFt
Akiles WireMac-Duo Combo

Manual

3:1, 3 holes per 1" / 2:1, 2 holes per 1"

14" with open throats for longer documents.

40 dies / 27 dies

Square 4mm x 4mm / Rectangular 4mm x 5.5mm

3/16" - 9/16" / 5/8 - 1-1/4"

20 sheets of 20 lbs bond paper

Included

Vertical

Included

Included

Included

Included

Included

53 Lbs & 2.22 CbFt
Akiles WireMac-EX 2:1

Electric (Foot Pedal)

2:1

14" with open throat for longer documents

All 27

Rectangle (4 x 5.5 mm)

3/16" to 1-1/4"

Up to 25 sheets (20 lbs. paper)

Included

Vertical

Included

Included

Included

Included

Included

55 lbs./ 19" W x 16" D x 16" H
Akiles WireMac-EX 3:1

Electric (Foot Pedal)

3:1

14" with open throat for longer documents

All 40

Square (4mm x 4mm)

3/16" to 9/16"

Up to 25 sheets (20 lbs. paper)

Included

Vertical

Included

Included

Included

Included

Included

55 lbs./ 19" W x 16" D x 16" H
Akiles WireMac E 2:1

Electric (Foot Pedal)

2:1

14" with open throat for longer documents

All 53 dies

Rectangular 4mm x 5.5mm

1/4" - 1-1/4"

Up to 20 sheets (20 lbs paper)

Included

Vertical

Included

Included

Included

Included

Included

72 lbs & 2.92 CbFt
Akiles WireMac E 3:1

Electric (Foot Pedal)

3:1

14" with open throat for longer documents

All 40

Square 4mm x 4mm

3/16" - 9/16"

Up to 20 sheets (20 lbs paper)

Included

Vertical

Included

Included

Included

Included

Included

72 lbs & 2.92 CbFt

Video

Akiles Wiremac-EX Demo Video

Transcript :

Introducing the Akiles Wiremac-EX, a heavy duty electric wire binding machine with a built-in wire closer. If youš™re looking for an electric wire punching machine, look no further. Powered by a heavy duty motor and heat-treated steel dies, the Akiles Wiremac-EX is the machine you can rely on to get the job done. The Wiremac-EX is available in a 3:1 pitch which punches three holes per inch or a 2:1 pitch which punches two holes per inch. It punches up to 25 sheets at a time with fully disengageable dies. The Wiremac-EX has a 14š single punching length with open ends and a continuous punch guide to accommodate oversized documents. Depth margin knob allows you to control the distance of the holes from the edge of the paper. The waste drawer holds the punched chips for easy waste removal. Letš™s bind a project. First you have your front and back covers and your document. Use a sample sheet of paper to align the side margin and disengage the end die to avoid a partial hole at the end of the paper. Set the wire selector to the appropriate wire size. Hang your wire on the wire hanger with the narrow loops towards you. Face your back cover on top of your top cover punch and insert the covers and continue to punch and insert your documents. Once the pages are inserted, lower the book with the wire facing down on the wire closer then pull the handle to close the wire. Turn the back page to hide the wire seal and you now have a perfect wire bound book. The Akiles Wiremac-EX comes with a 1 year warranty. In case your machine needs repair, weš™ll take care of parts and labor. With style, strength, and function, the Akiles Wiremac-EX is the ideal all-in-one solution for your next wire binding project.

Broke down after 2 weeks of using.

Love the machine I purchased! The only tiny complaint is that I didn't receive a shipping notice with tracking. I had to contact the company, but they sent it by email in just a few minutes. I would buy from this company again.

Works great! Thanks!

Great machine/ Great Company

I’m so glad I found this machine!! It punches through my chipboard covers to make my journals. It seems very durable and well made. I Know it seems like a lot of money but, it’s well worth it. I’ve tried the other machines that are cheaper on Amazon and they just don’t do the job like this one does. You won’t be disappointed.

Heavy Duty Machine

I have not had much time to play around with it yet, but it is built like a tank and seems to be a very solid machine that is pretty easy to use. I have no experience with coil binding, yet my first attempt went really well. I didn't realize I needed to order the coil crimper separately, so with my trial run I used a pair of needle nose pliers and managed okay - promptly ordered the crimpers though and a couple larger sized coils. I believe this will provide much more functional binding for us in comparison to the comb binding that we were using.
