Product Description

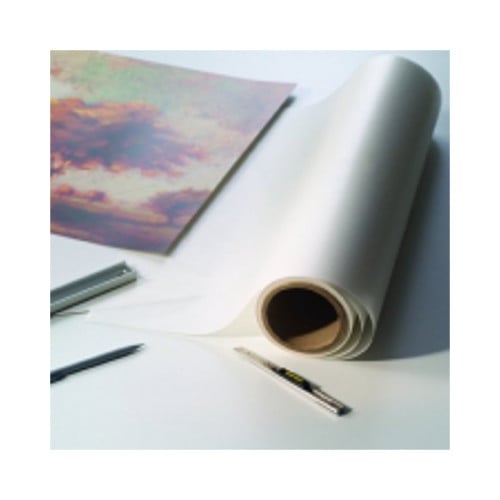

This Artshield Matte UV 51" x 300' Overlaminating Film is a 4mil Heatset PVC (vinyl) soft non-glare matte laminating film that provides excellent UV protection. The Artshield Matte UV is perfect for plaque mounting and for situations where a non-glare finish is required or specific lighting conditions cannot be controlled. Also, this 51" x 300' Artshield Matte UV is ideal for images gallery displays that will be viewed under direct lighting from many different angles.
Product Details
- Finish: Matte PVC
- Film Length: 300'
- Film Width: 51"
- Film Thickness: 4 mil
- Base Film:: 3.0 mil (75 micron) PVC (vinyl )
- Ratio Film/Adhesive: 3:1
- UV Protection Factor: Film contains UV stabilizers, which prevent film degradation and provide UV protection to the underlying image
- Outdoor Durability: 3 years
- Adhesive: 1.0 mil (25 micron) solvent acrylic
- Heat Resistance Range: 70°C-95°C (158°F-203°F)
- Peel Strength (20 min,FTM1): 18 N/25mm
- Release Liner: 1 Side PE Coated Bleached Kraft Grey Grid Paper (Moisture Stable)
- Initial Tack: Low
- Application Temperature: 185°F-210°F (85°C-99°C)
- Application Speed: 1'- 6' (0.3m - 1.75m) per minute
- Application: Picture Framing/Photography
- Part Number: MT51300PP
Technical Data
Artshield Matte is a 3 mil (75µ) UV stabilized, pre-perforated clear PVC laminating film with a matte finish, coated on one side with a heat activated solvent acrylic adhesive that is protected by a moisture stable bleached Kraft gridded release paper coated on one side with siliconized PE.Typical Applications
- Ideal for plaque finishing.
Product Structure
| Film | Matte Perforated PVC |
|---|---|
| Adhesive | Solvent Acrylic (Heat Activated) |
| Release Liner | 1 Side PE Coated Bleached Kraft Grid Paper (Moisture Stable) |
Physical Characteristics
| Film Thickness | 3 mil (75µ) |
|---|---|
| Adhesive Layer | 1 mil (25µ) |
| Film/Adhesive Ratio | 3:1 |
| UV Protection Factor | Film contains UV stabilizers, which prevent film degradation and provide UV protection to the underlying image |
| Outdoor Durability | Not Applicable |
| Service Temperature Range | -4°F to 203°F (-20°C to 95°C) |
| Peel Strength (20 min, FTM1) | 18 N/25mm |
| Shelf Life | Use within 1 year after opening original box |
| Storage Conditions | 59°F to 72°F (15°C to 22°C); 50 - 55% Relative Humidity |
Process Settings
| Equipment Type | Temperature | Dwell Time |
|---|---|---|
| Roller Laminator | Not recommended | |
| Press | 185°F to 210°F (85°C to 99°C) | 2-8 minutes |
