Product Description

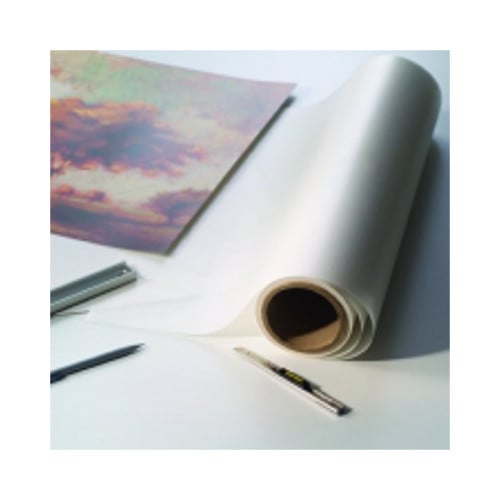

This Artshield Mattex UV 3mil 51" x 300' Overlaminating Film is a 3mil Heatset PVC (vinyl) semi-matte laminating film that provides excellent UV protection. The Artshield Mattex UV is perfect for laminating canvas mounted photographs. When provided with adequate dwell time, temperature and pressure, this 51" x 300' Artshield Mattex laminating film will take on the texture of the canvas for a beautiful textured finish.
Product Details
- Finish: Satin-Matte PVC
- Film Length: 300'
- Film Width: 51"
- Film Thickness: 3 mil
- Base Film:: 2.0 mil (50 micron) PVC (vinyl)
- Ratio Film/Adhesive: 2:1
- UV Protection Factor: Film contains UV stabilizers, which prevent film degradation and provide UV protection to the underlying image
- Outdoor Durability: 3 years
- Adhesive: 1.0 mil (25 micron) solvent acrylic
- Heat Resistance Range: 70°C-95°C (158°F-203°F)
- Peel Strength (20 min,FTM1): 18 N/25mm
- Release Liner: 1 Side PE Coated Bleached Kraft Grey Grid Paper (Moisture Stable)
- Initial Tack: Low
- Application Temperature: 185°F-210°F (85°C-99°C)
- Dwell Time: 2-6 minutes
- Application: Fine Art Prints, Picture Framing/Photography
- Part Number: MX51300PP
Technical Data
Artshield Mattex is a 2 mil (50µ) UV stabilized, pre-perforated clear PVC laminating film with a satin matte finish, coated on one side with a heat activated solvent acrylic adhesive that is protected by a moisture stable bleached Kraft gridded release paper coated on one side with siliconized PE.Typical Applications
- The film’s soft, non-refl ective fi nish makes it ideal for direct graphics.
- When used on inkjet images for tradeshows and POS displays, it will cut glare without sacrifi cing color detail.
- Can be used to laminate inkjet output printed on canvas.
- As the fi lm is thin and pliable, it conforms well to canvas weave, maintaining its texture.
Product Structure
| Film | Satin Matte Perforated PVC |
|---|---|
| Adhesive | Solvent Acrylic (Heat Activated) |
| Release Liner | 1 Side PE Coated Bleached Kraft Grid Paper (Moisture Stable) |
Physical Characteristics
| Film Thickness | 2 mil (50µ) |
|---|---|
| Adhesive Layer | 1 mil (25µ) |
| Film/Adhesive Ratio | 2:1 |
| UV Protection Factor | Film contains UV stabilizers, which prevent film degradation and provide UV protection to the underlying image |
| Outdoor Durability | Not Applicable |
| Service Temperature Range | -4°F to 203°F (-20°C to 95°C) |
| Peel Strength (20 min, FTM1) | 18 N/25mm |
| Shelf Life | Use within 1 year after opening original box |
| Storage Conditions | 59°F to 72°F (15°C to 22°C); 50 - 55% Relative Humidity |
Process Settings
| Equipment Type | Temperature | Dwell Time |
|---|---|---|
| Roller Laminator | Not recommended | |
| Press | 185°F to 210°F (85°C to 99°C) | 2-6 minutes |
