Product Description

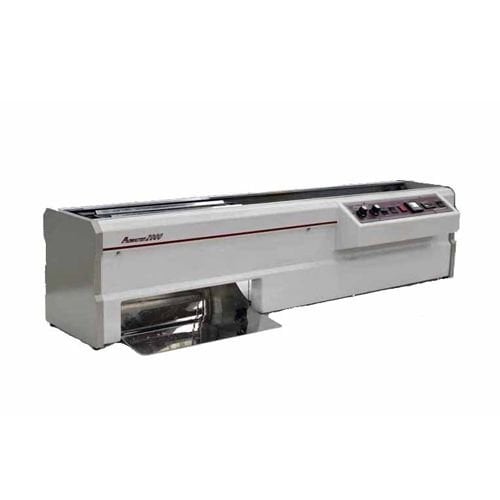

This Brackett Padmaster 2000 Tabletop Automated Padding Machine lets you make pads three times faster than hand padding at a speed of 600 pads per hour. With its user-firendly feature, it allows you to quickly become a proficient pad maker. Just drop loose paper sheets into the jaws and push a button, then the Padmaster 2000 does the rest of the work. All in less than 6 seconds, the Padmaster 2000 clamps the sheets, carries them across the hot melt glue roller, across the water-cooled roller, to the delivery chute where the clamp jaws open and release your finished pad down the delivery chute. If you are in a hurry and want to produce pads right on your desktop in an instant, then the Padmaster 2000 will do the magic for you.
Product Details
- Power Consumption: 8 amps @ 11 5 vac 60Hz; 4 amps @ 220 vac 50 Hz
- Glue Pot Capacity: 225OZ (850 ml) with easy drain system.
- Cycles: 720 per hour standard. Vaiable speed control for use in thicker glue applications.

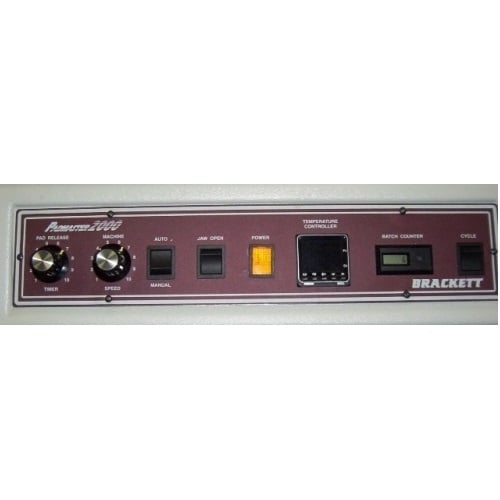

- Adhesive Temperature: Adjustable controller with LED display.
- Warm-Up Time: 18 minutes from cold start. Automatic over-temperature protection.
- Operating Modes: Single push button (or optional foot switch stars automatic cycle. May be jogged forward or reverse is manual mode.
- Maximum Work Dimensions: 3 inches thick (76mm) x inches long (432 mm) x 18 inches high (457 mm).
- Machine Dimension: 56 inches long (142 cm) x 13 inches high (33 cm) x 15 ¼ inches deep (38.7) 103 lbs. net wt.( 47 kg)
- Addition Features: Water roller system for rapid adhesive cooling. Accessible fuses protect major components. Controls: Plug-in type relay board for easy maintenance. For thick pads, variable control can delay delivery for up to ten seconds for longer glue curing.
Specifications
- Features:
- Simple and Speedy Automatic Tabletop Padder.
- Frees you from messy, time consuming hand padding.
- Transforms loose sheets into instant pads (or strips of pads).
- Handles pads-to-be from two sheets thin up to three inches thick and 17 inches long.
- Clamping and adjusting for thickness is automatic.
- Materials can be stacked on a built-in, removable worktable.
- Produces 12 ready to-use pads (or strips of pads) every minute or 720 pad/units an hour.
- Warms up fast. Just 18 minutes from a cold start.
- Adjustable temperature controller and LED display.
- User friendly. You can learn to operate the PadMaster 2000 with just a few minutes training.
- Included Standard Handy Accessories:
- Stainless Steel Delivery Chute.
- Work supports for handling pads of different heights – Standard, Medium, Tall.
- Workable. Attaches under PadMaster and extends outward for stacking sheets to be padded.
- Glue pot lid with removable handle.
- Electrical cord with plug, 3-prong, grounding type for power receptacle.
- 3 Drain pans
- 2lb Hot melt adhesive
- 4oz Bottle Chill Set Wetting Solution
- Optional Accessories:
- Foot Switch. Convenient plug-in cycle switch for floor. Potable.
- Special Padding Glue. To assure high product quality Brackett hot melt glue had been formulated for optimum “padding balance” –quick set-up, adequate hold and sheet release. Other adhesive formula may result in inferior pads. Inquire about formula for specially pads.
- Pad Catcher (Stacker). Adjustable unit receives finished pads from PadMaster 2000 Delivery Chute. Pads stack automatically.
- Padding Center Table. Rigidly crossbraced steel table with laminated gray plastic top. Resists mars, burns and stains. Adjustable height from 29 ¼ in. (11.5 cm) to 34 ¼ in. (135 cm). Electrical knockouts front and back. Lower shelf and drawer. Dimensions: W-60 in (152 cm) D-24 in (61 cm) Wt. 83 lbs. (37 kg).
- Multiple pad separators (Set of 3). Pad dividers allow adhesive application of up to four rows of pads or pad strips with one cycling of carriage. Maximum thickness of pads and separators: Three inches (76mm).
- Spare Parts Kit. A kit of selected spare parts which may eventually wear over time and may affect machin performance with heavy use. Having replacement parts on hand can reduce downtime. Electrical System. 220v/1P/50Hz available upon request at extra charge.
How the Padmaster 2000 Works?
The PadMaster 2000 transforms loose sheets into instant pads (or strips of pads). To make pads, you drop in paper sheets and push a button. With convenient, optional “separator” plates, you can even process up to four rows of pad strips at a time. After simply loading, it’s all automatic. Once you push the cycle button, PadMaster 2000 clamps the sheets, self-adjusts to the proper thickness, moves them over a precision hot melt glue applicator and passes through a rapid cooling system. In just three seconds, your pad (or pas strip) is done---automatically released by the PadMaster 2000 --- and ready for delivery to a waiting customer. Upon completion, the carriage returns to its original position, ready once again for loading.Video
Brackett PadMaster 2000 Introduction Video
