Product Description

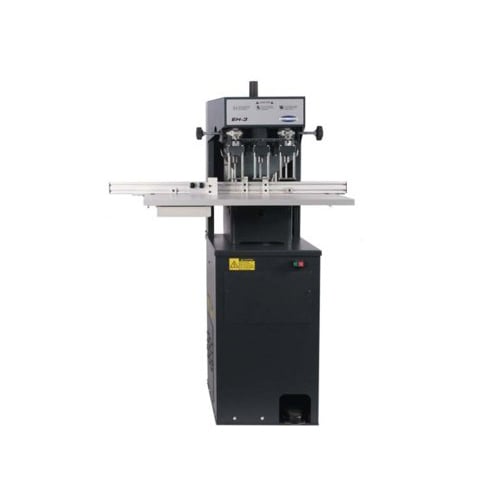

This Challenge EH-3C Paper Drill is featured with auto-trip side guide for specialty hole patterns, powerful hydraulic powered drilling, 2-1/2" drilling capacity,and robust design. This multi-spindle paper drill can drill up to three holes in a single stroke, and has a fast and easy drill head adjustments. Other great features include: adjustable backgauge, automatic drill head return, adjustable outside heads, easy depth adjustment, foot pedal activation, and protective safety shield. If you are looking for a safe, fast and accurate 3-hole drilling, look no further than the Challenge EH-3C Paper Drill w/ Auto-Trip Side Guide.
Product Details
- Number of Drill Heads: 3
- Drill Sizes Available (2" capacity): 1/8" to 1/2" / 3 to 13 mm
- Drill Sizes Available (2-1/2" capacity): 1/4" to 1/2" / 6 to 13 mm
- Range Between Drills: 2-3/4" to 4-1/2" / 7 - 11 cm
- Range Between Outside Drills: 5-1/2" to 9" / 14 - 23 cm
- Maximum Drilling Capacity: 2-1/2" / 63 mm
- Strokes per Minute (adjustable): Up to 18
- Adjustable Ranges:
- Left drill to side guide: 0 to 14-1/2"/ 0-36.2 cm
- Drill to backgauge (auto-trip): 0 to 4-1/2"/ 0-11.4 cm
- Vertical Adjustment of Individual Heads: 1/4" / 6 mm
- Dimensions
- Table Size: 19-1/2" x 31-1/2" / 50 x 80 cm
- Table Height: 37" / 94 cm
- Overall Height: 59-1/4" / 151 cm
- Floor Space Needed: 36" x 41-1/2" / 91 x 105 cm
- Net Weight (approximate): 520 lbs / 236 kg
- Shipping Weight (approximate): 570 lbs / 259 kg
- Electrical
- 1 Phase, 60 Hz, AC. Pump: 1/2 HP. Spindle Motor: 1 HP.
- 208 Volts, 18 Amps (service size 30 Amps) or
- 230 Volts, 17 Amps (service size 30 Amps)
- UL Listed
- Warranty: 3 Year Manufacturer's Warranty
Specifications
- Powerful hydraulic operation
- 2-1/2"/ 6.4 cm drilling capacity
- Fast and easy head adjustments
- Flexible backgauge adjustments
- Automatic drill return
- Auto-trip side guide for for specialty hole patterns
- Center head stationary
- Outside heads adjustable
- Drills one, two, or three holes in a single stroke
- Single control sets depth of stroke
Includes:
- Three 2-1/2"/ 6.4 cm capacity 1/4" hollow drill bits
- 2-1/2"/ 6.4 cm drilling capacity
- Three 2-1/2"/ 6.4 cm capacity 5/16" hollow drill bits
- Twelve drilling blocks
- Hydraulic foot pedal
- Hollow drill hand sharpener/chip removal tool
- Tool kit
