Product Description

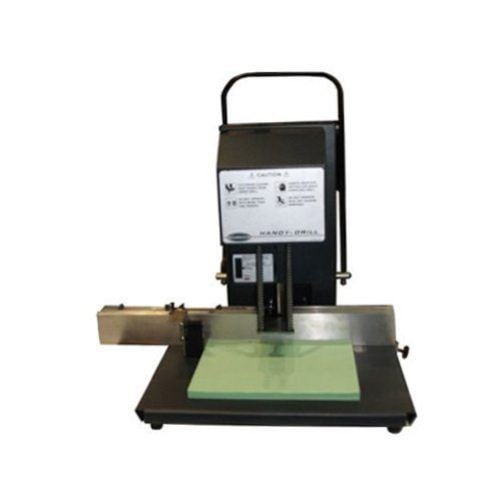

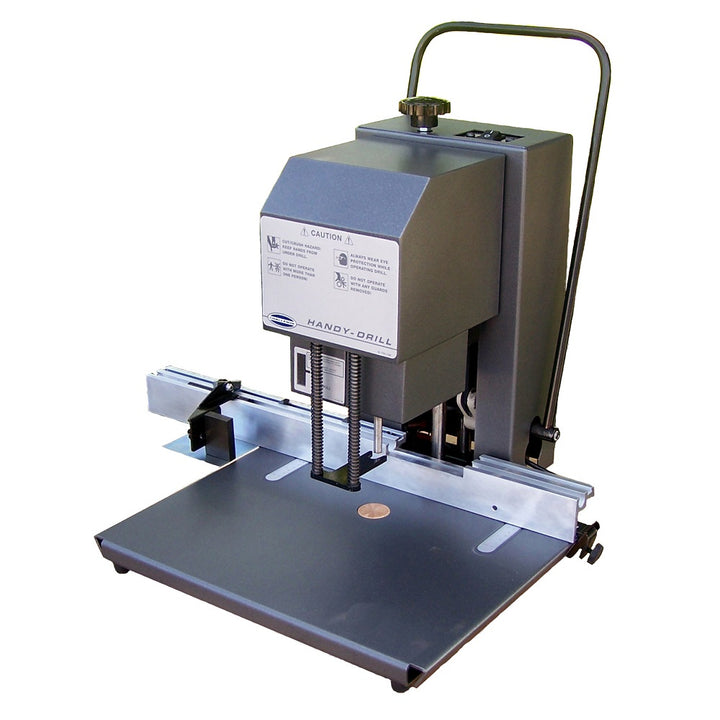

The Challenge Handy-Drill is a cost effective single spindle paper drill designed for use in small and medium sized print shops, binderies and offices. This paper drill offers a 2-1/2" lift capacity and can be used with four different bit sizes (1/4", 5/16", 3/8" and 1/2"). The Handy drill is easy to operate; All you need to do is pull down the handle and the spindle motor automatically turns on. Plus, the Handy-Drill even comes with an adjustable backguage to allow you to dill multiple hole patterns. Check out other details and specifications below.
Product Details
- 2-1/2" lift capacity in 4 different drill bit sizes (1/4", 5/16", 3/8", 1/2"). Machine can be converted to a 2" maximum lift capacity for a wider range of available hole sizes (1/8" to 1/2").
- Safe to operate - Spindle motor automatically turns on when the pull-down lever is moved and automatically switches off when the lever returns to the up position.

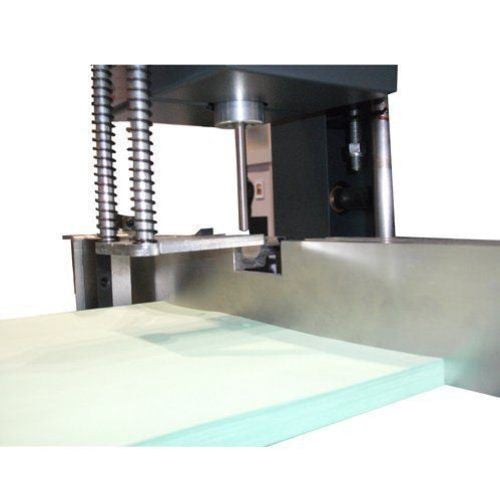

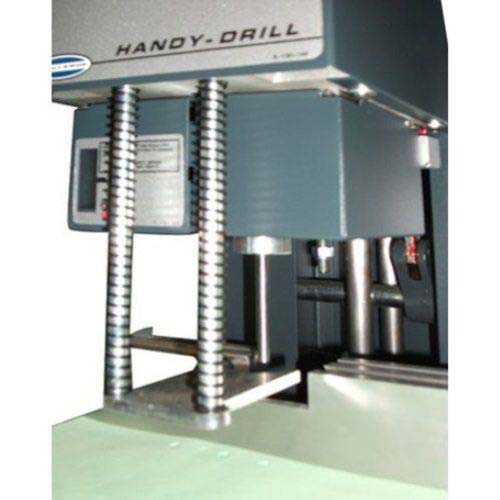

- Conveniently located chip collector cups - Located around the spindle, they include a sight gauge to signify when the cups are full and need to be emptied. The cups also serve as safety covers with interlock switches. When removed to change the drill bit or to empty the paper chips, power to the motor is locked out until the cups are replaced.

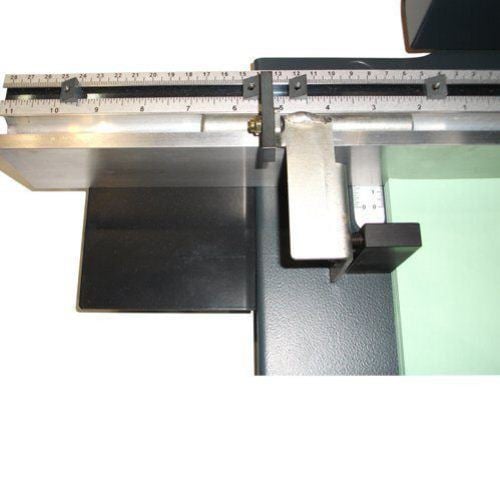

- Adjustable backgauge stops - The backgauge includes 4 adjustable stops for drilling multiple hole pattern jobs. Just flip the switch and move your pile to the next setting.
- Adjustable Margins: Thumb screws easily lock the backguage to the drill table. To adjust the margins, simply loosen the screws and line-up the gauge with the dual scales located on the drill table. Hole locations can be drilled up to 2.5" margin from the edge of the paper.
- Included: (1) 1/4"/6.4 mm & (1) 5/16"/7.9 mm 2-1/2" hollow drill bits, (2) 1-1/2"/38 mm wood drilling blocks, (1) trip backgauge, (1) manual & (1) tool kit
Specifications
- Drill Head Operation: Hand Lever
- Drill Bit Sizes Available:
(2" capacity): 13 sizes from 1/8" to 1/2" / 3 to 12.7 mm
(2-1/2" capacity): 1/4, 5/16, 3/8, 1/2" / 6.4, 7.9, 9.5, 12.7mm - Lift Capacity: 2-1/2" / 6.4cm
- Minimum Distance Between Holes: 3/8" center to center / 9.5 mm
- Maximum Distance Drill To Side Guide: 9-7/8" / 25.1 cm
- Maximum Margin Hole Center To Sheet Edge: 2-1/2" / 6.4 cm
- Side Guide Trip: Manual
- Table Space: 18" x 19" / 46 x 48 cm
- Overall Height: 22-3/8" / 56.8 cm
- Overall Width: 24" / 61 cm
- Overall Length: 21.2" / 53.9 cm
- Manufacturer's Warranty: 1-Year Parts Manufacturer's Warranty (Supplies Excluded)
- Net Weight: 70 lbs / 32 kg
- Shipping Weight: 90 lbs / 41 kg
