Product Description

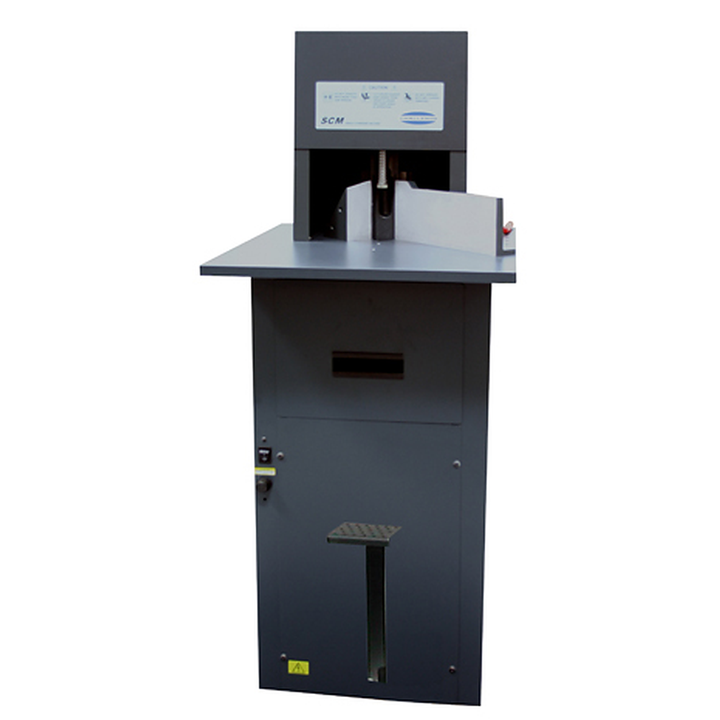

This Challenge heavy duty single cornering machine is ideal for high volume round cornering applications that demand speed, productivity and versatility. Challenge Makes their single cornering machines in two varieties: manual and hydraulic. Whether using the hydraulic or manual model, you will increase your production with the large lift capacity. Challenge cornering machines minimize operator fatigue and provide the power needed for cornering difficult jobs of index and coated stock. Give your jobs that added professional quality with our dependably accurate cuts with each cornering stroke of our single cornering machines.
Product Details
- 6 sizes of cornering knives
- Handles any size sheet
- 2"/ 5 cm lift capacity
- Manual operation
- Precise cutting action
- Gravity chip disposal
Specifications
- Maximum Lift Height: 2"/ 5 cm
- Range of Lift Widths: Open

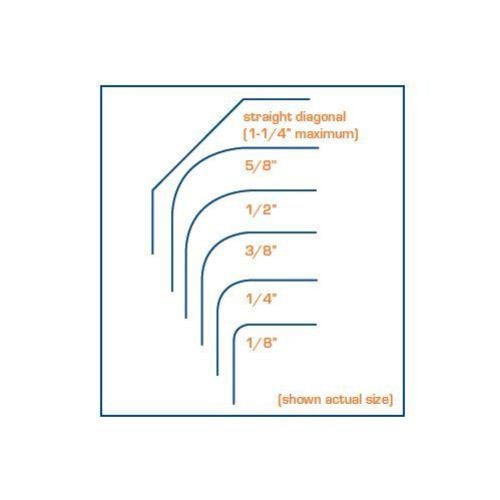

- Corner Sizes Handled: 1/8", 1/4", 3/8", 1/2", 5/8", and straight*
- Table Depth: 24"/ 61 cm
- Table Width: 20-1/4"/ 51.5 cm
- Table Height: 36"/ 91 cm
- Height Overall: 52"/ 132 cm
- Compatible Supplies & Accessories: Challenge SCM Manual Corner Rounder Dies & Accessories
- Floor Space Required: 24"x 20-1/4"/ 61 x 51.5 cm
- Actual Machine Dimensions: 24"x 20"x 52"
- Actual Machine Weight: 190lbs
- Shipping Length:
- Shipping Width: 41"
- Shipping Height: 60"
- Shipping Weight: 265lbs
- Manufacturer's Warranty: 1-Year Parts Manufacturer's Warranty (Supplies Excluded)
Compare to Similar Challenge Corner Rounders
-
Model NameModelMaximum Lift HeightRange of Lift WidthsCorner Sizes HandledTable DepthTable WidthTable HeightHeight OverallFloor Space RequiredNet WeightShipping WeightStandard MotorService sizeWarranty
-
Challenge Hydraulic Single Cornering Machine
4"/ 10 cmOpen1/8", 1/4", 3/8", 1/2", 5/8", and straight*24"/ 61 cm20-1/4"/ 51.5 cm36"/ 91 cm52"/ 132 cm24"x 20-1/4"/ 61 x 51.5 cm190 lbs/ 86 kg265 lbs/ 120 kg1/2 HP., 60 Hz, AC, 115 volts/ 13.5 Amps20 Amps.1-Year Parts Warranty (Supplies Excluded) -
Challenge Manual Single Cornering Machine2"/ 5 cmOpen1/8", 1/4", 3/8", 1/2", 5/8", and straight*24"/ 61 cm20-1/4"/ 51.5 cm36"/ 91 cm52"/ 132 cm24"x 20-1/4"/ 61 x 51.5 cm145 lbs/ 66 kg220 lbs/ 100 kgN/AN/A1-Year Parts Warranty (Supplies Excluded)
