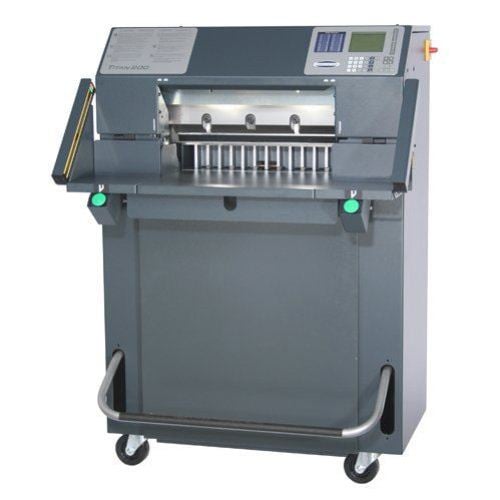

Challenge Titan 200 20" Hydraulic Programmable Cutter with Light Beams

Name: Challenge Titan 200 20" Hydraulic Programmable Cutter with Light Beams
Brand: Challenge
SKU: CH-TITAN200L-GRP

Product Description

The Challenge 200 hydraulic programmable paper cutter is one of the highest quality 20 inch fully automatic paper cutters available anywhere. This model includes uses a light beam safety mechanism to preven the cutter from operating if a hand or body part is in the cutting area. This wonderful piece of equipment offers a user friendly menu-driven LCD screen and fully programmable backgauge control with 99 channels of memory. It allows you to enter cutting dimensions in fraction, decimal or in metric measurements. It also has a precise light line cut position indicator, table slot closure device as well as hydraulic cutting and clamping for precise cutting every time. The titan 200 also includes a wide variety of safety features making it one of the safest programmable paper cutters available on the market.

Product Details

Key Benefits/Features:
- User-friendly menu-driven LCD screen, fully programmable backgauge control with 99 channels, 9,801 total cut memory
- Variable mode data entry (fraction, decimal, metric)
- Automatic fraction to decimal calculation
- Electronic Clamp Pressure Control - (programmable per cut with TC option)
- Maintenance free red LED cut line light
- Table slot closure device
- Hydraulic cutting & clamping - motor runs only during cutting cycle
- Rugged steel & cast iron construction
- Lockable heavy duty casters for portability
- Top of machine offers large 14.5" x 36"/36.8 cm x 91 cm) work surface
- 1-year Manufacturer's Warranty
Safety/Features:
- UL/cUL listed and conforms to CE and ANSI B65.3 safety specifications
- Two-hand push button control of cutting cycle with timed, non-repeat device
- Cutting area protection - choice of light beam safety curtain or Plexiglas shield
- Independent mechanical foot pedal clamping
- Fully enclosed sheet metal rear table safety cover
- Optional ergo-touch cut buttons reduce operator fatigue
Included:
- (2) high speed steel knives
- (3) plastic cutting sticks
- (1) jogging aid
- (1) manual
- (1) tool kit
- (1) knife change safety holder assembly

Specifications

Cutting Width: 20”/508 mm
Clamp Opening: 3-1/4”/83 mm
Clamping Force:
- Minimum 1,250 lbs/563 daN
- Maximum 2,500 lbs/1,125 daN
Min Cut (w/out false clamp plate): 1/2”/13 mm
Min Cut (with false clamp plate: 1-7/8”/48 mm
Table:
- In Front of Knife 15-1/4“/387 mm
- Behind Knife 20”/508 mm
Table Height: 36”/914 mm
Metal side tables (light beam only): 12.2”x8.2”/310x208mm
Overall Width: 39-5/8”/1006 mm
Overall Length: 50-7/8”/1293 mm
Overall Height: 53”/1350 mm
Will pass through door:
- (assembled) 39-3/4”/1010 mm
- (side tables, light beams, & power switch out) 36-1/4”/920 mm
- (table/treadle/light beams out) 29”/737 mm
Net Weight (approx.): 800 lbs/363 kg
Shipping Weight (approx.): 980 lbs/444 kg
Electrical UL/CUL Listed & CE:
- 1 1/2 H.P., Single-Phase, AC, 60 Hz, 208/230 Volts, 12 Amps, Service size 15 Amps. Power cord included. Requires Receptacle Type: NEMA 6-15R or 6-20R.

Replacement Blades and Accessories

Product Name	Item Number
Challenge 20 Multi 2020 Titan 200 Replacement Blade	JH-31780
Challenge 20 Multi 2020 Titan 200 High Speed Steel Blade	JH-31780HSS
Premium 20" Cutting Stick for Challenge 20, Titan 200, Multicut 2020	JH-CS4075
Standard 20" Cutting Stick for Challenge 20, Titan 200, Multicut 2020	JH-CS4168
Red Premium Cutting Stick for Challenge 20, Titan 200, Multicut 2020	JH-CS5910

Video

Transcript :

Challenge Titan 200 Programmable Guillotines - The Challenge Machinery Company, www.challengemachinery.com. The Titan 200 line of guillotine cutters bridges the gap for many digital and in-plant locations. Solid steel and aluminum construction serves as the foundation for consistent, accurate cutting. Floating backgauge fingers and a bright red LED cut indicator. Swift backgauge positioning and table slot closure device. Monitored knife safety latch inhibits blade drifting. The Titan 200 is available with either category 4 light-beam safety curtains or tilt-shield safety cover. The backgauge programmer for the Titan 200 is extremely powerful yet intuitive for novice operators. Engineered to provide years of dependable service, the Titan 200 is suited for the demands of today's digital or in-plant print providers. Speed, accuracy, and efficiency, the hydraulic cutter that gives you more. Over a century of providing assurance you made the right decision. Challenge Titan 200 Programmable Guillotines - The Challenge Machinery Company, www.challengemachinery.com.

Resources

Staff Review

Challenge Titan 200 Cutter With Light Beams Review

If your workplace is in need of an extremely durable electric paper cutter that's also safe to use, one machine to check out is the Challenge Titan 220. This is a hydraulic trimmer with a lot of special features you're really going to appreciate. Let's take a look at it....

The Titan 200 is ideal for very large documents because it can handle items that are up to 30 inches wide and 20 inches deep. You can also use it to cut smaller pieces of paper such as those that are legal- and letter-sized.
This device is outfitted with a false clamp plate that will affect how much paper you can cut at once. When the clamp is engaged, you can cut a minimum of 1.875" and when it's not, the smallest stack you can trim is 1/2". The clamp has a maximum opening of 3.25" so you'll be able to cut hundreds of sheets at once. The cutting capacity is mainly due to this machine's incredible 1.5-horsepower motor.
The Titan 200 is equipped with some terrific safety features. For one thing, it requires two-handed operation so your hands won't be near the blade when your paper is being cut. (A foot pedal is also included.) There is a plexiglass safety shield over the rear table and there's a mechanical safety latch for the blade. Finally, there's a light beam near the cutter's opening so you can keep your hands away from the blade.
In order to give you an accurate cut, the Titan 200 has an illuminated cutting line. This line will show you where your paper will be cut so you can make any adjustments before trimming it. This machine has a number of other great technologically advanced features such as a digital keypad, an LCD display screen, and a memory that can store up to 99 programs. Plus, you'll be alerted if there's something wrong with the device so you can fix it.
If there's one thing that's going to impress you about the Titan 200, it's how big it is. This machine measures 53" (height) x 36" (width) x 49.556" (length) and it's just under 800 pounds. Due to its size, you should make sure your workplace has enough room for it before you place an order.
The Titan 200 is American-made so you can feed good about purchasing it. It's also extremely durable thanks to its steel and cast-iron construction. Challenge has given this device a one-year warranty.

The Challenge Titan 200 is an excellent electric paper cutter and it would be perfect for busy workplaces. This machine offers a great cutting capacity, an illuminated cutting line, and enough features to keep you safe no matter how much paper you cut. You'll find that this trimmer is extremely durable and it's great that it's made in the United States. Just make sure you have enough room before you purchase this device as it's very large. If the size isn't an issue, be sure to take a look at the Titan 200 today.
