Product Description

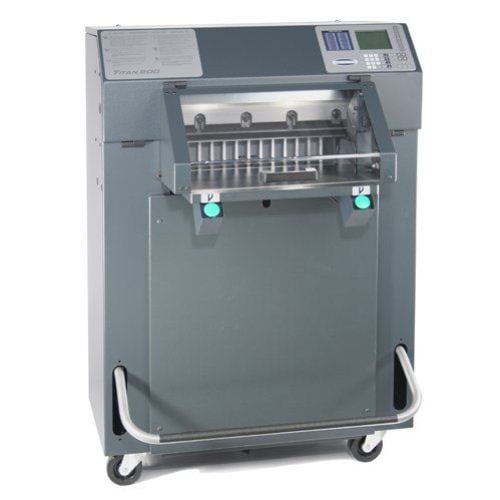

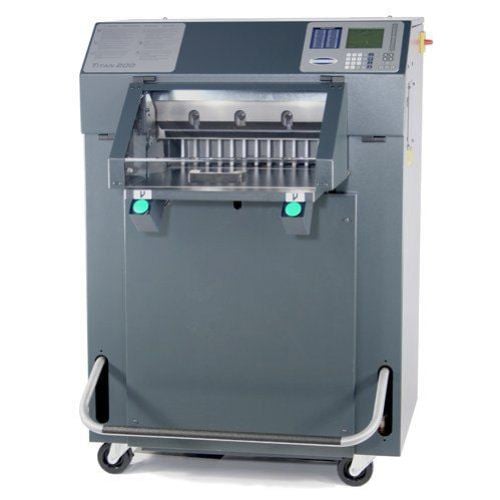

The Challenge 200 hydraulic programmable paper cutter is one of the highest quality 20 inch fully automatic paper cutters available anywhere. This model includes uses a flip down safety shield. However, the Titan 200 is also available with a light beam safety mechanism. This wonderful piece of equipment offers a user friendly menu-driven LCD screen and fully programmable backgauge control with 99 channels of memory. It allows you to enter cutting dimensions in fraction, decimal or in metric measurements. It also has a precise light line cut position indicator, table slot closure device as well as hydraulic cutting and clamping for precise cutting every time. The titan 200 also includes a wide variety of safety features making it one of the safest programmable paper cutters available on the market.
Product Details
- Key Benefits/Features:
- User-friendly menu-driven LCD screen, fully programmable backgauge control with 99 channels, 9,801 total cut memory
- Variable mode data entry (fraction, decimal, metric)
- Automatic fraction to decimal calculation
- Electronic Clamp Pressure Control - (programmable per cut with TC option)
- Maintenance free red LED cut line light
- Table slot closure device
- Hydraulic cutting & clamping - motor runs only during cutting cycle
- Rugged steel & cast iron construction
- Lockable heavy duty casters for portability
- Top of machine offers large 14.5" x 36"/36.8 cm x 91 cm) work surface
- 2-year Manufacturer's Warranty
- Safety/Features:
- UL/cUL listed and conforms to CE and ANSI B65.3 safety specifications
- Two-hand push button control of cutting cycle with timed, non-repeat device
- Cutting area protection - choice of light beam safety curtain or Plexiglas shield
- Independent mechanical foot pedal clamping
- Fully enclosed sheet metal rear table safety cover
- Optional ergo-touch cut buttons reduce operator fatigue
- Included:
- (2) high speed steel knives
- (3) plastic cutting sticks
- (1) jogging aid
- (1) manual
- (1) tool kit
- (1) knife change safety holder assembly
Specifications
- Cutting Width: 20”/508 mm
- Clamp Opening: 3-1/4”/83 mm
- Clamping Force:
- Minimum 1,250 lbs/563 daN
- Maximum 2,500 lbs/1,125 daN
- Min Cut (w/out false clamp plate): 1/2”/13 mm
- Min Cut (with false clamp plate: 1-7/8”/48 mm
- Table:
- In Front of Knife 15-1/4“/387 mm
- Behind Knife 20”/508 mm
- Table Height: 36”/914 mm
- Metal side tables (light beam only): 12.2”x8.2”/310x208mm
- Overall Width: 39-5/8”/1006 mm
- Overall Length: 50-7/8”/1293 mm
- Overall Height: 53”/1350 mm
- Will pass through door:
- (assembled) 39-3/4”/1010 mm
- (side tables, light beams, & power switch out) 36-1/4”/920 mm
- (table/treadle/light beams out) 29”/737 mm
- Net Weight (approx.): 800 lbs/363 kg
- Shipping Weight (approx.): 980 lbs/444 kg
- Electrical UL/CUL Listed & CE:
- 1 1/2 H.P., Single-Phase, AC, 60 Hz, 208/230 Volts, 12 Amps, Service size 15 Amps. Power cord included. Requires Receptacle Type: NEMA 6-15R or 6-20R.
Replacement Blades and Accessories
| Product Name | Item Number |
| Challenge 20 Multi 2020 Titan 200 Replacement Blade | JH-31780 |
| Challenge 20 Multi 2020 Titan 200 High Speed Steel Blade | JH-31780HSS |
| Premium 20" Cutting Stick for Challenge 20, Titan 200, Multicut 2020 | JH-CS4075 |
| Standard 20" Cutting Stick for Challenge 20, Titan 200, Multicut 2020 | JH-CS4168 |
| Red Premium Cutting Stick for Challenge 20, Titan 200, Multicut 2020 | JH-CS5910 |
